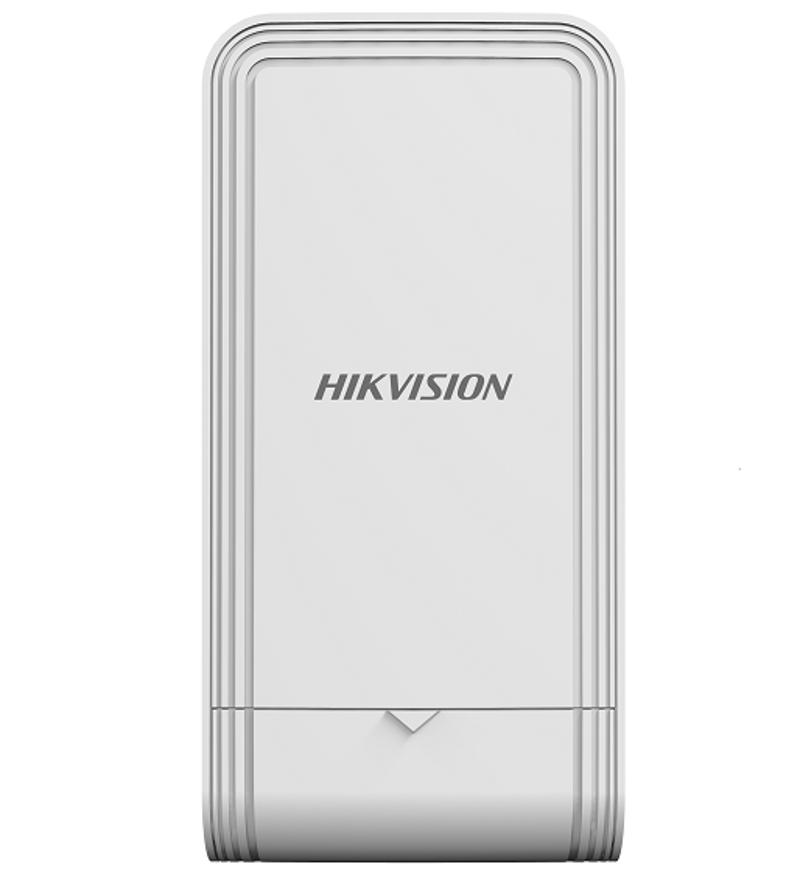

Hikvision 2.4Ghz 300Mbps 1KM Wireless Bridge DS-3WF1000S-EI-2N

Specifications

Product Dimensions (W × H × D): 90.8 mm × 187.87 mm × 57.87 mm (3.57” × 7.39” × 2.27”); Package Dimensions (W × H × D): 132 mm × 228 mm × 91 mm (5.19″ × 8.97″ × 3.58″); Net Weight: 0.26 kg (0.57 lb) per device; Gross Weight: 0.54 kg (1.19 lb); Packing List: Wireless Bridge × 1,Power Adapter (12 VDC, 1 A) × 1,10/100 Mbps PoE Injector × 1,Binding Tape × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1; Packing Method: Single unit packing; Working Temperature: -30 °C to 60 °C (-22 °F to 140 °F); Working Humidity: 5% to 95% (no condensation); Storage Temperature: -40 °C to 80 °C (-40 °F to 176 °F); Storage Humidity: 5% to 95% (no condensation); Installation Mode: Pole Mounting; Ingress Protection: IP55; Power Consumption: 1.8 W for typical (1-ch 2MP IPC), Max. 4.5 W; Max. Transmission Rate of Air Interface: ≤ 300 Mbps; Wireless Standard: IEEE 802.11b/g/n (2 × 2 MIMO 300 Mbps); Working Frequency Band: 2400 MHz ~ 2483.5 MHz; Antenna Gain: 7 dBi; Antenna Angle: (H) Beamwidth [3 dB] 60° (V) Beamwidth [3 dB] 50°; Transmitting Power: 22 dBm @11n MCS0 (Note: Transmitting power may vary with local regulations.); Receiving Sensitivity: -87±2 dBm @HT40 MCS0; Throughput Rate: PTP: ,90 Mbps/0.2 KM(HT40),90 Mbps/0.5 KM(HT40),70 Mbps/1 KM(HT40),PTMP(1 to 4): ,40 Mbps/1 KM(HT40); Network Interface: 2 × 10/100 Mbps RJ45 ports; LED Indicator: Power indicator,LAN indicator,Signal intensity indicator; Reset: Hardware resetting button; Power Supply: 12-24 VDC Passive PoE; Application Function: IFM,IPM; Channel Width: 10/20/40 MHz; Channel Selection: Auto/manual selection; Security Mode: WPA2-PSK; Security Mechanism: Wireless network name hidden; Network Protocol: NTP (network time synchronization),SADP (auto search for IP address), HTTPS/HTTP (web management),SSH (debugging); Management Method: HCP,Web,iVMS-4200,HPP; System Log: Syslog,Control center information; Upgrade: Web,iVMS-4200,HCP,HPP; HPP: Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
1. Reboot device
2. Restore device
3. Display the topology information
4. Display the connection status between AP and CPEs, including signal intensity, backgroud noise, sending & receiving rate
5. Configure wireless settings, including working mode, SSID, password, channel, channel bandwidth, transmitting power
6. Bridge alignment
7. Spectrum scanning; EMC: CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020); Safety: CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017); Chemistry: CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006); Radio: EN 301 893,EN 300 440,EN 62311,EN 301 489-3,EN 301 489-17
