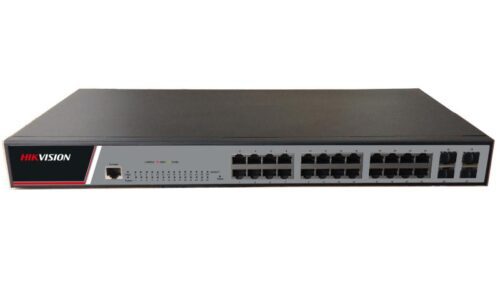

Hikvision 28 Port Core Switch DS-3E3728-H

Specifications

: ≤6.7 kg; Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F); Operating Humidity: 5% to 95% (no condensation); Ports: 24×10/100/1000BASE-T ports (including 8×combo interfaces), 4×10G/1G BASE-X SFP+ ports; Dimensions (mm): 440×360×43.6; Multicast: IGMP Snooping /MLD Snooping、Multicast VLAN; Switching Capacity: Whole-Device Performance: 598 Gbps
Port Performance: 128 Gbps; Packet Forwarding Rate: Whole-Device Performance: 444.91 Mpps
Port Performance: 95.23 Mpps; QoS: 802.1p DSCP remarking
Flexible queue scheduling algorithms based on ports and queues, including SP, WRR, WFQ and SP+WRR
Committed access rate (CAR)
Packet redirection
Port rate limit (receiving and transmitting); Link aggregation: 1G/10G/40G port aggregation
Static aggregation/Dynamic aggregation
Cross-device aggregation; VxLAN: VXLAN Layer 2 switching
VXLAN routing switching
VXLAN gateway; Ring network protocol: STP/RSTP/MSTP; Security: Hierarchical user management and password protection
Guest VLAN
802.1X authentication, centralized MAC authentication
RADIUS authentication
MAC address learning limit
Port isolation
IP Source guard
Dynamic ARP inspection, preventing man-in-the-middle attacks and ARP DoS attacks
IP/Port/MAC binding; Management maintenance: Configuration through CLI, Telnet, and console port
Ping, Tracert
Loading and upgrading through XModem/FTP/TFTP
SNMPv1/v2/v3 and Web-based NMS
Remote monitoring (RMON ) alarm, event, and history recording
NTP; ACL: Packet filtering at L2～L4 Traffic classification based on source MAC addresses, destination MAC addresses, source IPv4/IPv6 addresses
Time range-based ACL
VLAN-based ACL
Bidirectional ACL; VLAN: Port-based VLAN
MAC-based VLAN
Protocol-based VLAN
QinQ and selective QinQ; Port Mirroring: Port mirroring
RSPAN
Traffic mirroring; Routing Feature: Static routing
RIPv1/v2 and RIPng
OSPFv1/v2/v3
BGP and BGP4+ for IPv6; Power Input: AC：100V～240V AC，50/60Hz
DC： -48V～-60V DC; Power Consumption: Single AC input: 87 W
Dual AC inputs: 91 W
Single DC input: 88 W
Dual DC inputs: 95 W
