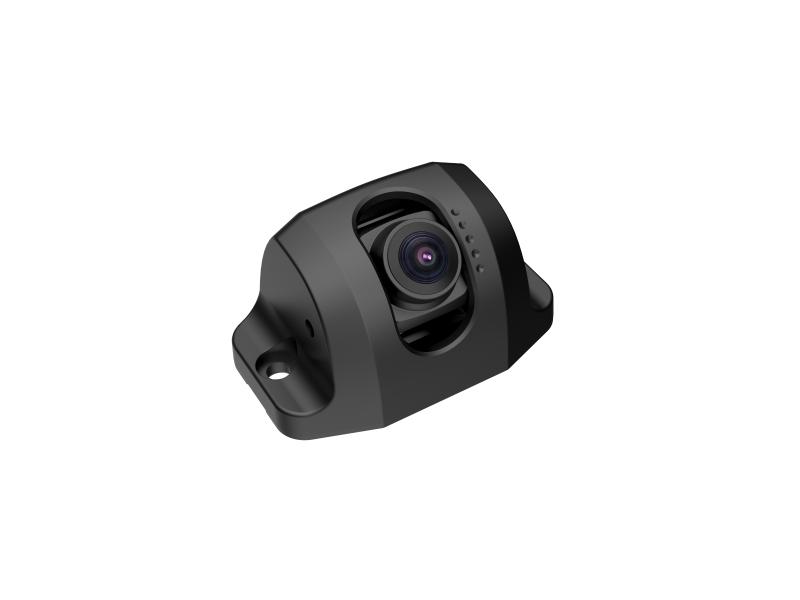

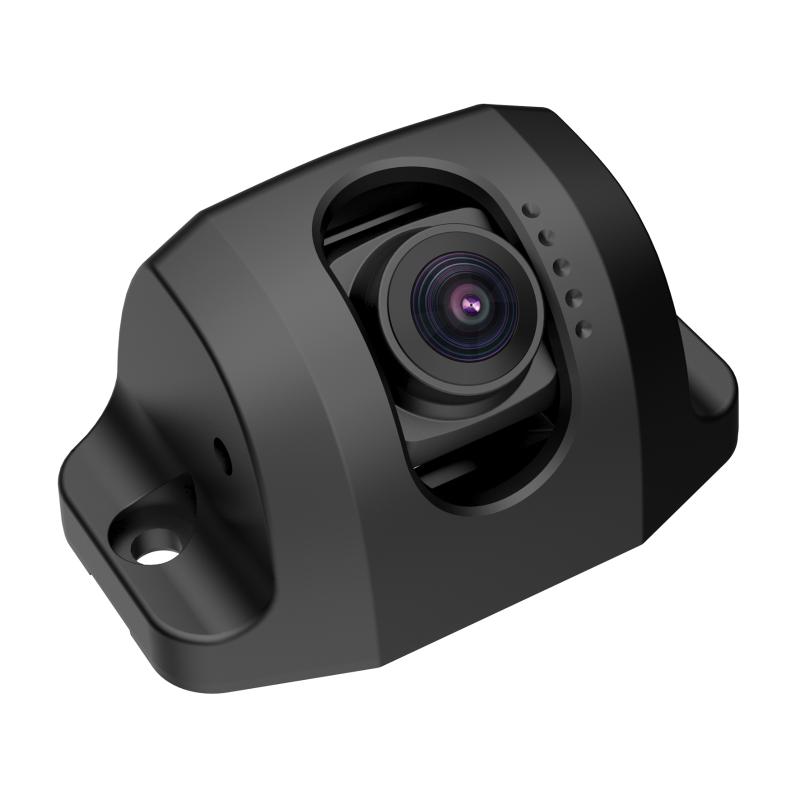

Hikvision 2MP BSD Camera AE-VC236T

Specifications

Min. Illumination: 0.01 Lux @ (F1.2, AGC ON); Image Sensor: 1/2.8″ Progressive Scan CMOS; Case Type: Square camera; Resolution: 1920×1080; Shutter Speed: 1/25 s to 1/30, 000 s; Day & Night: Color; Focal Length & FOV: Wide Angle: 1mm, horizontal: 202°(±5°), vertical: 123°(±5°); Lens Type: Fixed focal lens, 1 mm; Lens Mount: M12; Frame Rate: Default 1080P@30 fps, 1080P@25 fps customizable; Built-in Mic: Not Supported; Built-in Speaker: Not Supported; Wide Dynamic Range (WDR): 96 dB; SNR: 42 dB; Video Output: 1-way coaxial HD, conforming to HDTVI; Interface Type: 1 Vpp Composite Output (aviation plug)
A pin sequence:
1: power, 2: ground, 3: NA, 4: video
B pin sequence:
1: video, 2: NA, 3: power, 4: ground; Power Supply: 9 to 16 V DC; Power Consumption: Max. 1.2W; Camera Material: Metal; Product Dimension: 74.8 mm × 48.2 mm × 41.7 mm (2.9″ × 1.9″ × 1.7″)
Note: with rubber cushion, the height is 43.7 mm (1.7″); Product Weight: Approx. 129 g (0.3 lb.); Startup and Operating Conditions: -40 °C to 75 °C (-40 °F to 167 °F), Humidity 90% or less (non-condensing); Cable Length: 480±50 mm (without connector); Protection: IP68(IEC 60529-2013), IK10(IEC 62262:2002), IP69K(ISO 20653:2013)
