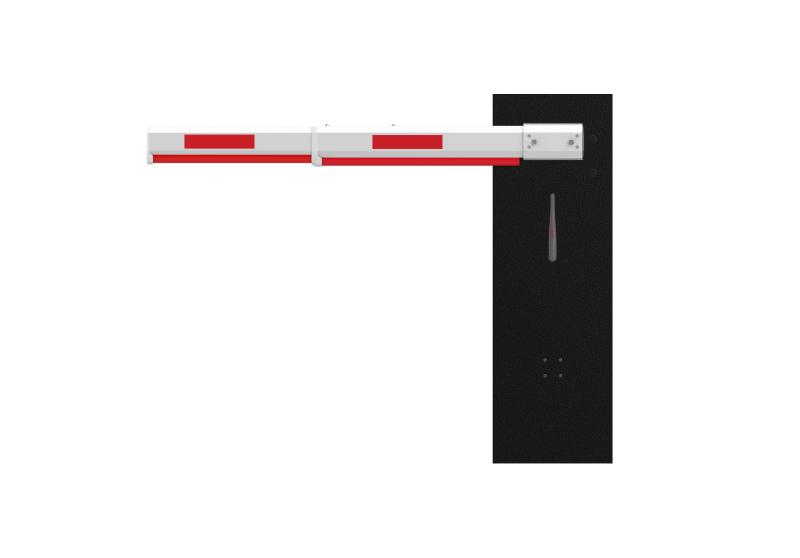

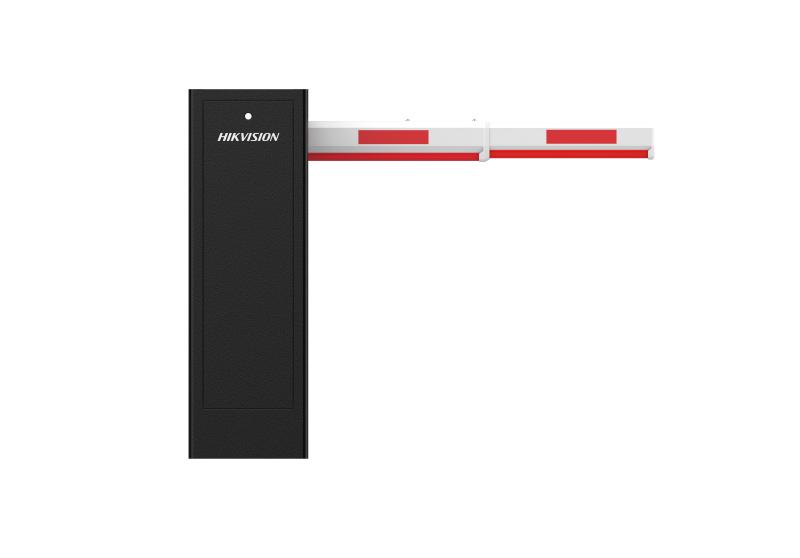

Hikvision 30 Series Straight Pole Barrier Gate DS-TMG300-D

Specifications

Barrier Housing Dimensions
(L × W × H): 325 × 220 × 1000 mm (12.8 × 8.67 × 39.37 inch); Body Weight: 26 ± 0.2 kg (57.32 ± lb.); Body Dimensions (with Package, Without Boom Pole)
(L × W × H): 385 × 305 × 1060 mm (15.16 × 12 × 41.73 inch); Body Weight (with Package, Without Boom Pole): 29.1 ± 0.2 kg (64.15 ± 0.44 lb.); Barrier Housing Material: Cold-rolled sheet; Barrier Housing Thickness: 1.2 mm; Barrier Housing Door Thickness: 1.0 mm; Barrier Housing Color: Black background with sliver pattern; Barrier Housing Door Color: Black background with sliver pattern; Boom Pole Installation Height: 880 mm; Body Indicators: None; Rising/Falling Speed: 3m :
Rising Speed: 3 S
Falling Speed: 3 S
2.5m-4.5m telescopic pole :
Rising Speed: 3 S
Falling Speed: 3 S
3.4m-6m telescopic pole :
Rising Speed: 6 S
Falling Speed: 6 S; Boom Pole Direction: Left/Right; Motor Type: DC brushless motor; Matched Boom Pole Type: Octagonal boom pole; Boom Pole Falling Delay: 1 to 99 s; Number of Cycles: 2,500,000; Consumption: 100 W; Temperature and Humidity: Humidity: ≤ 90%,Temperature: -30 °C to 80 °C (-22 °F to 176 °F); Rising Boom Pole for Poweroff: Optional; Duty Cycle: 100%; RS-485: Optional; Rising to Limit: 1 group; Falling to Limit: 1 group; Open: 1 group; Close: 1 group; Stop: 1 group; IR/Vehicle Detector/Radar: 1 group; Traffic Signal Light: 1 group; Boom Pole Color: White background with red bar; Boom Pole Weight: 4.5 m telescopic boom pole: 4.8 ± 0.2 kg
6 m telescopic boom pole: 6.5 ± 0.2 kg; Boom Pole Dimensions (with Package): 4.5 m telescopic boom pole: 115 × 47 × 2530 mm (H×W×L)
6 m telescopic boom pole: 115 × 47 × 3435 mm (H×W×L); Boom Pole Weight (with Package): 4.5 m telescopic boom pole: 5.4 ± 0.2 kg
6 m telescopic boom pole: 7.1 ± 0.2 kg; Boom Pole Dimensions: X × 44 × 110 mm (H×W×L); Boom Pole Material: 6063; Protection: IP54; Power Supply: 110-240VAC ( default 220V，Switchable )
