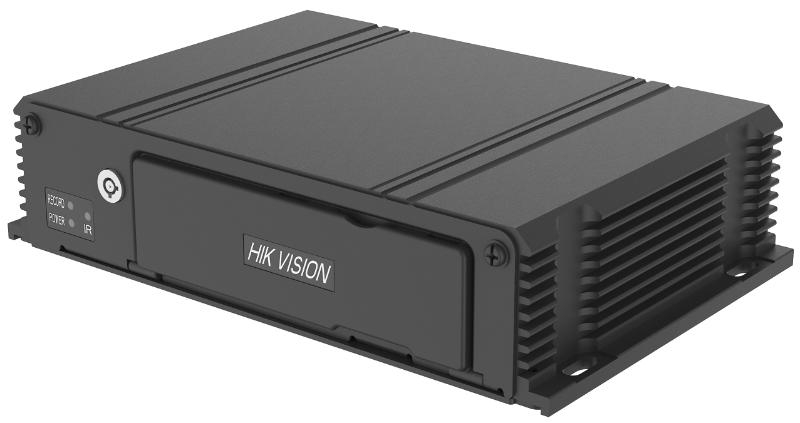

Hikvision 4-ch , H.264/H.265, 2 x SD Card Mobile DVR AE-MD5043-SD

Specifications

Analog Camera: 4-ch HIK wiring sequence analog camera, Max. 1080P; Audio Input: Support up to 3 channels of camera audio (channel 2~4) and 1 channel of two-way audio; Two-way Audio: 1, integrated in EXT.DEV interface; Audio Output: 1; Video Output: Main output: 1, integrated in EXT.DEV interface; Video Compression: H.265/H.264; Audio Compression: G.711a/G.711u/G.722.1/G.726; Audio Bit Rate: 16 Kbps; Stream Type: Video, video & audio; Dual Stream: Supported; Frame Rate: PAL: 1 to 25fps@1080P; NTSC: 1 to 30 fps@1080P;
PAL: 1 to 25 fps@720P; NTSC: 1 to 30 fps@720P;; Encoding Resolution: Main stream: 1080P/720P/WD1/4CIF
Sub-stream: 720P/WD1/4CIF/2CIF/CIF; Wi-Fi: WI module: 1 ×FAKRA antenna
WI58 module：1 ×FAKRA antenna,1 × wifi SMA antenna
WIFI Mode：WEP,WPA-personal, WPA2-personal,None; 3G/4G Dialing: 1 × 4G card slot, 1 × FAKRA antenna; SD Card Storage: 2 × SD card slots, each up to 512 GB; Network Interface: Rear panel: 1 ×10M/100M RJ45; Alarm Input: 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input; Alarm Output: 2 relay signal outputs; Sensor-in: 4 high/low level signal inputs; Serial Port: 1 × RS-232, 1 × RS-485 (integrated in EXT.DEV interface); USB Interface: Front panel: 1 × USB 2.0; GNSS (Global Navigation Satellite System): GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna; G-Sensor: Built-in; Advanced Driving Assistance System (ADAS): Supports detection and alerts for FCW/LDW/SLW/HMW/PCW/TSR; Driving Status Monitoring (DSM): Support detection and warning for distraction/fatigue/calling/smoking/unfastened seat belt/yawning/leaving post/IR-blocking sunglasses/occlusion detection. Supports A-pillar algorithm and formal attire algorithm switching, as well as left-hand drive and right-hand drive switching.; Blind Spot Detection (Right): Supports right blind spot detection and alerts; Driver Identification: Supports driver modeling, driver detection & comparison, driver change alerts, abnormal identity detection & reporting, and attendance tracking; Product Dimension: 184 mm × 134.4 mm × 44 mm (7.2″ × 5.29″ × 1.73″); Power Supply: +9 to +36VDC; Power Consumption: Standby: ≤ 0.5 W
Full load: ≤ 45 W
Note: Without peripheral and storage media ≤ 20 W; Operating Temperature: -25 °C to +70 °C (-13 °F to +158°F); Operating Humidity: 10% to 95% (non-condensing); Operation Method: Mouse, IR remote control, Web control, and touchscreen; Package Dimension: 250 mm ×210 mm × 160 mm (9.84″ × 8.27″ ×6.30″); With Package Weight: Without Storage Media:1.38 kg (3.05 lb.); Weight (Without Storage Media): 0.65 kg (1.43 lb.); EMC: FCC (47 CFR Part 15, Subpart B);CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014); Safety: CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020); Environment: CE-RoHS (2011/65/EU and amendment 2015/863/EU); Automotive and Railway: EN50155((EN 50155:2021 clause 13, EN 50121-3-2:2016+A1:2019, EN45545-2:2020; EN50153:2014+A1:2017+A2:2020; EN ISO:13732-1:2008;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
