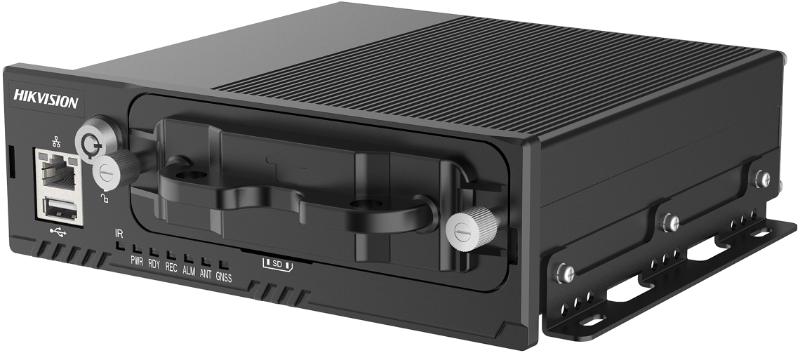

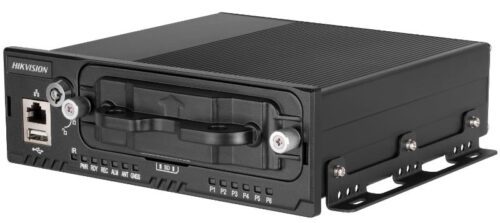

Hikvision 4-ch , H.264/H.265, 2xHDD/SSD Mobile DVR AE-MD5043(1T)

Specifications

Analog Camera: 4-ch HIK wiring sequence analog camera, Max. 1080P; Two-way Audio: 1, integrated in EXT.DEV interface; Audio Output: 1; Video Output: Main output: 1, integrated in EXT.DEV interface; Video Compression: H.265/H.264; Audio Compression: G.711a/G.711u/G.722.1/G.726; Audio Bit Rate: 16 Kbps; Stream Type: Video, video & audio; Dual Stream: Supported; Frame Rate: PAL: 1 to 25 fps; NTSC: 1 to 30 fps; Encoding Resolution: Main stream: 1080P/720P/WD1/4CIF
Sub-stream: 720P/WD1/4CIF/2CIF/CIF; Wi-Fi: WI58 model: 2 × 5.8 G Wi-Fi SMA antenna
(Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC module.); 3G/4G Dialing: 1 × 4G card slot, 1 ×FAKRA antenna
5G module(optional); SD Card Storage: 1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）; HDD/SDD: 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
HDD/SSD data can be exported locally via this converter (optional)
Hard Disk Case with heating function (optional); Network Interface: Front panel :1 ×10M/100M RJ45
Rear panel: 1 × 10M/100M 6-pin aviation connector
Note：The front and rear network ports are at different network segments and the 6-pin aviation network cable female head to RJ45 is optional.; Alarm Input: 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input; Alarm Output: 2 relay signal outputs; Sensor-in: 4 high/low level signal inputs; Serial Port: 2 × RS-232(harness is optional), 1 × RS-422 (integrated in EXT.DEV interface); USB Interface: Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0 (5-pin aviation connector); GNSS (Global Navigation Satellite System): GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna; G-Sensor: Built-in; Advanced Driving Assistance System (ADAS): Supports detection and alerts for FCW/LDW/SLW/HMW/PCW/TSR; Driving Status Monitoring (DSM): Supports detection and alerts for distraction/fatigue/calling/smoking/unfastened seat belt/yawning/absence from post/IR-blocking sunglasses/occlusion, with switchable A-pillar algorithm and formal attire algorithm; Blind Spot Detection (Right): Supports right blind spot detection and alerts; driver identification: Supports driver modeling, driver detection & comparison, driver change alerts, abnormal identity detection & reporting, and attendance tracking; Power Supply: +9 to +36 VDC; Product Dimension: 206 mm × 225.4 mm × 60.1 mm (8.1″ × 8.87″ × 2.37″); Power Consumption: Standby: ≤ 0.5 W
Full load: ≤ 45 W
Note: Without peripheral and storage media ≤ 20 W; Operating Temperature: -25 °C to +70 °C (-13 °F to +158°F); Operating Humidity: 10% to 95% (non-condensing); Operation Method: Mouse, IR remote control, Web control, and touchscreen; Weight (Without Storage Media): 1.7 kg (3.75 lb.); EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 50498: 2010); CE-EMC (EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019); Safety: CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020); Environment: CE-RoHS (2011/65/EU and amendment 2015/863/EU); Automotive and Railway: EN50155(EN 50155:2017 clause 13, EN 50121-3-2:2016+A1:2019, EN50153:2014+A1:2017+A2:2020; BS EN ISO:13732-1:2008;EN61373:2010); EN45545 (EN 45545-2:2020 hl3); E-MARK (ECE R10)
