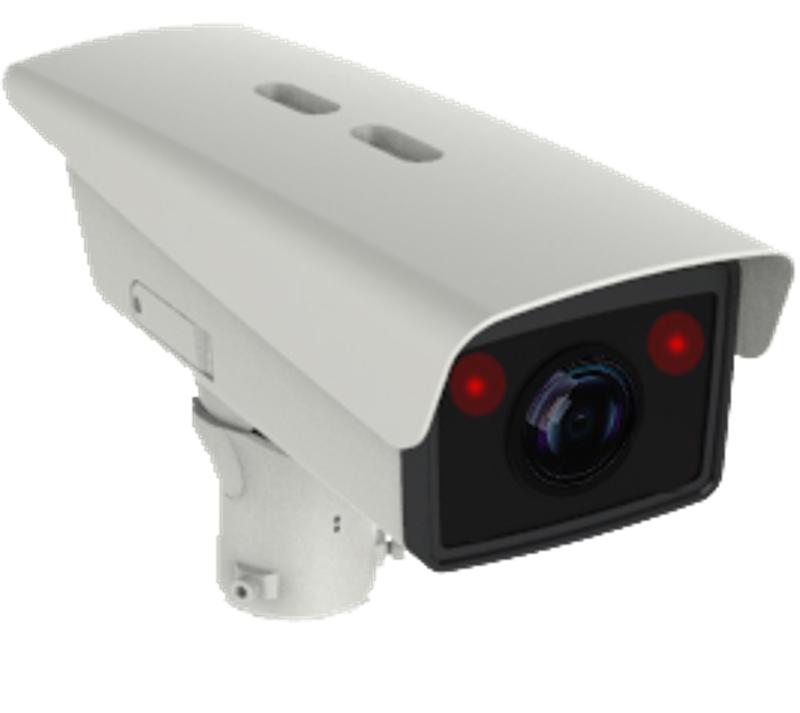

Hikvision 4MP ANPR Intelligent Entrance Video Unit DS-TCG405-E/H

Specifications

Aperture: 2.8 to 12 mm: F1.2 to F2.5; Focal Length & FoV: 2.8 to 12 mm, horizontal FoV: 113.5° to 39°, vertical FoV: 58.4° to 22.7°, diagonal FoV: 141.3° to 44.3°; Focus: Auto,Vari-focal lens, motor-driven lens; Supplement Light Type: IR Light, Warm White Light; Supplement Light Range: Video:
2.8 mm to 12 mm: 20 m
Vehicle License Plate:
2.8 mm to 12 mm: 10 m; IR Wavelength: Warm White Light 3000 K, IR Light 850 nm; Trigger Type: Video Detection, I/O Coil, Radar Mixed Traffic; Picture Type: Scene Picture, Scene Picture + Close-up Picture; Scene Mode: Entrance & Exit Toll Gate, Underground Parking Entrance & Exit; Capture Type: Strobe Light Mode; Image Format: JPEG; Capture Resolution: 2688 × 1520; License Plate Recognition: Forward, Backward, Bidirection; LED Control: Supports automatic light control/time control of LEDs; Smart Recognition: ANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition; Capture Picture Overlay: Location, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type; WDR: 140 dB; Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480); Image Settings: Saturation: 0 to 100
Brightness: 0 to 100
Contrast: 0 to 100
Gain: 0 to 100
3D DNR: Off, Normal, and Expert modes are selectable.
White balance: White Balance 1 and White Balance 2 are selectable.; Image Parameters Switch: Yes; WDR Switch: On, Time, Brightness; Frame Rate: 25 fps (P)/30 fps (N); Barrier Gate Control Mode: By Camera/Platform/Mixed; Keep Boom Pole Open for Following Vehicle: Enable/Disable; Lock Barrier Gate for Large-Sized Vehicle: Yes; Relay Output: 2-ch relay output, supporting opening and closing of barrier gates; Barrier Gate Status: None, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place; Allowlist and Blocklist: Up to 100,000 allowlist and blocklist totally
Note: Only when the TF card is available, can the function take effect.; ROI: 8 regions respectively for main stream and sub-stream, 6 levels for each region.; Video Compression: Main stream: H.265/H.264/MJPEG,
Sub-stream: H.265/H.264/MJPEG,; H.264 Type: Low profile
Medium profile
High Profile; Video Bit Rate: 32 Kbps to 16 Mbps; Bit Rate Type: Constant, Variable; Scalable Video Coding (SVC): H.265 and H.264 encoding; Network Storage: NAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Protocol: TCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket; API: Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform; Client: Hik-Central,SDKdemo,PMS; Web Browser: Plug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+; Security: Password protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2; Audio: 1 input (line in), 1 output (line out); Communication Mode: 1 RJ45 10M/100M Ethernet port; Alarm Input: 3-ch triggered inputs; Alarm Output: 1-ch alarm output; Wiegand: Not support; RS-232: 1-ch RS-485 serial port; RS-485: 1-ch RS-232 serial port; Network Interface: 1 RJ45 10M/100M self-adaptive Ethernet port; Memory Card Slot: 1 TF card slot, up to 1 TB; Sensor Type: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.0005Lux@(F1.47, AGC ON)
B/W: 0.0001Lux@(F1.47, AGC ON); Shutter: 1/30 s to 1/100,000 s; Day/Night Switch: Supported; IR Cut Filter: IR cut filter
Blue glass module to reduce ghost phenomenon; LPR Accuracy: Capture rate > 98%
Vehicle moving direction recognition accuracy > 98.5%
LPR accuracy > 98%
Mistaken capture rate < 2% European: LPR accuracy > 98%
Country/Region recognition accuracy > 95%; Vehicle Type Recognition: Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle; Vehicle Color: Red, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black; Vehicle Brand: 84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO; ANPR Supported Country/Region: Middle East:
The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain
Africa:
Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria
Asia-Pacific:
Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka
America:
Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala
Europe:
Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina
Central Asia & Transcaucasia:
Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan; EMC: CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014);
KC (KN 32: 2015, KN 35: 2015); Security: CB (IEC 62368-1: 2014 + A11);
CE-LVD (EN 62368-1: 2014/A11: 2017);
BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005);; Environment: CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006); Protection: IK10 (IEC 62262: 2002), IP67 (IEC 60529-2013); Working Temperature & Humidity: -25°C to 70°C (-13°F to 158°F)
90% or less (non-condensing); Power Supply: 12 VDC/PoE (802.3at, 44 V to 57 V), 220 VAC; Working Consumption: 10 W Max.; Dimensions: 415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch); : 3.25 kg (7.17 lb.); Weight (with Package): 4.3 kg (9.48 lb.); Dimensions (with Package): 480 × 435 × 205 mm (18.90× 17.13 × 8.07 inch); Storage Conditions: Temperature: -20 °C to 70 °C (- 4°F to 158 °F)
Humidity: 95% (non-condensing); Startup and Operating Conditions: Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity: 95% (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
