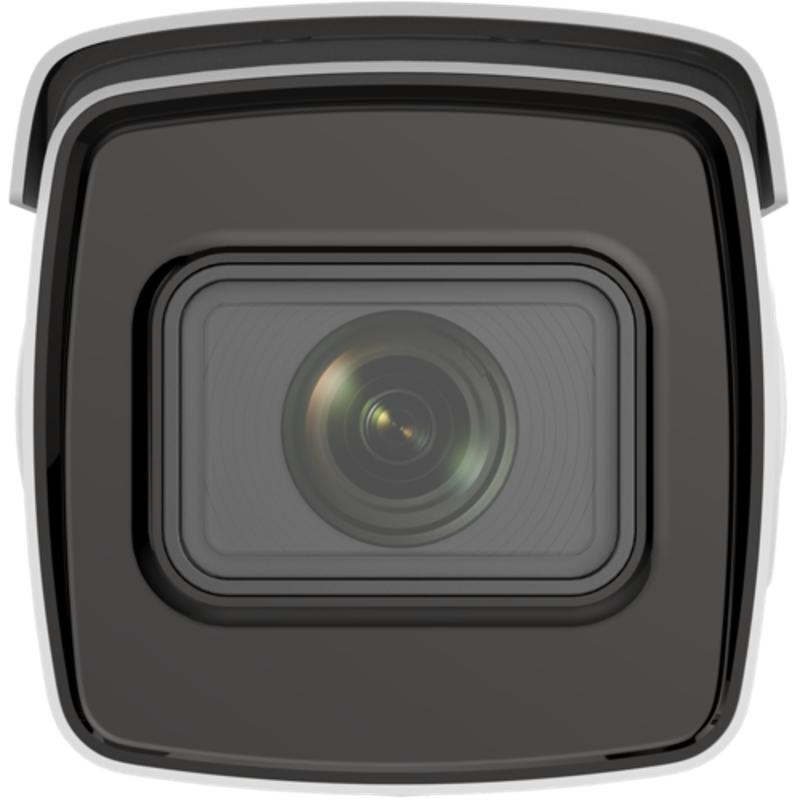

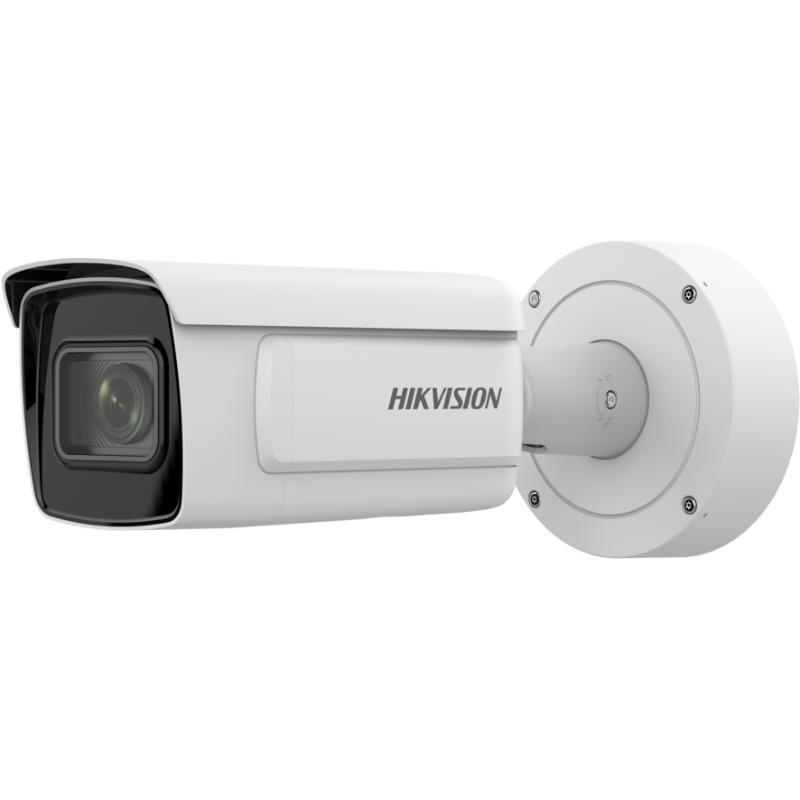

Hikvision 4MP DeepinView Ultra Low Temperature Moto Varifocal Bullet Network Camera

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 2688 × 1520; Min. Illumination: Color: 0.0036 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR; Shutter Time: 1 s to 1/100,000 s; Day & Night: IR cut filter; Angle Adjustment: Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°; Lens Type: Motorized lens, 2.8 to 12 mm; Focal Length & FOV: 2.8 to 12 mm, horizontal FOV 110° to 46.2°, vertical FOV 59.6° to 26.2°, diagonal FOV 130° to 53°; Focus: Auto,Semi-auto,Manual; Aperture: F1.9; Lens Mount: Integrated; Supplement Light Type: IR; Supplement Light Range: Up to 50 m; Smart Supplement Light: Yes; IR Wavelength: 850 nm; Model Specification: Up to 1 model,
Model type: detection model, classification model, mixed model (detection model and classification model); Main Stream: 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Third Stream: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480); Fourth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Fifth Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Video Compression: Main stream: H.265+/H.265/H.264+/H.264,
Sub-stream/third stream/fourth stream/fifth stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Baseline Profile,Main Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region of Interest (ROI): 8 fixed regions for each stream; Target Cropping: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS; API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK; Simultaneous Live View: Up to 20 channels; Smooth Streaming: Yes; User/Host: Up to 32 users.
3 user levels: administrator, operator and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2; Network Storage: NAS (NFS, SMB/CIFS),ANR,
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.; Client: iVMS-4200, Hik-Connect, Hik-Central; Web Browser: Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+; Image Parameters Switch: Yes; Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule,Alarm Trigger; Wide Dynamic Range (WDR): 140 dB; Image Enhancement: BLC,HLC,3D DNR,Distortion Correction,Defog; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format; Video Output: 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging); On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; Basic Event: Motion detection,video tampering alarm,exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error); Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection,scene change detection,defocus detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture; Power: 12 VDC ± 10%, 4.28 A, max. 51.4 W,three-core terminal block,reverse polarity protection; Material: Metal; Dimension: Ø140 mm × 367.8 mm (Ø5.51″ × 14.48″); Package Dimension: 405 mm × 190 mm × 180 mm (15.9″ × 7.5″ × 7.1″); : Approx. 1.82 kg (4.01 lb.); With Package Weight: Approx. 2.94 kg (6.48 lb.); Storage Conditions: -30 °C to 65 °C (-22 °F to 149 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -60 °C to 60 °C (-76 °F to 140 °F). Humidity 95% or less (non-condensing); Heater: Yes; Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Heartbeat, mirror, flash log, password reset via e-mail, pixel counter, anti-banding; Demist: Yes; EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7; Safety: CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013,
IK10: IEC 62262:2002 (excluding glass window)
