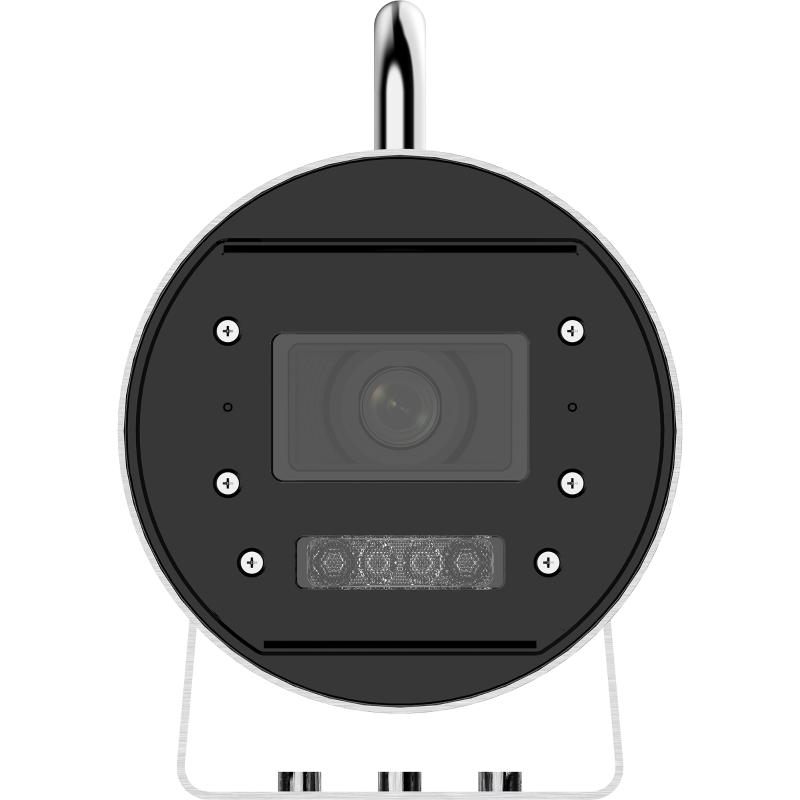

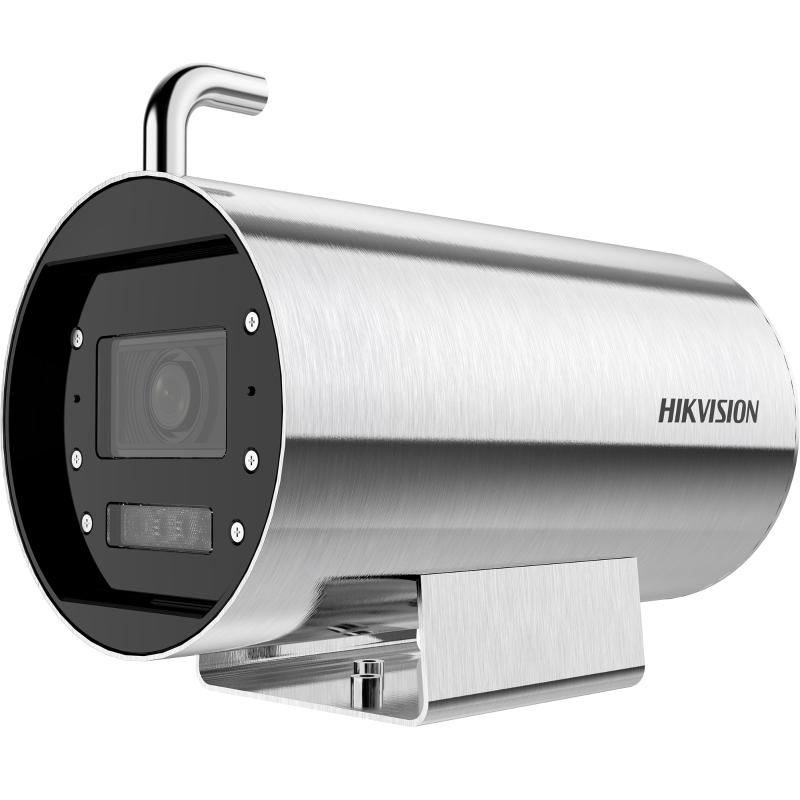

Hikvision 4MP High Temperature Camera

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 2560 × 1440; Min. Illumination: Color: 0.0005 Lux @ (F1.2, AGC ON),0 Lux with light; Shutter Time: 1 s to 1/100,000 s; Focal Length & FOV: 2.8 mm, horizontal FOV 114°, vertical FOV 58°, diagonal FOV 142.6°
4 mm, horizontal FOV 91.1°, vertical FOV 47.9°, diagonal FOV 108.1°; Lens Mount: M16; Iris Type: Fixed; Aperture: F1.8; DORI: 2.8 mm: D: 58.8 m, O: 23.3 m, R: 11.8 m, I: 5.9 m
4 mm: D: 69.7 m, O: 27.6 m, R: 13.9 m, I: 7.0 m; Supplement Light Type: White Light; Supplement Light Range: Up to 10 m; Smart Supplement Light: Yes; Main Stream: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720); Sub-Stream: 50 Hz: 25 fps (704 × 576, 640 × 480)
60 Hz: 30 fps (704 × 480, 640 × 480); Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); Video Compression: Main stream: H.265/H.264,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264; Video Bit Rate: 32 Kbps to 8 Mbps; H.264 Type: Main Profile,Baseline Profile,High Profile; H.265 Type: Main Profile; Bit Rate Control: CBR,VBR; Scalable Video Coding (SVC): H.264 encoding,H.265 encoding; Region of Interest (ROI): 5 fixed regions for main stream; Target Cropping: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, SSL/TLS, WebSocket, WebSockets, Bonjour; Simultaneous Live View: Up to 20 channels; API: ISAPI,SDK,ISUP; User/Host: Up to 32 users
3 user levels: administrator, operator, and user; Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2; Network Storage: NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR); Client: iVMS-4200,Hik-Connect; Web Browser: Plug-in required live view: IE 11,
Plug-in free live view: Safari 12+,
Local service: Chrome 57.0+, Firefox 52.0+,
Not recommended: Safari11+, Edge; Image Parameters Switch: Yes; Image Settings: Saturation,brightness,contrast,sharpness,AGC,white balance,adjustable by client software or web browser; Day/Night Switch: Day,Night,Auto,Schedule; Wide Dynamic Range (WDR): 120 dB; SNR: ≥ 50 dB; Image Enhancement: BLC,HLC; Privacy Mask: Yes; Picture Overlay: Yes; Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port; RS-485: 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive); Reset Key: Yes; Indicator: Yes; Basic Event: Motion detection,network disconnected,IP address conflict,illegal login,HDD full,HDD error,video quality diagnosis; Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection,defocus detection, unattended baggage detection,object removal detection; Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,white light flashing; Power: 12 VDC ± 20%, 1.5 A, max. 18 W; Dimension: 138.2 mm × 90.2 mm × 90.5 mm (5.44″ × 3.55″ × 3.56″); Package Dimension: 235 mm × 120 mm × 125 mm (9.25″ × 4.72″ × 4.92″); : Approx. 1.005 kg (2.216 lb.); With Package Weight: Approx. 1.220 kg (2.69 lb.); Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing); Startup and Operating Conditions: -10 °C to 85 °C (14 °F to 185 °F). Humidity 95% or less (non-condensing); Language: 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian; General Function: Heartbeat,pixel counter,password protection; EMC: CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; Safety: CB: IEC 62368-1: 2014+A11,
CE-LVD: EN 62368-1: 2014/A11: 2017; Environment: CE-RoHS: 2011/65/EU,
WEEE: 2012/19/EU,
Reach: Regulation (EC) No 1907/2006; Protection: IP67: IEC 60529-2013
