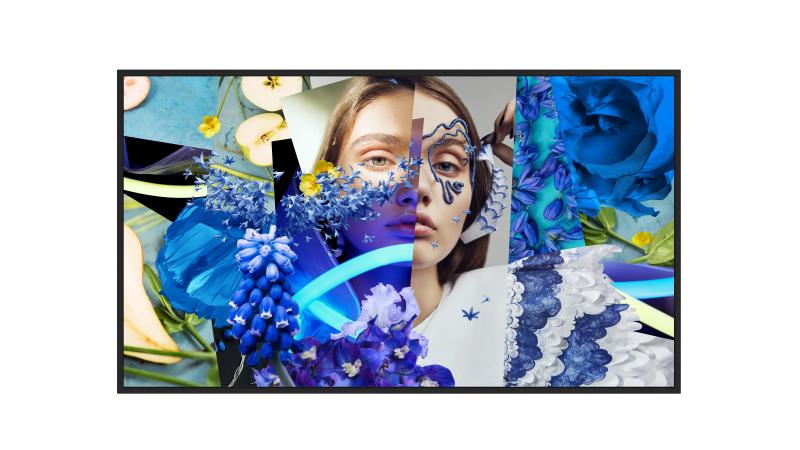

Hikvision 65-inch Slim Digital Signage DS-D6065UN-DP

Hikvision DS-D6065UN-DP 65-inch 4K ultra-narrow bezel splicing screen. Seamless video wall display for various applications.

SKU: DS-D6065UN-DP Category: Brand:
Guaranteed Safe Checkout

The Hikvision DS-D6065UN-DP is a 65-inch ultra-narrow bezel splicing screen. It is designed for seamless video wall display, with a super-narrow bezel that minimizes the gap between screens. The screen features a 4K resolution and a wide viewing angle, making it an ideal solution for a variety of applications, including retail, transportation, and corporate environments.

Specifications

Product Model: DS-D6065UN-DP; Screen Size: 65 inch; Resolution: 3840 Ɨ 2160; Active Display Area: 1428.48 (H) mm Ɨ 803.52 (V) mm; Pixel Pitch: 0.124(H) mm Ɨ 0.372 (V) mm; Backlight: E-LED; Viewing Angle: 178°(H)/178°(V); Brightness: 500 cd/m²; Contrast Ratio: 5000:1; Color Depth: 10 bit (8 bit + FRC); Response Time: 8 ms; Color Gamut: 85% NTSC; Reliability: 7 Ɨ 24 h; Refresh Rate: 60 Hz; Haze: 25%; Operation System: Android 13; Processor: Cortex-A55, 4-core, main frequency 1.92 GHz; Memory: 4 GB; Built-in Storage: 32 GB EMMC; Video & Audio Input: HDMI Ɨ 3, DP Ɨ 1; Video & Audio Output: LINE OUT Ɨ 1, speaker (6Ī© 10 W) Ɨ 2; Network Interface: RJ45 Ɨ 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) Ɨ 1, RS232 in Ɨ 1, RS232 out Ɨ 1; Data Transmission Interface: USB 2.0 Ɨ 1, USB 3.0 Ɨ 1, BT 5.0 Ɨ 1; Input Voltage: 100 to 240 VAC, 50/60 Hz; Standby Consumption: ≤ 0.5 W; Power Consumption: 90W(typ), 150W(max); Working Temperature: 0 ā„ƒ to 40 ā„ƒ (32 ℉ to 104 ℉); Working Humidity: 10% to 80% RH (Condensation); Storage Temperature: -20 ā„ƒ to 60 ā„ƒ (-4 ℉ to 140 ℉); Storage Humidity: 10% to 90% RH (Condensation); Material Type: DAT, VOB, TS, AVI, MKV, MOV, 3GP, FLV, ASF, MP3, WMA, OGG, JPG, BMP, PNG; Mounting Type: Wall mounting (horizontally or vertically); Product Dimensions (W Ɨ H Ɨ D): 1459.2mm Ɨ 837.1mm Ɨ 38.9 mm (without wall-mounted backboard)
1459.2mm Ɨ 837.1mm Ɨ 68.9 mm (with wall-mounted backboard); Package Dimensions (W Ɨ H Ɨ D): 1640 mm Ɨ 990 mm Ɨ 164 mm; Net Weight: 25.3 kg; Gross Weight: 35.2 kg; Packing List: Digital signage Ɨ 1, wall-mounted backboard (including package of mounting bolts) Ɨ 1, power cord for europe Ɨ 1, RS232 cable Ɨ 1, remote control Ɨ 1, user manual Ɨ 1 , quick start guide Ɨ 1, Regulatory Compliance and Safety Information Ɨ 1, logo stickers Ɨ 1, energy efficiency label Ɨ 1

DataSheet

Click Here for the DataSheet
