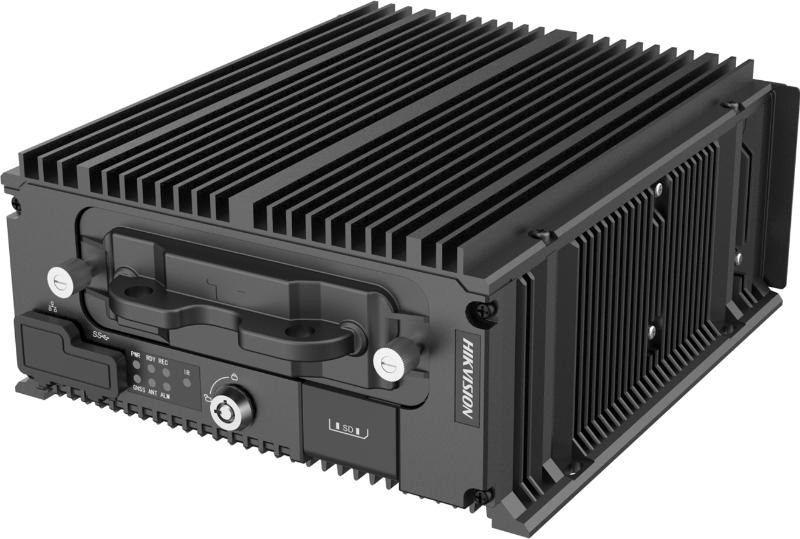

Hikvision AE-MN7083(M12) AE-MN7083(1T)(M12)

Specifications

Two-way Audio: 1, integrated in EXT.DEV interface; IP Camera: 8-ch connected via PoE interfaces; Audio Output: 1, integrated in EXT.DEV interface; Video Output: Main output: 1, integrated in EXT.DEV interface. VGA: 1; Video Compression: H.265,H.264; Audio Compression: G.711a/G.711u/G.722.1/G.726; Audio Bit Rate: 16 Kbps to 64Kbps; Stream Type: Video, video & audio; Dual Stream: Supported; Frame Rate: PAL: 1 to 25 fps; NTSC: 1 to 30 fps; Encoding Resolution: Main stream: 1080P/720P/WD1/4CIF
Sub-stream: 720P/WD1/4CIF/2CIF/CIF; Dial-up: 1 × 4G card slot, 1 ×FAKRA antenna
5G module(optional); SD Card Storage: 1 × SD card, up to 512 GB（not for baseline. Note the SD card capacity when ordering）; HDD/SDD: 2 × 2.5 inch HDD/SSD, SSD up to 4 TB,HDD up to 2TB
HDD/SSD data can be exported locally via this converter (optional)
Hard Disk Case with heating function (optional); Network Interface: Front panel :1 ×10M/100M RJ45
Rear panel: 1 × 10M/100M RJ45
Note：The front and rear network ports are at same network segments; Alarm Input: 4 high/low level signal inputs, 1 pulse signal input, 1 BUTTON input; Alarm Output: 2 relay signal outputs; Wi-Fi Antenna Interface: WI2.4G model: 1 × 2.4 G Wi-Fi SMA antenna,
WI5.8G model: 2 × 5.8 G Wi-Fi SMA antenna
(Optional. 802.11B/G/N and 802.11AC are selectable. 1 antenna is
needed for 802.11B/G/N module. 2 antennas are needed for 802.11AC
module.); Sensor-in: 4 high/low level signal inputs; Serial Number Interface: 2 × RS-232(harness is optional). 1 × RS-485. 1 × RS-485 (integrated in EXT.DEV interface); USB Interface: Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0 (5-pin aviation connector); GNSS (Global Navigation Satellite System): GPS (Global Positioning System) & GLONASS (Global Navigation Satellite System), 1 ×FAKRA antenna; G-Sensor: Built-in; Product Dimension: 202 mm × 267.6 mm × 93.9 mm (7.95″ × 10.54″ × 3.7″); Power Supply: +9 to +36 VDC; Power Consumption: Standby: ≤ 0.5 W
Full load: ≤ 75 W
Note: Without peripheral and storage media ≤ 20 W; Operating Temperature: -25 °C to +70 °C (-13 °F to +158°F); Operating Humidity: 10% to 95% (non-condensing); Operation Method: Mouse, IR remote control, Web control, and display screen; Weight (Without Storage Media): 3.13 kg (6.9 lb.); EMC: FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015+A1:2020+A1:2020, EN 50130-4: 2011+A1:2014; EN IEC 61000-3-2: 2019+A1:2021, EN 61000-3-3: 2013+A1:2019+A2:2021);; Safety: CB (IEC 62368-1:2018); CE-LVD (EN IEC 62368-1:2020 + A11:2020 );; Environment: CE-RoHS (2011/65/EU and amendment 2015/863/EU); Automotive and Railway: E-MARK (ECE R10)
