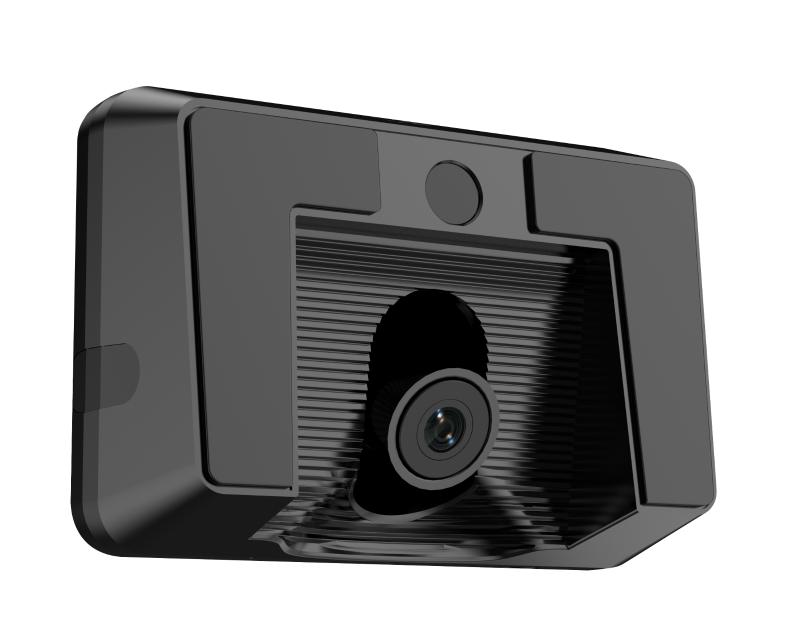

Hikvision AE-VC259T-S AE-VC259T-S

Specifications

Image Sensor: 1/2.8″ Progressive Scan CMOS; Min. Illumination: 0.01 Lux@(F1.2, AGC ON); Shutter Speed: 1/25 s to 1/30,000 s; Resolution: 1920×1080; Day & Night: Color; FOV: Horizontal: 110°, vertical: 59°, diagonal: 130°; Lens Mount: M12; Lens Type: Fixed focal lens, 2.1mm; Frame Rate: Default 1080P@25fps, 1080P@30fps customizable; Built-in Mic: Supported; Built-in Speaker: Not Supported; Wide Dynamic Range (WDR): 96 dB; SNR: 42 dB; Video Output: 1-way coaxial HD, conforming to HDTVI; Interface Type: 1 Vpp Composite Output (aviation plug)
B pin sequence:
1: video, 2: audio, 3: power, 4: ground; Protection: IP5X; Power Supply: 9 to 16 V DC; Power Consumption: Max. 1.2 W; Camera Material: Black PC; Dimension: 89.5 mm × 63.3 mm × 39.8 mm (3.5″ × 2.5″ × 1.6″); Startup and Operating Conditions: -40 °C to +75 °C (-40 °F to +167 °F), 90% or less (non-condensing); : Approx. 99 g (0.2 lb.); Certification: CB;
CE-LVD, CE-EMC, CE-RoHS;
E-Mark;
FCC-SDoC;
