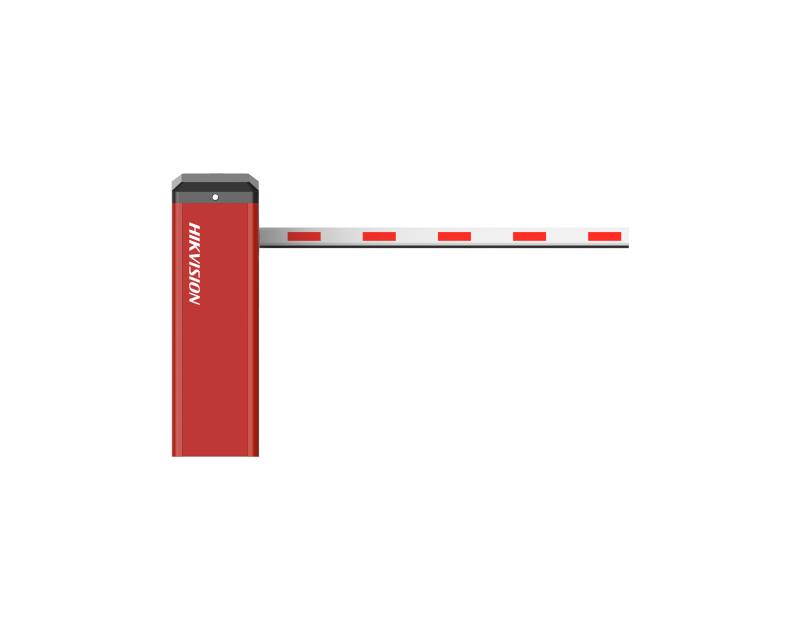

Hikvision Barrier gates with straight boom pole DS-TMG520

Specifications

Barrier Housing Dimensions
(L × W × H): 1248 × 486 × 480 mm (49.1 × 19.1 × 18.9 inch); Body Weight: 59.3 ± 5 kg (130.7 ± 11.0 lb.); Body Dimensions (with Package, Without Boom Pole)
(L × W × H): 1266 × 504 × 626 mm (49.84 × 19.84 × 24.65 inch); Barrier Housing Material: SGCC; Barrier Housing Thickness: 2.0 mm; Barrier Housing Door Thickness: 1.5 mm; Barrier Housing Color: Orange; Barrier Housing Door Color: Orange; Boom Pole Installation Height: 880 mm; Body Indicators: without indicator; Matched Boom Pole Type: Round boom pole: 1 to 4 m
anti-collision Octagonal boom pole: 1 to 6 m
Octagonal telescopic boom pole: 4 to 6 m
Boom pole ≥ 5 m: with spindle rod; Rising/Falling Speed: DS-TMG520-H(3m):
Raising: 0.9S(Default) Adjustable 0.9S, 1.2S, 2S
Falling: 3S(Default) Adjustable 1.5S, 2S, 3S

DS-TMG520-M(4m):
Raising: 1.5S(Default) Adjustable 1.5S, 2S, 2.5S
Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S

DS-TMG520-L(6m):
Raising: 4S(Default) Adjustable 4S, 5S, 6S
Falling: 6S(Default) Adjustable 4S, 5S, 6S

DS-TMG520-M(4m telescopic pole):
Raising: 2S(Default) Adjustable 2S, 2.5S
Falling: 3.5S(Default) Adjustable 2.5S, 3S, 3.5S

DS-TMG520-L(5m telescopic pole):
Raising: 4S(Default) Adjustable 4S, 5S, 6S
Falling: 6S(Default) Adjustable 4S, 5S, 6S

DS-TMG520-L(6m telescopic pole):
Raising: 4S(Default) Adjustable 4S, 5S, 6S
Falling: 6S(Default) Adjustable 4S, 5S, 6S; Boom Pole Direction: right by default, direction switchable; Boom Pole Falling Delay: 10 s by default (configurable), min. 10 s (every 10 s followed a gap); Motor Type: DC brushless motor; Number of Cycles: 5000000; Working Voltage: 220 VAC ± 15%; Remote Controller Frequency: 433 MHz; Current: 1.5 A; Consumption: 300 W; Temperature and Humidity: -30 °C to 70 °C (-22 °F to 158 °F); Rising Boom Pole for Poweroff: Optional, not supported by default; Duty Cycle: 100%; Rising to Limit: 1 group; Falling to Limit: 1 group; Open: 1 group; Close: 1 group; Stop: 1 group; IR/Inductive Loop/Radar: 1 group; RS-485: 1 group; Traffic Signal Light: 1 group, external power supply required, max. 220 VAC supported; Network: 1 group (reserved); Boom Pole Type: Octagonal Straight Pole; Boom Pole Material: AL6061; Boom Pole Color: White background with red bar; Boom Pole Dimensions: 2 m octagonal boom pole: 98 × 45 × 2000 mm (3.86 × 1.77 × 78.74 inch)
3 m octagonal boom pole: 98 × 45 × 3000 mm (3.86 × 1.77 × 118.11 inch)
4 m octagonal boom pole: 98 × 45 × 4000 mm (3.86 × 1.77 × 157.48 inch)
5 m octagonal boom pole: 119 × 55 × 5000 mm (4.69 × 2.17 × 196.85 inch)
6 m octagonal boom pole: 119 × 55 × 6000 mm (4.69 × 2.17 × 236.22 inch)
3 m boom pole with LED light bar: 95 × 49 × 3013 mm (3.74 × 1.93 × 118.62 inch)
4 m boom pole with LED light bar: 95 × 49 × 4013 mm (3.74 × 1.93 × 157.99 inch)
4 m octagonal telescopic boom pole: 110 × 44 × 2970 mm (4.33 × 1.73 × 116.93 inch)
5 m octagonal telescopic boom pole: 110 × 44 × 3470 mm (4.33 × 1.73 × 136.61 inch)
6 m octagonal telescopic boom pole: 110 × 44 × 6000 mm (4.33 × 1.73 × 236.22 inch)
2 m anti-collision round boom pole: 80 × 80 × 2000 mm (3.15 × 3.15 × 78.74 inch)
3 m anti-collision round boom pole: 80 × 80 × 3000 mm (3.15 × 3.15 × 118.11 inch)
4 m anti-collision round boom pole: 80 × 80 × 4000 mm (3.15 × 3.15 × 157.48 inch); Boom Pole Weight: 2 m octagonal boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.)
3 m octagonal boom pole: 2.8 ± 0.3 kg (6.17 ± 0.66 lb.)
4 m octagonal boom pole: 3.45 ± 0.3 kg (7.60 ± 0.66 lb.)
5 m octagonal boom pole: 5.9 ± 0.3 kg (13.00 ± 0.66 lb.)
6 m octagonal boom pole: 6.8 ± 0.3 kg (15.21 ± 0.66 lb.)
3 m boom pole with LED light bar: 3.4 ± 0.3 kg (7.50 ± 0.66 lb.)
4 m boom pole with LED light bar: 4.4 ± 0.3 kg (9.70 ± 0.66 lb.)
4 m octagonal telescopic boom pole: 4.42 ± 0.3 kg (9.74 ± 0.66 lb.)
5 m octagonal telescopic boom pole: 4.85 ± 0.3 kg (10.69 ± 0.66 lb.)
6 m octagonal telescopic boom pole: 5.65 ± 0.3 kg (12.46 ± 0.66 lb.)
2 m anti-collision round boom pole: 2.5 ± 0.3 kg (5.51 ± 0.66 lb.)
3 m anti-collision round boom pole: 3.5 ± 0.3 kg (7.71 ± 0.66 lb.)
4 m anti-collision round boom pole: 4.5 ± 0.3 kg (9.92 ± 0.66 lb.); Boom Pole Dimensions (with Package): 2 m octagonal boom pole: 115 × 60 × 2020 mm (4.53 × 2.36 × 79.53 inch)
3 m octagonal boom pole: 115 × 60 × 3020 mm (4.53 × 2.36 × 118.90 inch)
4 m octagonal boom pole: 115 × 60 × 4020 mm (4.53 × 2.36 × 158.27 inch)
5 m octagonal boom pole: 140 × 65 × 5030 mm (5.51 × 2.56 × 198.03 inch)
6 m octagonal boom pole: 140 × 65 × 6030 mm (5.51 × 2.56 × 237.40 inch)
3 m boom pole with LED light bar: 100 × 60 × 3035 mm (3.94 × 2.36 × 120.07 inch)
4 m boom pole with LED light bar: 100 × 60 × 4035 mm (3.94 × 2.36 × 159.45 inch)
4 m octagonal telescopic boom pole: 120 × 51 × 3100 mm (4.72 × 2.01 × 122.05 inch)
5 m octagonal telescopic boom pole: 120 × 51 × 3500 mm (4.72 × 2.01 × 137.80 inch)
6 m octagonal telescopic boom pole: 120 × 51 × 4005 mm (4.72 × 2.01 × 157.68 inch)
2 m anti-collision round boom pole: 90 × 90 × 2030 mm (3.54 × 3.54 × 79.92 inch)
3 m anti-collision round boom pole: 90 × 90 × 3030 mm (3.54 × 3.54 × 119.29 inch)
4 m anti-collision round boom pole: 90 × 90 × 4030 mm (3.54 × 3.54 × 158.66 inch); Boom Pole Weight (with Package): 2 m octagonal boom pole: 2.37 ± 0.3 kg (5.22 ± 0.66 lb.)
3 m octagonal boom pole: 3.11 ± 0.3 kg (6.86 ± 0.66 lb.)
4 m octagonal boom pole: 3.965 ± 0.3 kg (8.74 ± 0.66 lb.)
5 m octagonal boom pole: 7.01 ± 0.3 kg (15.45 ± 0.66 lb.)
6 m octagonal boom pole: 8.245 ± 0.3 kg (18.18 ± 0.66 lb.)
3 m boom pole with LED light bar: 4.0 ± 0.3 kg (8.82 ± 0.66 lb.)
4 m boom pole with LED light bar: 5.2 ± 0.3 kg (11.46 ± 0.66 lb.)
4 m octagonal telescopic boom pole: 5.11 ± 0.3 kg (11.27 ± 0.66 lb.)
5 m octagonal telescopic boom pole: 6.23 ± 0.3 kg (13.73 ± 0.66 lb.)
6 m octagonal telescopic boom pole: 7.25 ± 0.3 kg (15.98 ± 0.66 lb.)
2 m anti-collision round boom pole: 2.7 ± 0.3 kg (5.95 ± 0.66 lb.)
3 m anti-collision round boom pole: 4.3 ± 0.3 kg (9.48 ± 0.66 lb.)
4 m anti-collision round boom pole: 5.8 ± 0.3 kg (12.79 ± 0.66 lb.); RF: CE-RED
EN 300220-1 V3.1.1
EN 300220-2 V3.1.1
EN 301489-1 V2.2.3
EN 301489-3 V2.1.1
EN IEC 62311: 2020; EMC: CE-EMC：
EN 55032: 2015 + A11: 2020 + A1: 2020,
EN IEC 61000-3-2: 2019 + A1: 2021,
EN 61000-3-3: 2013 + A1: 2019 + A2: 2021,
EN 50130-4: 2011 + A1: 2014; Security: CE-LVD:
EN 62368-1: 2014 + A11: 2017
CB:
IEC 62368-1: 2014
IEC 62368-1: 2018; Environment: ROHS; Protection: IP54
