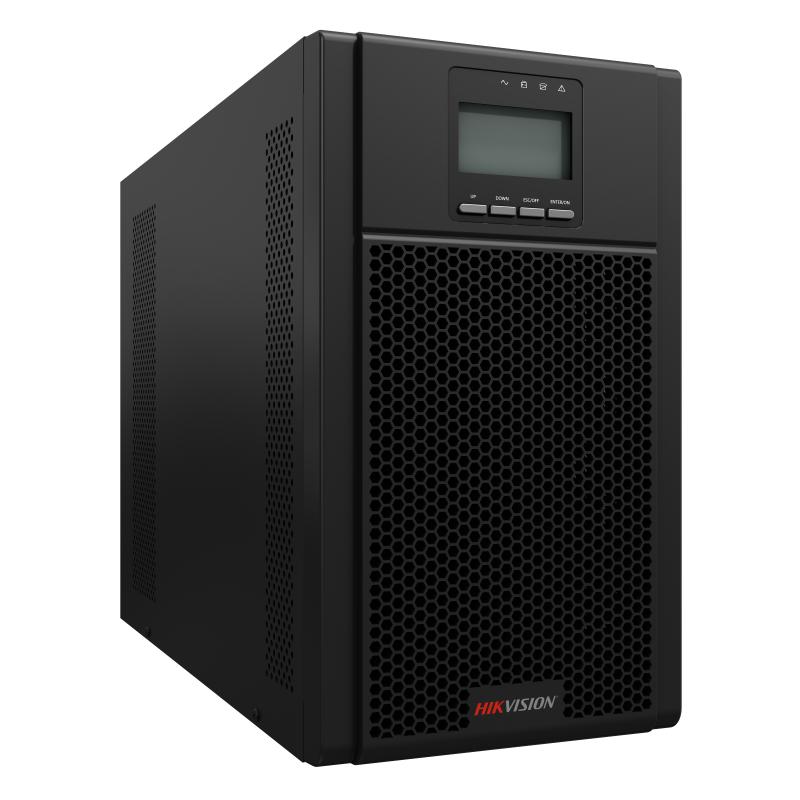

Hikvision DS-UPS02K48-R/TS/X (DS-UPS02K48-R/TS/X)

Specifications

UPS Capacity: 2000 VA / 1800 W; Nominal Voltage: 100/110/115/120/125Vac; Phase: Single Phase; Input Voltage Range: 55~150Vac (90~150Vac @ 100% load); Input Frequency: Frequency range 40~70Hz (50/60Hz Auto-Sensing); Power factor: ≥0.99; Output Voltage: 100/110/115/120/125Vac; Crest factor: 3:1; Power factor: 0.9; Output Sockets: US panel; Output Frequency: Line mode: 46~54Hz/56~64Hz, sychronize with input
Bat. Mode: 50/60±0.1Hz; Harmonic distortion (THDv): 2% Linear load
5% Non-linear load; Transfer Time: AC mode to Bat.mode: 0ms

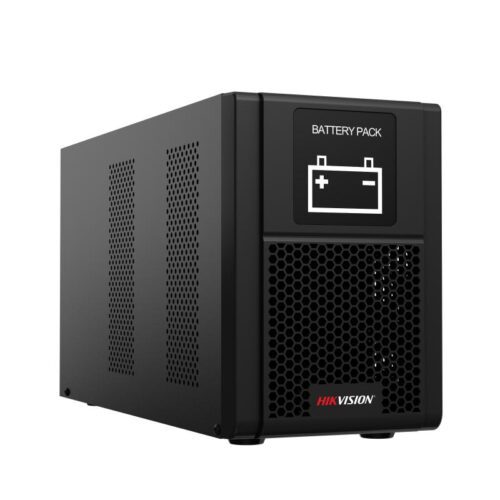

Inverter to Bypass: 4ms (Typical); Output Waveform: Pure Sinewave; Battery Type: Valve Regulated Lead Acid (VRLA); Typical Recharging Time: 4 hours (To 90% of full capacity); Capacity (Standard Unit): 12V/9Ah; Battery Number: 4; DC System Voltage (VDC): 48V; Charging Current (Max.): 2A; Expandable Runtime: Yes, External battery pack: DS-UPSB0948B-R/T; Alarm: Battery mode/Battery low voltage/Overload/Fault; LCD display: Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature & Remaining battery backup time; AC Mode: 92%; Battery Mode: 96%; Operating Temperature: 0℃~40℃; Storage Temperature: -25℃~55℃; Humidity Range: 0~95% (Non – condensing); Altitude: 0~3000m (1000~3000m derating required); Noise Level: ≤50dB; Dimension W x D x H (mm): 191×460×337; Net weight (kg): 20.7
