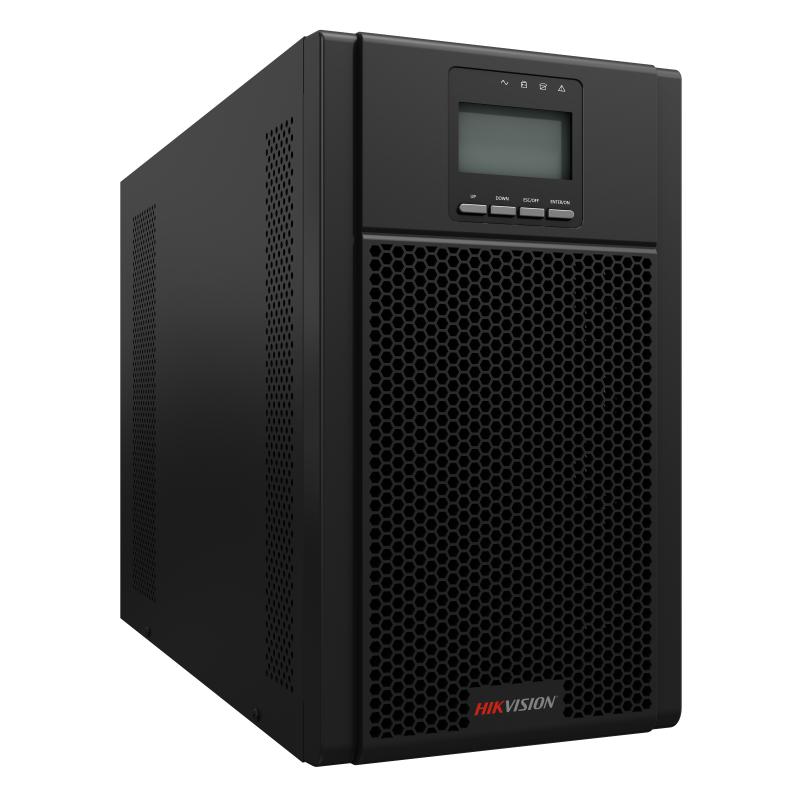

Hikvision DS-UPS03K72-R/TS (DS-UPS03K72-R/TS)

Specifications

UPS Capacity: 3000 VA / 2700 W; Nominal Voltage: 208/220/230/240Vac; Input Voltage Range: 110~300Vac (176~264Vac @ 100% load); Input Frequency: 40~70Hz (50/60Hz Auto-Sensing); Phase: Single Phase; Power factor: ≥0.99; Output Voltage: 208/220/230/240Vac; Output Waveform: Pure Sinewave; Power factor: 0.9; Output Sockets: Optional: IEC panel/EU panel/UK panel/US panel; Output Frequency: Online mode: 46~54Hz or 56~64Hz
Bat. Mode: (50/60±0.1%)Hz; Crest factor: 3:1; Harmonic distortion (THDv): ≤3% Linear load
≤5% Non linear load; Transfer Time: AC mode to Bat.mode: 0ms

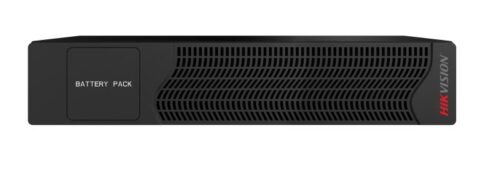

Inverter to Bypass: 4ms (Typical); Battery Type: Valve Regulated Lead Acid (VRLA); Typical Recharging Time: 4 hours (To 90% of full capacity); Capacity (Standard Unit): 12V/9Ah; Battery Number: 6; DC System Voltage (VDC): 72V; Charging Current (Max.): 1A; Expandable Runtime: Yes, External battery pack: DS-UPSB0972B-R/TC; LCD display: Input voltage, Input frequency, Output voltage, Output frequency, Load percentage, Battery voltage, Inner temperature & Remaining battery backup time; Alarm: Battery mode/Battery low voltage /Overload/Fault; AC Mode: 92%; Battery Mode: 88%; Operating Temperature: 0℃~40℃; Storage Temperature: -25℃~55℃; Humidity Range: 20~95%RH @ 0~40℃ (Non condensing); Altitude: <1500m, derating required when>1500m; Noise Level: <55dB at 1 Meter; Dimension W x D x H (mm): 191 x 460 x 337; Net weight (kg): 24.5; Safety: IEC/EN 62040-1, IEC/EN 62477-1; EMC: IEC/EN 62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
