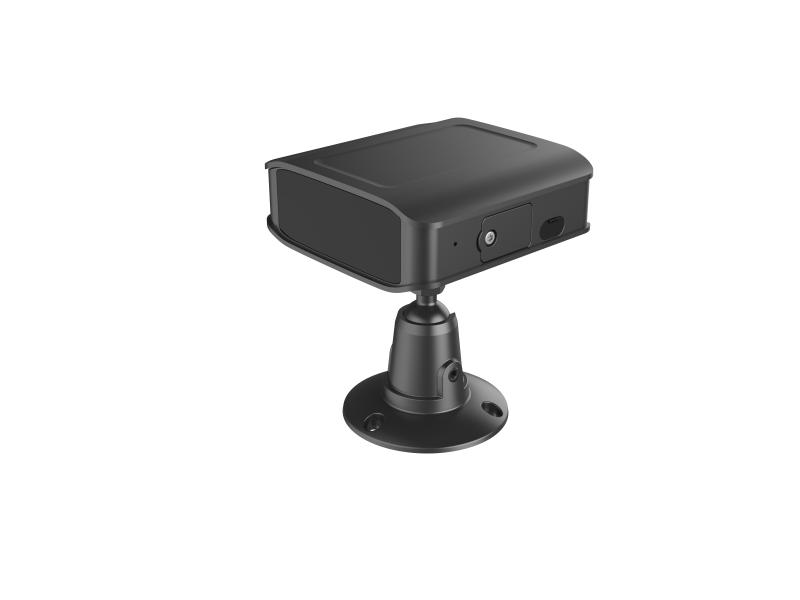

Hikvision DSM camera AE-VC1B1I-ISF

Specifications

Min. Illumination: 0.00 Lux@(F1.2, AGC ON); Image Sensor: 1/4″ high-speed global shutter image sensor; Day & Night: Only support night mode; Angle Adjustment: Left and Right: -43°~43°; Front and Back: -43°~67°; Horizontal: 0°~360°; Focal Length & FOV: 6 mm: horizontal FOV 54°, vertical FOV 31°，diagonal FOV 62°; Lens Mount: M8; Lens Type: Fixed Lens; Supplement Light Type: Infrared fill light (no red glow); IR Wavelength: 940nm; IR Range: Up to 10m; Max. Resolution: 1280 × 720; Main Stream: 50 Hz: 25 fps (1280 × 720)
60 Hz: 30 fps (1280 × 720); Sub-Stream: 50 Hz: 25 fps (704×576, 640×480, 352×288, 320×240)
60 Hz: 30 fps (704×576, 640×480, 352×288, 320×240); Third Stream: 50 Hz: 25 fps (1280 × 720)
60 Hz: 30 fps (1280 × 720); Video Compression: Main Stream: H.264 , H.265
Sub-Stream: H.264 , H.265 , MJPEG
Third Stream: H.264 , H.265; Video Bit Rate: Main Stream: 256kbps to 8192kbps
Sub-Stream: 256kbps to 4096kbps
Third Stream: 256kbps to 4096kbps; H.264 Type: BaseLine Profile / Main Profile / High Profile; H.265 Type: Main Profile; Bit Rate Control: Constant Bit Rate, Variable Bit Rate; Audio Compression: G711U，G711A，G726，AAC，G722，PCM; Audio Bit Rate: 64Kbps(G.711U)/64Kbps(G.711A)/16Kbps(G.726)/16Kbps(AAC); Protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS,RTP, RTSP, NTP; Simultaneous Live View: Up to 8 channels; API: HIK SDK, ONVIF (PROFILE S/G/T), ISAPI; User Management: Up to 16 users, 3 levels: Administrator, Operator and User; Web Browser: IE8+, Chrome45+, Edge41+, Firefox45+; Day/Night Switch: Night only; Ethernet Interface: -RJ45: RJ45+DC Cable
-M12: M12 Aviation Plug + Molex Cable; Audio: Audio Input: Built-in Mic
Audio Output: Built-in Speaker; TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering); Smart Event: Distraction Prompt Detection, Fatigue Driving (Closing Eyes), IR Interrupting Sunglasses Detection, Tampering Detection, Seatbelt Unbuckled Detection, Fatigue Driving (Yawn) Detection, Driver Exception Detection, Tampering Detection; Product Dimension: 91.5 mm × 91.5 mm × 107.9 mm (3.6″ × 3.6″ × 4.3″); Power Consumption: DC: 0.19-0.78 A, 7 W MAX; Camera Material: Metal; Product Weight: Approx. 405 g (0.9 lbs.); Startup and Operating Conditions: -30°C to 75°C (-22°F to 167°F), humidity 90% or less (non-condensing); Power Supply: DC 9-36 V; Cable Length: 50 cm; EMC: FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B）
CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013）; Safety: CE: CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013); Environment: CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
Reach SVHC: Regulation (EC) No 1907/2006; Automotive and Railway: EN50155: EN 50155-2007,EN 50155-2017
EN45545: (EN 45545-2:2013+A1:2015);
E-MARK (ECE R10)
