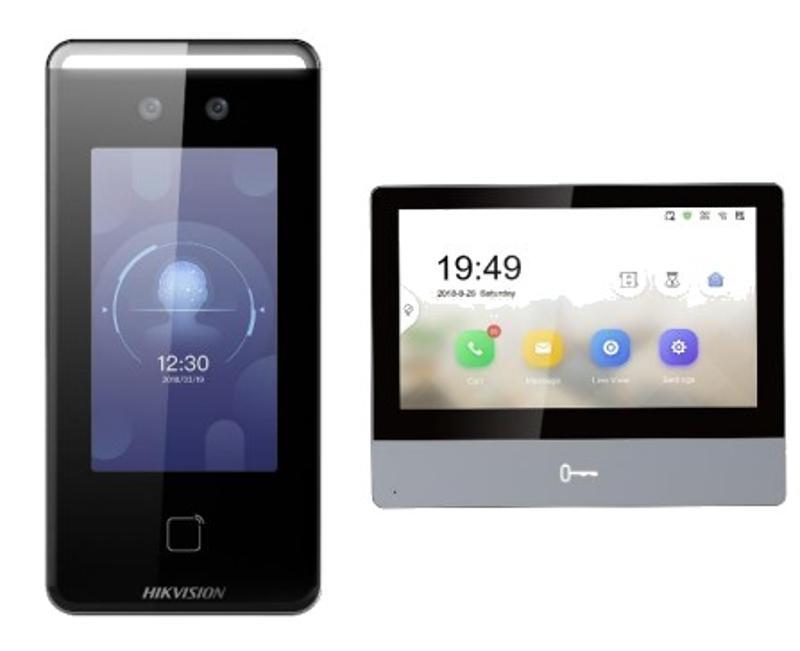

Hikvision Facial IP Intercom Kit DS-KIS901-P

Specifications

Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Volume adjustment: Adjust via device or client; Card type: M1 card; Card reading distance: 0 to 3 cm; Card reading duration: < 1 s; Face recognition duration: < 0.2 s; Face recognition distance: 0.3 to 1.5 m; Pixel: 2 MP; WDR: Support; Lens: 2; Video standard: PAL (Default) and NTSC; Card capacity: 1500; Face capacity: 1500; Event capacity: 150000; Face antispoofing: Support; Live view: Supports live view on the platform, H.264; Face recognition: Supports face recognition in low illumination; Access control management: Support multiple authentication methods; Protection level: IP65; Power supply: 12 VDC, 2A; Working temperature: -30 °C to 60 °C (-22 °F to 140 °F); Working humidity: 0 to 90% (No condensing); Network interface: 1, RJ45; RS-486: 1; Wiegand: Wiegand 26 and Wiegand 34; Lock output: 1; Exit button: 1; Door contact input: 1; Power interface: 1; TAMPER switch: 1; USB: 1, USB 2.0; Wired network: 10/100/1000 Mbps self-adaptive; Communication protocol: ISUP 5.0; Size: 4.3-inch; Resolution: 800 × 480; Operation method: Capacitive touch screen; Operation system: Embedded Linux operation system; Operation system: Embedded Linux operation system; Memory: 128 MB; Flash: 32 MB; Display screen: 7-inch colorful IPS LCD; Display resolution: 1024 × 600; Operation method: Capacitive touch screen, physical button; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Audio quality: Noise suppression and echo cancellation; Audio compression standard: G.711 U; Audio compression Rate: 64 Kbps; Wired network: 10/100 Mbps self-adaptive; Wireless network: Wi-Fi 802.11 b/g/n; Protocol: TCP/IP, SIP, RTSP; Network interface: 1 RJ-45 10/100 Mbps self-adaptive; Alarm input: 8-ch alarm inputs; I/O output: 2; TF card: Max to 32 G, SD 2.0 or lower version; Power supply: IEEE802.3af, standard PoE 12 VDC/1 A; Power consumption: ≤ 7 W; Working temperature: -10 °C to 55 °C (14 °F to 131 °F); Working humidity: 10% to 90%; Dimension (L x W x H): 180 mm × 140 mm × 22.4 mm (7.09" ×5.51" × 0.88"); Power supply via detector: 12 V, 200 mA; : 899 g (with packaging) 355 g (without packaging)
