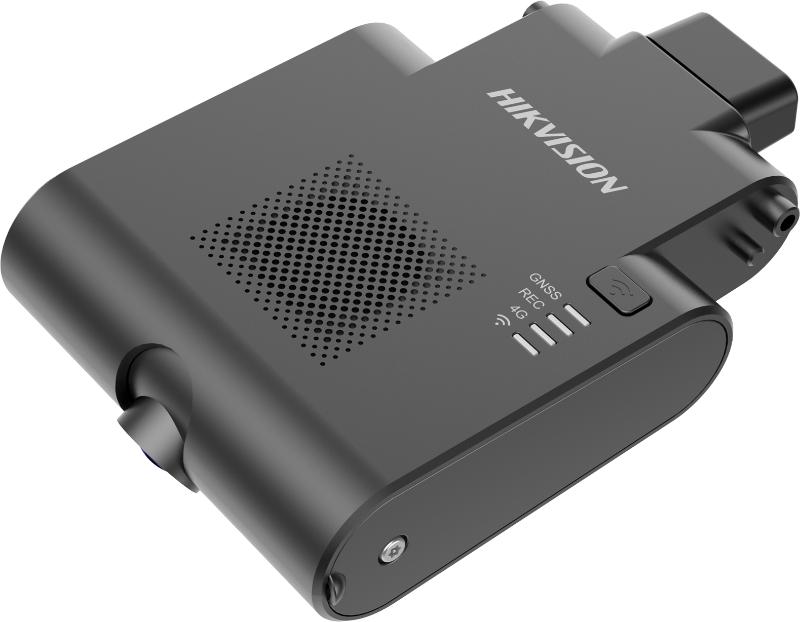

Hikvision Industry Dashcam (AE-DI2032-G40)

Specifications

Image Sensor: 1/2.7” Progressive Scan CMOS; Shutter Speed: 1/3 s to 1/100, 000 s; Min. Illumination: 0.01 Lux @ (AGC ON); Focal Length: Fixed focal lens, 2.1mm; Aperture: F2.1; Lens Mount: M12; FOV: Horizontal FOV: 127°
Vertical FOV: 73°
Diagonal FOV: 137°; Audio Input: 1-channel audio; Video Input: 3-channel video (default: 1 channel; extension: 2 channels); Video Compression: H.265,H.264; Audio Compression: G.711ulaw,G.711alaw,AAC; Main Stream: CH1:
25fps 1080P 1920 × 1080 (default)
25fps 720P 1280 × 720
CH2~CH3:
25fps 720P 1280 × 720 (default); Sub- Stream: CH1:
25fps 720P 1280×720
25fps 480P 640×480 (default)
CH2~CH3:
25fps 480P 640×480 (default); Built-in Mic: Omnidirectional pickup, frequency response 50-20000 Hz; Built-in Speaker: Max 1.5 W, with adjustable volume, not less than 70 dB at 1 m distance; Wi-Fi Frequency: 2.4 GHz; Positioning: GPS (Global Positioning System)
GLONASS (Global Navigation Satellite System); SNR: 37.5 dB; Wide Dynamic Range: Supports WDR; Image Settings: Adjustable brightness, chroma, contrast, color saturation, and sharpness; OSD: Date, Time, GPS, Speed, etc.; Alarm Input: 2; SIM Card Slot: 1, Industry Micro SIM, Plug-in type; Power Interface: 1, 8-pin BM Male Terminal; Reset Key: 1, Pinhole button; RS-232: 1; Dial-up: Europe：
FDD-LTE: B1, B3, B5, B7, B8, B20
TDD-LTE: B38, B40, B41
UMTS: B1, B5, B8
GSM/GPRS/EDGE: 900/1800 MHz

Latin America :
FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B28, B66
TDD-LTE: B40
UMTS: B1, B2, B5, B8
GSM/GPRS/EDGE: 850/900/1800/1900 MHz

Warning: The device requires industrial SIM card (MP2). The ordinary SIM card (MP1) is prohibited. We are not responsible for any problem caused by the use of any ordinary SIM card.; Wi-Fi Protocol: 802.11 b/g/n; Driving Status Monitoring (DSM): Phone Call,Smoking,Inattenention,Fatigue Driving, Video Occlusion, Infrared Blocking Sunglasses, Not Wearing Seat Belt; Advanced Driving Assistance System (ADAS): Forward Collision Warning (FCW)
Pedestrian Collision Warning (PCW)
Lane Departure Warning(LDW)
Traffic Sign Recognition (TSR)
Headway Monitoring Warning (HMW)
Traffic Light Detection(TLD)
Forward Car Leaving(FCL); System: Embedded Linux; Language: Currently only supports English
*The language includes APP interface language and voice reminder.; Storage: Dual TF Card (up to 512GB for each)
Class10 or above is recommended; Sensor: Six-axis G-Sensor
*Harsh acceleration, Harsh deceleration and Harsh cornering; Image Format: JPEG; Indicator: Positioning Status Indicator (GNSS)
Off: no positioning signal
Steady blue: the positioning signal is normal

Recording Status Indicator(REC)
Off: The built-in or extended camera stops / fails
Steady blue: The built-in or extended camera is recording normally

Network Status Indicator (4G)
Off: No 4G signal
Steady blue: 4G signal and the platform connection normal
Flashing blue: 4G signal normal but no platform connection

Wi-Fi Status Indicator
Off: Wi-Fi AP closed
Steady blue: Wi-Fi AP open and APP connection normal
Flashing blue: Wi-Fi AP open but no APP connection; Protection Level: IP4X
*The dashcam is not waterproof; Power Supply: DC 10V~16V/20V~36V ( P＜12W ); Product Dimension: 123.0 mm×85.0 mm×38.9 mm (4.8″×3.4″×1.5″); With Package Dimension: 223 mm×153 mm×63 mm (8.8″×6.0″×2.5″); Operating Temperature: -20°C to 60°C (-4°F to 140°F); Operating Humidity: 10% to 95% (non-condensing); Net Weight: Approx. 270 g (0.6 lb.); With Package Weight: Approx. 900 g (2.0 lb.)
