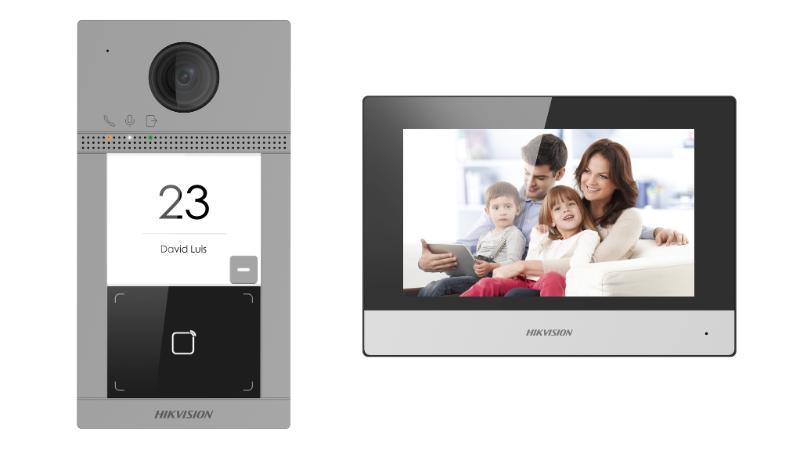

Hikvision IP video intercom kit DS-KIS604-S(C)

Specifications

Operation system: Embedded Linux operation system; Flash: 32 M; RAM: 256 M; Supplement light: IR supplement; Resolution: Main stream : 1920 × 1080
Sub stream : 640 × 480; Lens: 1; WDR: Support; FOV: Horizontal: 124° Vertical: 75°; Video compression standard: H.264; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker (more than 80 dB within 30 cm); Audio quality: Noise suppression and echo cancellation; Volume adjustment: Adjustable; Audio compression standard: G.711 U, G.711 A; Audio compression Rate: 64 Kbps; Audio intercom: Two-way audio communication; User capacity: 2000; Network protocol: TCP/IP, RTSP; Wi-Fi: Wi-Fi 802.11 b/g/n; Wired network: 10/100 Mbps self-adaptive Ethernet; 3G/4G: /; Bluetooth: /; Network interface: 1; RS-485: 1; Wiegand: 0; Alarm input: 4; Lock control: 2; Exit button: 2 Max.; Door contact: 2; Alarm output: 0; Power interface: 1; TAMPER: 1; USB interface: 0; TF card: 1 (reserved); Button: 1; Indicator: 3; Power consumption: ＜ 10 W; Power supply: IEEE802.3af, standard PoE
12 VDC; Working temperature: -40° C to 53° C(-40° F to 127.4° F); Working humidity: 10% to 95%; Dimension: 174 mm × 91 mm × 29 mm; Application environment: Outdoor; Protection level: IP65, IK08; : 380 g; Installation: Surface Mounting; Operation system: Embedded Linux operation system; Memory: 128 MB; Flash: 32 MB; Display screen: 7-inch colorful TFT screen; Display resolution: 1024 × 600; Operation method: Capacitive touch screen; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Audio quality: Noise suppression and echo cancellation; Audio compression standard: G.711 U; Audio compression Rate: 64 Kbps; Network interface: 1 RJ-45 10/100 Mbps self-adaptive; Wired network: 10/100 Mbps self-adaptive; Wireless network: Wi-Fi 802.11 b/g/n; Protocol: TCP/IP, SIP, RTSP; RS-485: 1; Alarm input: 8-ch alarm inputs; Relay output: 2; TF card: Max to 32 G, SD 2.0 or lower version; Power consumption: ≤ 6 W; Power supply: Standard PoE,12VDC; Working temperature: -10 °C to 55 °C (14 °F to 131 °F); Working humidity: 10% to 90%; Dimension (L x W x H): 200 mm × 140 mm × 15.1 mm (7.9″ ×
5.5″ × 0.6″)
