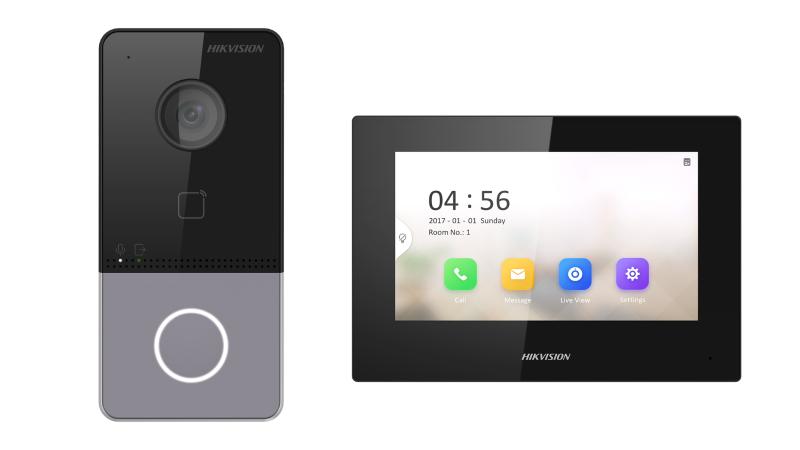

Hikvision IP Video Intercom Kit DS-KIS605-P(C)

Specifications

Operation system: Embedded Linux operation system; Flash: 32 MB; RAM: 256MB; Camera: 2MP HD camera; Night vision: Low illumination IR supplement mode:3 m; Backlight compensation: Support; Digital noise reduction: Support; WDR: True WDR; Field of view: Horizontal: 131° Vertical: 78°; Video Compression Standard: H.264; Stream: Main stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps; Motion detection: Support; Flash-avoid frequency: 50 Hz, 60 Hz; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Audio quality: Noise suppression and echo cancellation; Audio compression standard: G.711 U; Audio compression Rate: 64 Kbps; Audio intercom: Two-way audio communication; Network protocol: TCP/IP, RSTP; Wired network: 10/100 Mbps Ethernet; Wireless network: Support; RS-485: 1; Alarm input: 4; Debugging port: 1; Grounding: 1; TAMPER switch: 1; Power consumption: ＜ 10 W; Working temperature: -40° C to 53° C(-40° F to 127.4° F); Working humidity: 10% to 95%; Dimension: 138 mm × 65 mm × 27 mm; Installation: Surface mounting; Protection level: IP65; Indicator: 2; Power supply: IEEE802.3af, standard PoE
12 VDC; Operation system: Embedded Linux operation system; Memory: 128 MB; Flash: 32 MB; Display screen: 7-inch colorful TFT screen; Display resolution: 1024 × 600; Operation method: Capacitive touch screen; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Audio quality: Noise suppression and echo cancellation; Audio compression standard: G.711 U; Audio compression Rate: 64 Kbps; Wired network: 10/100 Mbps self-adaptive; Protocol: TCP/IP, SIP, RTSP; RS-485: /; Alarm input: 8-ch alarm inputs; Relay output: /; TF card: /; Power consumption: ≤ 6 W; Working temperature: -10 °C to 55 °C (14 °F to 131 °F); Working humidity: 10% to 90%; Dimension (L x W x H): 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″)
