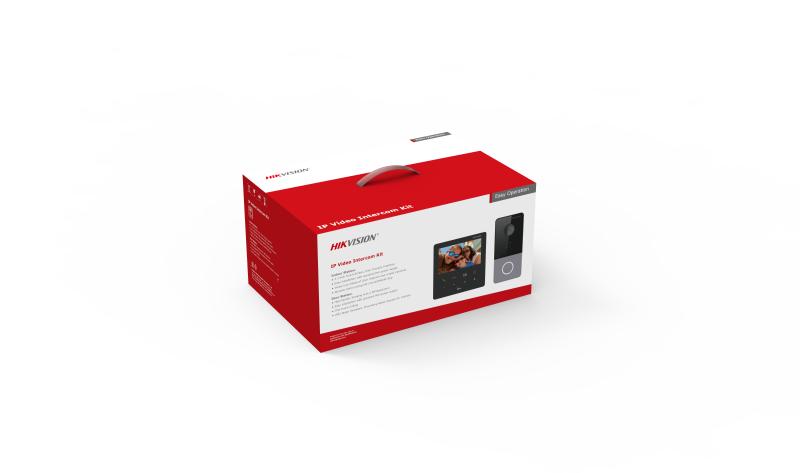

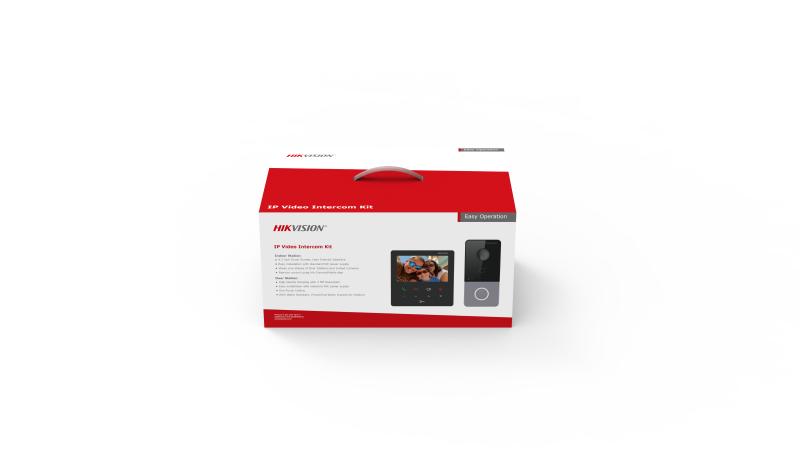

Hikvision IP Video Intercom Kit DS-KIS606-P

Specifications

Operation system: Linux; Processor: Embeded high performance processor; RAM: 256 MB; ROM: 32 MB; Supplement light: IR light, up to 3 m; Resolution: Main stream: 1920 × 1080p
Sub stream: 704 × 576p; Lens: 2MP HD camera; Wide dynamic range (WDR): 120 dB; Field of view: Horizontal: 131°, Vertical: 78°; Video Compression Standard: H.264; Audio input: 1 built-in omnidirectional microphone; Audio output: 1 built-in loudspeaker; Audio quality: Noise suppression and echo cancellation; Volume adjustment: Adjustable; Audio compression standard: G.711 U; Audio compression Rate: 64 Kbps; User capacity: 2000; Linked indoor station capacity: 16; Card capacity: 10000; Network protocol: TCP/IP, RSTP; Network interface: 1 RJ-45, 10/100 Mbps self-adaptive; RS-485: 1; Alarm input: 4; Lock control: 1 relay, Max. 30 VDC 2 A; Exit button: 1; Door contact input: 1; TAMPER: 1; Button: 1 physical button(s); Power consumption: ＜ 10 W; Working temperature: -40 °C to 55 °C(-40 °F to 131 °F); Working humidity: 10% to 95% (no-condensing); Dimension: 138 mm × 65 mm × 27 mm (5.4″ × 2.6″ × 1.1″); Installation: Surface mounting; Protection level: IP65; Indicator: 2; Application environment: Outdoor; Power supply: IEEE802.3af, standard PoE
12 VDC; : Net weight: 0.190 kg； Gross weight: 0.414 kg; Operation system: Embedded Linux operation system; RAM: 128 MB; ROM: 16 MB; Processor: Embedded processor; Display resolution: 480 × 272; Operation method: Capacitive touch screen with 9 touch buttons; Screen size: 4.3-inch colorful TFT screen; Type: Colorful TFT screen; Video compression standard: /; Resolution: /; Lens: /; Wide dynamic range (WDR): /; FOV: /; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Audio quality: Noise suppression and echo cancellation; Audio compression standard: G.711 U, G.711 A; Audio compression bitrate: 64 Kps; Volume adjustment: Adjustable; Notice capacity: 200; Linked indoor extensions capacity: 16; Network protocol: TCP/IP, SIP, RTSP; Wi-Fi: Wi-Fi 802.11 b/g/n, 2.4 GHz; Network interface: 1 RJ-45 10/100 Mbps self-adaptive; Button: 9 physical button; Power consumption: ≤ 4 W; Power supply: IEEE802.3af, Standard PoE,12 VDC; Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Working humidity: 10% to 95% (no-condensing); Dimension (L x W x H): 200 mm × 140 mm × 15.1 mm (7.9″ × 5.5″ × 0.6″); Dimension (W × H × D): 120 mm × 120 mm × 21 mm (4.7″ × 4.7″ × 0.83″); Installation: Wall mounting, table mounting; Application environment: Indoor; Protective level: /; : With package: 336.6 g Without package: 197.8 g; Language: English, French, Portuguese, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian Danish, Slovenian, Slovak, Swedish, Finnish, Traditional Chinese, Mongolian, Hebrew, Kazakh, Uzbek
