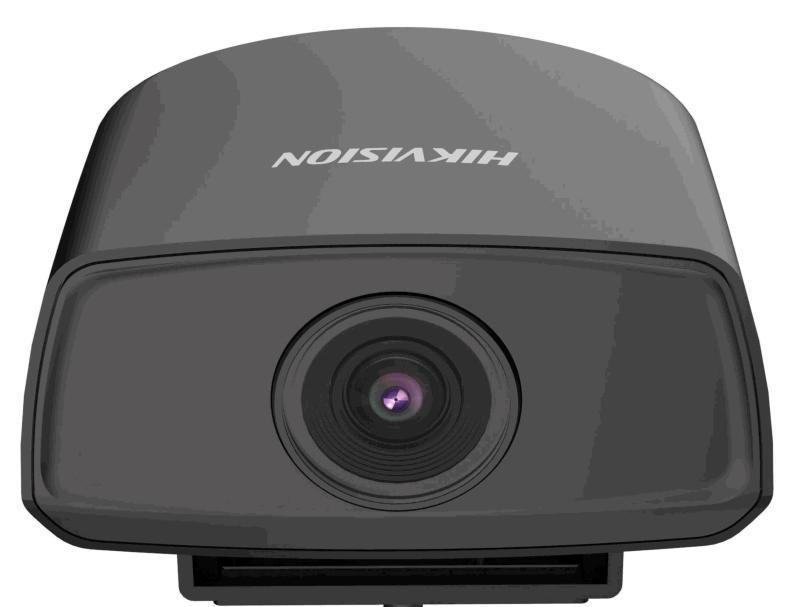

Hikvision Mobile Bullet Camera DS-2XM6222G1

Specifications

Shutter Speed: 1/3 s to 1/100,000 s; P/N: PAL: 25fps
NTSC: 30fps; Day & Night: IR Cut Filter; Angle Adjustment: Pan: -20° to 0°, Tilt: -15° to 25°; White Balance: Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;
Support manual/automatic white balance adjustment.; Focal Length: 2.8mm/4mm/6mm; Focal Length & FOV: 2.8mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
4mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°
6mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°; Lens Mount: M12; Focus: Manual focus; Max. Aperture: 2.8/4/6mm : F1.6; Supplement Light Type: Infrared fill light lamp; Smart Supplement Light: Support; IR Wavelength: 850 nm; IR Range: Up to 30 m; Max. Resolution: 1920 x 1080; Main Stream: 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720); Sub-Stream: 50Hz: 25 fps (704 x 576, 640 x 480, 352 x 288, 320 x 240)
60Hz: 30 fps (704 x 576, 640 x 480, 320 x 240); Third Stream: 50Hz: 25 fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30 fps (1920 x 1080, 1280 x 960, 1280 x 720); Video Compression: Main stream: H.264, H.265, H.264+, H.265+
Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+
Third stream: H.264, H.265 ,H.264+, H.265+; Video Bit Rate: Main Stream: 256 Kbps to 12288Kbps
Sub-Stream: 256 Kbps to 4096Kbps
Third Stream: 256 Kbps to 12288Kbps; H.264 Type: BaseLine Profile/Main Profile/High Profile; H.265 Type: Main Profile; Bit Rate Control: Constant Bit Rate, Variable Bit Rate; Stream Type: Main stream, sub stream, third stream; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region Of Interest (ROI): Support 2 fixed region for (main/sub) stream; Protocols: TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGMP,ICMP,IPV6,UDP,SSL/TLS; Simultaneous Live View: Up to 8 channels; API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK; User Management: Up to 16 users, 3 levels: Administrator, Operator and User; Web Browser: IE8+, Chrome45+, Edge41+, Firefox45+; Wide Dynamic Range (WDR): 120 dB; Image Settings: Support rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.; Day/Night Switch: Day/Night/Auto/Schedule; SNR: > 50 dB; Image Enhancement: BLC, HLC, 2DNR ,3DNR; Privacy Mask: Enables configuration, and supports drawing of up to 4 areas; Picture Overlay: Support image overlay, uploading images, enabling, coordinates, etc.; Target Cropping: Support (only the third stream); Backlight Compensation(BLC): Support up, down, left, right, center and custom backlight compensation adjustment; Video Output: Not supported; Ethernet Interface: -ID: 1 RJ45 10M/100M self-adaptive Ethernet port
-IM/ND, IDM: 1 four-core M12 aviation plug; Reset Key: Support; Interface Type: Interpolate; TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering); Linkage Method: Upload to FTP, notify monitoring center, send email, trigger recording; Basic Event: Motion detection, video tampering alarm; Smart Event: Line crossing detection,
Intrusion detection,
Region entrance detection,
Region exiting detection,
Unattended baggage detection,
Object removal detection,
Object detection: detects faces and upload images
Scene change detection,
defocus detection,
Loitering Detection,
People Gathering Detection,
Fast Moving Detection,
Parking Detection,; Product Dimension: Camera: Φ 78.8 mm × 81.6mm x 63.8 mm (3.1″ × 3.2″ x 2.5″); Power: PoE: 0.30 A to 0.20 A, max: 7.5 W
DC: 0.83 A to 0.21 A, max: 7.5 W; Package Dimension: 174 mm × 111 mm × 101mm (6.85″ × 4.37″ × 3.98″); Product Weight: Approx. 330 g (0.7 lb.); Startup and Operating Conditions: -30 °C to 75 °C (-22 °F to 167°F), humidity less than 95% or less (non-condensing); Language: English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech; General Function: Anti-flicker, heartbeat, mirror; Software Reset: Support; Power Supply: -ID: 9-36V& PoE (802.3af, 36 V to 57 V)
-IDM: 9-36V& PoE (802.3af, 36 V to 57 V)
-IM/ND: PoE (802.3af, 36 V to 57 V); Power Interface: -ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply
-IM/ND: four-core M12 aviation plug, PoE power supply; Cable Length: 50 cm; Class: Class B; EMC: FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);; Safety: UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
LOA: SANS IEC60950-1
BIS: IS 13252(Part 1)2010+A1:2013+A2:2015; Environment: CE-RoHS (2011/65/EU);
WEEE: 2012/19/EU
Reach SVHC: Regulation (EC) No 1907/2006; Electrical Safety Protection: IP68 (IEC 60529-2013); Automotive and Railway: EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010);
EN45545 (EN 45545-2:2013+A1:2015);
E-MARK (ECE R10)
