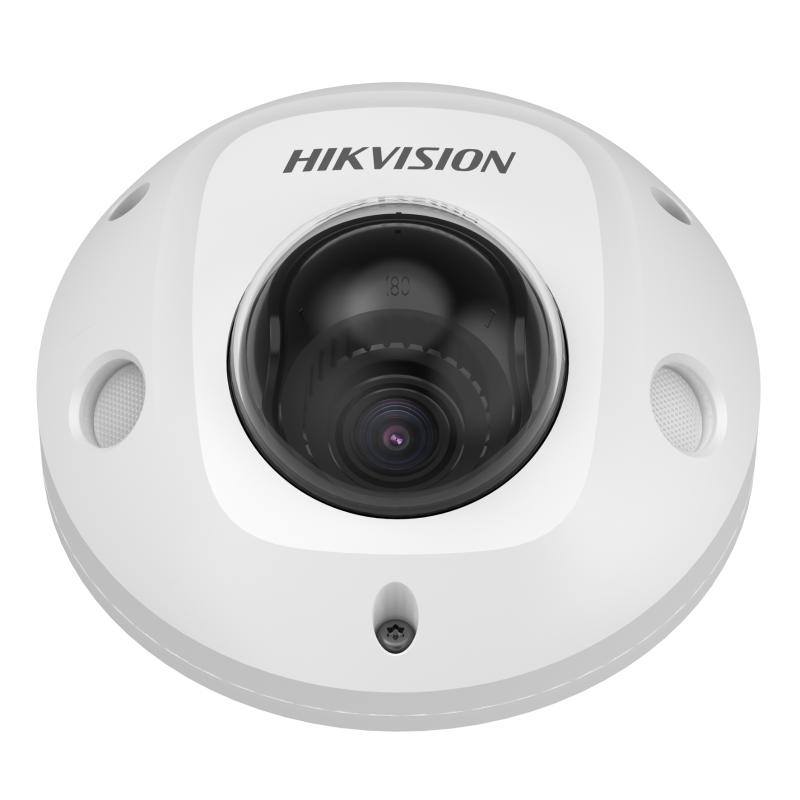

Hikvision Mobile Dome Camera DS-2XM6726G1

Specifications

Image Sensor: 1/2.8″ CMOS Progressive Scan; Min. Illumination: 0.002Lux @ (F1.6, AGC ON), 0lux with IR; Resolution: 2MP; Shutter Speed: 1/3 s to 1/100,000 s; P/N: PAL: 25fps
NTSC: 30fps; Day & Night: IR Cut Filter; Angle Adjustment: Pan:-30°~+30°, Tilt: 0°~75°, Rotate: 0°~ 360°; White Balance: Support 4 white balance configurations: fluorescent lamp, incandescent lamp, warm lamp and natural light;
Support manual/automatic white balance adjustment.; Focal Length: 2mm/2.8mm/4mm/6mm; Focal Length & FOV: 2 mm, horizontal FOV 132°, vertical FOV 77°, diagonal FOV 152°
2.8 mm, horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
4 mm, horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°
6 mm, horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°; Lens Mount: M12; Focus: Manual focus; Max. Aperture: 2mm: F2.25
2.8mm/4mm/6mm: F1.6; Supplement Light Type: Infrared fill light lamp; Smart Supplement Light: Support; IR Wavelength: 850 nm; IR Range: Up to 30 m; Max. Resolution: 1920 × 1080; Main Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720); Sub-Stream: 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
60Hz: 30fps (704 × 576, 640 × 480, 352 × 288, 320 × 240); Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720); Video Compression: Main stream: H.264, H.265, H.264+, H.265+
Sub-stream: H.264, H.265, MJPEG, H.264+, H.265+
Third stream: H.264, H.265, H.264+, H.265+; Video Bit Rate: Main Stream: 256 Kbps to 12288Kbps
Sub-Stream: 256 Kbps to 4096Kbps
Third Stream: 256 Kbps to 12288Kbps; H.264 Type: Baseline Profile/Main Profile/High Profile; H.265 Type: Main Profile; Bit Rate Control: Constant Bit Rate, Variable Bit Rate; Stream Type: Main stream, sub stream, third stream; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region Of Interest (ROI): Support 2 fixed region for (main/sub) stream; Audio Compression: G711U, G711A, G726, AAC, G722, PCM, AAC; Audio Bit Rate: Raw data PCM:256kbps
G711U, G711A, G726_A, AAC,G722.1:≤64kbps; Audio Sampling Rate: 16 kHz; Environment Noise Filtering: Support; Protocols: TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGMP,ICMP,IPV6,UDP,SSL/TLS; Simultaneous Live View: Up to 8 channels; API: ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK; User Management: Up to 16 users, 3 levels: Administrator, Operator and User; Web Browser: IE8+, Chrome45+, Edge41+, Firefox45+; Wide Dynamic Range (WDR): 120 dB; Image Settings: Support rotation mode. Brightness, contrast, saturation and sharpness can be adjusted by browser and client software.; Day/Night Switch: Day/Night/Auto/Schedule; SNR: > 50 dB; Image Enhancement: BLC, HLC, 2DNR ,3DNR; Privacy Mask: Enables configuration, and supports drawing of up to 4 areas; Picture Overlay: Support image overlay, uploading images, enabling, coordinates, etc.; Target Cropping: Support (only the third stream); Backlight Compensation(BLC): Support up, down, left, right, center and custom backlight compensation adjustment; Video Output: Not supported; Ethernet Interface: -ID: 1 RJ45 10M/100M self-adaptive Ethernet port
-IM/ND, IDM: 1 four-core M12 aviation plug; Audio: 1 built-in mic, mono sound; Reset Key: Support; Interface Type: Interpolate; TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering); People Density: Support the detection of passenger congestion in carriages.; Detection: Support the detection of articles and personnel left behind in the carriage.; Linkage Method: Upload to FTP, notify monitoring center, send email, trigger recording; Basic Event: Motion detection, video tampering alarm; Smart Event: Line crossing detection,
Intrusion detection,
Region entrance detection,
Region exiting detection,
Unattended baggage detection,
Object removal detection,
Object detection: detects faces and upload images
Scene change detection,
defocus detection,
Loitering Detection,
People Gathering Detection,
Fast Moving Detection,
Parking Detection,; Product Dimension: 110 mm × 57.4 mm (4.3″ × 2.26″); Package Dimension: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″); Power: PoE: 0.30 A to 0.20 A, max: 7.5 W
DC: 0.83 A to 0.21 A, max:7.5 W; Product Weight: Approx. 452 g (1 lb.); With Package Weight: 252 mm × 160 mm × 95 mm (9.9″ × 6.3″ × 3.7″); Protection: IP67, IK10; Camera Material: Metal; Startup and Operating Conditions: -30 °C to 75°C (-22 °F to 167°F), humidity 95% or less (non-condensing); Language: English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish, Czech; General Function: Anti-flicker, heartbeat, mirror; Software Reset: Support; Power Supply: -ID: 9-36V& PoE (802.3af, 36 V to 57 V)
-IDM: 9-36V& PoE (802.3af, 36 V to 57 V)
-IM/ND: PoE (802.3af, 36 V to 57 V); Power Interface: -ID: Ø 5.5 mm coaxial power plug, DC power supply, or PoE power supply
-IM/ND: four-core M12 aviation plug, PoE power supply; Cable Length: 50 cm; Class: Class B; EMC: FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B）
CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013）
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015IC: ICES-003 Issue 7:2020
KC: KN32:2015,KN35:2015; Safety: UL: UL 60950-1:2014,CAN/CSA C22.2 No. 60950-1-07:2014
CB: IEC 60950-1CE:
CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
LOA: SANS IEC60950-1
BIS: IS 13252(Part 1)2010+A1:2013+A2:2015; Environment: CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
WEEE: 2012/19/EUReach SVHC: Regulation (EC) No 1907/2006
Reach SVHC: Regulation (EC) No 1907/2006; Electrical Safety Protection: IK10(IEC 62262:2002); Automotive and Railway: EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010);
EN45545 (EN 45545-2:2013+A1:2015);
E-MARK (ECE R10)
