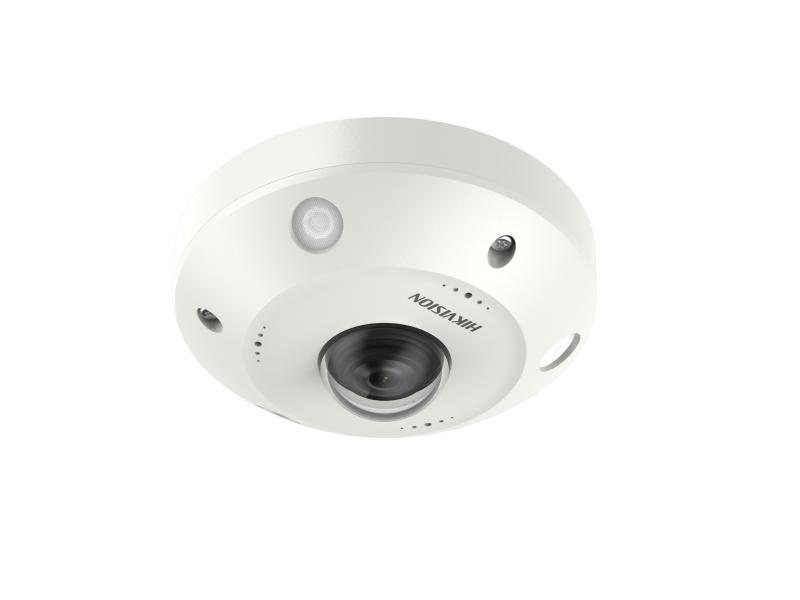

Hikvision Mobile Fisheye Network Camera DS-2XM6365G0

Specifications

Image Sensor: 1/1.8″ Progressive Scan CMOS; Max. Resolution: 3072 × 2048; Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0.001 Lux @ (F1.2, AGC ON); Shutter Time: 1 s to 1/100,000 s; Day & Night: Double Band-Pass Filter; Focal Length & FOV: 1.27 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount); Lens Mount: M12; Aperture: F2.6; Supplement Light Type: IR, 3 LEDs. Each LED is independently controlled.; Supplement Light Range: Up to 15 m IR range; IR Wavelength: 850 nm; Main Stream: 50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280); Sub-Stream: 50Hz: 25fps (720 × 720)
60Hz: 30fps (720 × 720); Video Compression: Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG; Video Bit Rate: 32 Kbps to 16 Mbps; H.264 Type: Baseline Profile/ Main Profile /High Profile; H.265 Type: Main Profile; Scalable Video Coding (SVC): H.265 and H.264 support; Region of Interest (ROI): 4 fixed regions for main stream; Mount Type: Support table, wall, and ceiling mounting; Decoding Mode: Support hardware decoding and software decoding; Display Mode: 16 display modes in total
Software decoding:
Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere
Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ
Hardware decoding:
Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ
Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ; Audio Compression: -S: G.711/G.722.1/G.726/MP2L2/PCM; Audio Bit Rate: -S: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2); Audio Sampling Rate: -S: 8 kHz/16 kHz; Environment Noise Filtering: -S: Yes; Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour; Simultaneous Live View: Up to 20 channels; API: ONVIF (PROFILE S, PROFILE G), ISAPI; User/Host: Up to 32 users. 3 user levels, administrator, operator and user; Security: Password protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF; Network Storage: Support Micro SD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR; Client: iVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200; Web Browser: IE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+; Image Settings: Saturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser; Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In (-S); Wide Dynamic Range (WDR): Digital WDR; Image Enhancement: BLC, HLC, defog, 3D DNR; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format; Ethernet Interface: Without –M: 1 RJ45 10M/100M/1000M self-adaptive Ethernet port
With -M: four-core M12 aviation plug; On-Board Storage: Built-in micro SD/SDHC/SDXC slot, up to 256 GB; Built-in Microphone: -S: 2 Built-in microphones; Audio: -S: 1 Audio input (line in, 3.81 mm), 1 audio output (line out, 3.81 mm);; Alarm: -S: 1-ch alarm input, max. 12 VDC; 1-ch alarm output, max 12 VDC, 30 mA; Reset Key: Yes; Basic Event: Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error; Smart Event: Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Audio exception detection; Power: 24 VDC, 0.40 A, max. 12 W, two-core terminal block
PoE: 802.3af, 36 to 57 VDC, 0.34 A to 0.22 A, max. 12 W
/ND: no power interface, only support PoE power supply; Dimension: Ø136 × 61.8 mm (Ø5.35″ × 2.43″); : Approx. 600 g (1.32 lb.); Startup and Operating Conditions: -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing); General Function: One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter; EMC: FCC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015);
IC (ICES-003: Issue 6, 2016);
KC (KN 32: 2015, KN 35: 2015); Safety: UL (UL 60950-1);
CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); Environment: CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006); Protection: IP66 (IEC 60529-2013), IK10 (IEC 62262: 2002); Automotive and Railway: EMARK/EN45545/EN50155-2017/R118
