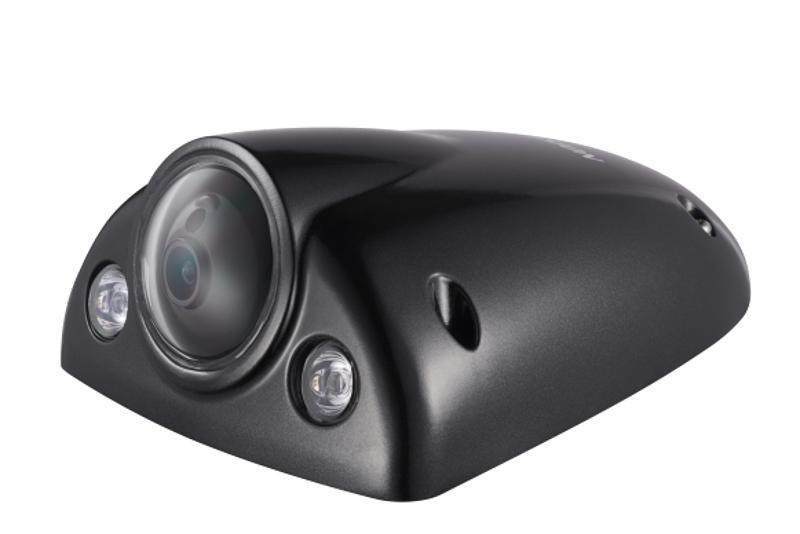

Hikvision Mobile network camera DS-2XM6522G1

Specifications

Min. Illumination: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; P/N: PAL: 25fps
NTSC: 30fps; Image Sensor: 1/2.8″ Progressive Scan CMOS; Shutter Speed: 1/3 s to 1/100,000 s; Case Type: Wedge; Slow Shutter: Yes; Resolution: 2MP; Day & Night: IR Cut Filter; Angle Adjustment: 2.8 mm: pan: -15° to 15°, tilt: 15° to 30°, rotate: -90° to 90°
4 mm/6 mm: pan: -15° to 15°, tilt: 0° to 30°, rotate: -90° to 90°; Focal Length & FOV: 2.8 mm: horizontal FOV 105°, vertical FOV 56°, diagonal FOV 126°
4 mm: horizontal FOV 87°, vertical FOV 44°, diagonal FOV 104°
6 mm: horizontal FOV 53°, vertical FOV 28°, diagonal FOV 62°; Lens Mount: M12; Lens Type: Fixed Lens; Max. Aperture: 2.8 mm/4 mm/6 mm: F 1.6; Smart Supplement Light: Yes; IR Wavelength: 850nm; IR Range: Up to 30m; Max. Resolution: 1920 × 1080; Main Stream: 50Hz:25fps(1920 x 1080, 1280×960, 1280 x 720)
60Hz:30fps(1920 x 1080, 1280×960, 1280 x 720); Sub-Stream: 50Hz:25fps(704 x 576, 640×480, 352 x 288, 320×240)
60Hz:30fps(704 x 576, 640×480, 352 x 288, 320×240); Third Stream: 50Hz:25fps(1920 x 1080, 1280×960, 1280×720, 704×576, 640×480, 352 x 288, 320×240)
60Hz:30fps(1920 x 1080, 1280×960, 1280×720, 704×480, 640×480, 352 x 240, 320×240); Video Compression: Main Stream: H.265 /H.264/H.264+/H.265+
Sub-Stream: H.265 /H.264 / H.264+/H.265+/MJPEG
Third Stream: H.265 /H.264/H.264+/H.265+; Video Bit Rate: Main Stream: 256 Kbps to 12 Mbps
Sub-Stream: 256 Kbps to 4 Mbps
Third Stream: 256 Kbps to 12 Mbps; H.264 Type: BaseLine Profile/Main Profile/High Profile; H.265 Type: Main Profile; Scalable Video Coding (SVC): H.264 and H.265 encoding; Region Of Interest (ROI): Support 2 fixed region for (main/sub) stream; Protocols: TCP/IP,HTTP,HTTPS,DHCP,DNS,DDNS ,RTSP,SNMP,QOS,FTP,RTCP,NTP,UPNP,SMTP,IGMP,ICMP,IPV6,UDP,SSL/TLS; Simultaneous Live View: Up to 8 channels; API: HIKSDK, ONVIF (PROFILE S, PROFILE G,PROFILE T), ISAPI; User Management: Up to 16 users
3 levels: Administrator, Operator and User; Web Browser: IE8+, Chrome45+, Edge41+, Firefox45+; Wide Dynamic Range (WDR): 120 dB; Smart IR: No; Image Settings: Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser; Day/Night Switch: Day/Night/Auto/Schedule; SNR: ＞50dB; Image Enhancement: BLC, HLC, 2DNR ,3DNR; Privacy Mask: 4 regions of privacy mask; Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24bit bmp format; DNR: 3DNR; Ethernet Interface: Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port
-M: 1 four-core M12 aviation plug; Audio: No; Alarm: No; RS-485: No; Reset Key: Yes; Heater: Yes; TF Card Storage: Built-in Micro TF Slot, up to 256 GB(not for baseline. Note the Micro-TF card capacity when ordering); Linkage Method: Upload to FTP, notify monitoring center center, send email, trigger recording; Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, TF card error); Smart Event: Line crossing detection,
Intrusion detection,
Region entrance detection,
Region exiting detection,
Unattended baggage detection,
Object removal detection,
Object detection: detects faces and upload images
Scene change detection,
defocus detection,
Loitering Detection,
People Gathering Detection,
Fast Moving Detection,
Parking Detection,; Product Dimension: Camera: 163.7 mm × 122.6 mm × 65.1 mm (6.4″ × 4.8″ × 2.6″)
With package: 252 mm × 190 mm × 108 mm (9.9″ × 7.5″ × 4.3″); Power Interface: -I/ND: RJ45 interface, PoE power supply
-ID: Ø 5.5 mm coaxial power plug, DC
-IDM: two-core Molex connector, DC power supply
-IM/ND: four-core M12 aviation plug, PoE power supply; Power Consumption: -ID, -IDM: 9~36 V DC, max. 10 W
-I/ND, -IM/ND: PoE: (802.3af, 36 V to 57 V), max. 10 W; Protection: IP68(IEC 60529-2013), IK10(IEC 62262:2002), IP69K(ISO 20653:2013); Power Supply: -ID, -IDM: 9-36V, two-core terminal block, reverse polarity protection&PoE802.3af;
-I/ND, -IM/ND: PoE: 802.3af, Type 1 Class 3; Camera Material: Metal; Product Weight: Camera: Approx. 905 g (2.0 lb.)
With package: 1271 g (2.8 lb.); Startup and Operating Conditions: -40 °C to 75 °C (-40 °F to 167°F), humidity less than 95% or less (non-condensing); Language: Support English, French, German, Russian, Italian, Korean, Portuguese, Spanish, Turkish, Polish,Czech; General Function: Anti-flicker, 3 streams, heartbeat, mirror, privacy mask; Electrical Safety Protection: IK10(IEC 62262:2002）; EMC: FCC: FCC-SDoC(ANSI C63.4,FCC Part15 sub B）
CE: CE-EMC(EN 55024:2010 +A1:2015,EN 55032:2015,EN 61000-3-2:2014,EN 61000-3-3:2013）
RCM: AS/NZS 60950.1:2003 + Am1, Am2 and Am3,AS/NZS CISPR 32:2015IC: ICES-003 Issue 7:2020
KC: KN32:2015,KN35:2015; Safety: CB: IEC 60950-1CE:
CE-LVD(EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013)
LOA: SANS IEC60950-1
BIS: IS 13252(Part 1)2010+A1:2013+A2:2015; Environment: CE: CE-RoHS(RoHS Directive 2011/65/EU+2015/863)
Reach SVHC: Regulation (EC) No 1907/2006; Automotive and Railway: EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2- 2:2007, IEC 60068-2-30:2005, IEC 61373:2010);
EN45545 (EN 45545-2:2013+A1:2015);
E-MARK (ECE R10)
