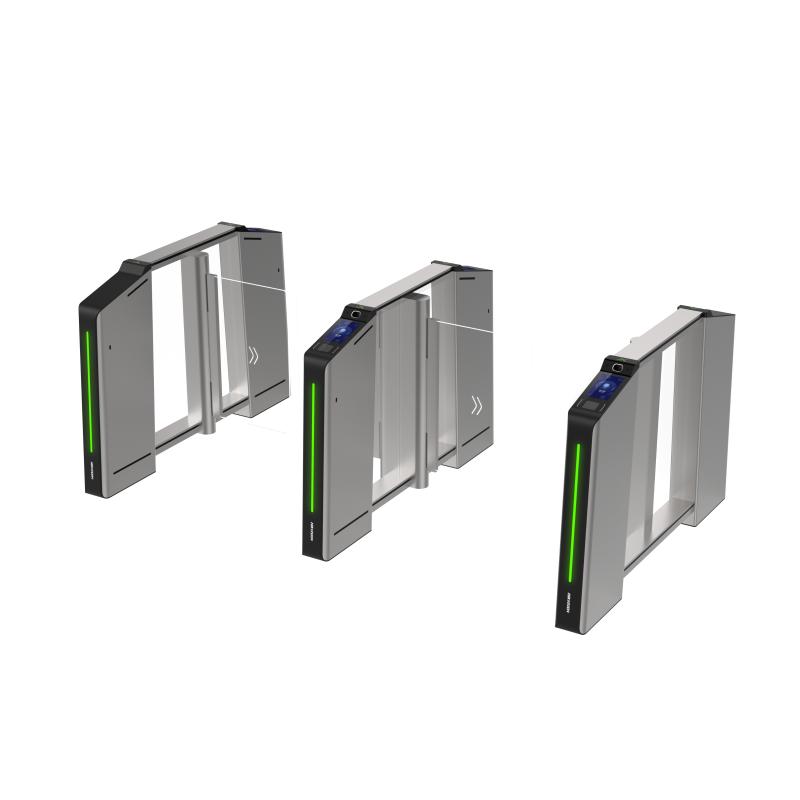

Hikvision Pro smart swing barriers DS-K3B631TX-L/MPiQL-Dp65

Specifications

Motor: Servo motor; MCBF: ≥ 12 million times; IR light detectors: 20 pairs; Screen size: 6.95 inch; Operation method: Touch (only entrance side); Resolution: 600 * 1024; Sensor: 2 MP; Resolution: 1920 x 1080; Wired network: 100Mbps self-adaptive Ethernet; Network interface: 1; Lock control: 2; Exit button: 2; Alarm output: 2; TAMPER: YES; RS-485: 4; RS-232: 2; Wiegand: Wiegand in x 2; Fire alarm input: 1; Case input: 2; Access controller: Supplied; Supercapacitor: Supplied; Network switch: Supplied; Face capacity: 50,000; Card capacity: 250,000; Event capacity: 1,000,000; QR code: Support; Face recognition distance: ≤ 2m; Face recognition accuracy rate: ≥99%; Face recognition duration: 0.2 s; Configuration via PC Web: Support; Advertisement: Support; Built-in face recognition: Support; Communication protocol: ISAPI,ISUP5.0; Throughput: 30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method; Lane width: 550 mm to 1100 mm (21.65″ to 43.31″); Barrier material: Acrylic glass; Pedestal material: SUS304 stainless steel with the thickness of 1.5 mm (0.06″); Supplement light: Yes; Power: 100 to 240 VAC; 50 to 60 Hz; Power consumption: 80W (stand by); Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Working humidity: 10% to 95% (No Condensing); Dimensions: Without Packaging: 1500 mm × 130 mm × 1000 mm (59.05”× 5.12”× 39.37”)
With Packaging: 1690 mm × 465 mm × 1105 mm (66.54”× 18.31”× 43.5”); : (Net) Left: 62 kg (136.7 lbs); Middle: 105 kg (231.5 lbs); Right: 64 kg (141.1 lbs);
(Rough) Left: 80 kg (176.4 lbs); Middle: 123.2 kg (271.6 lbs); Right: 82 kg (180.8 lbs);; Approval: CE/FCC/CB/RoHS/REACH/WEEE; Lane width: 550;650;750;900;1100; Pedestal length: 1500 mm; Module selection: YES; Pedestal width: 130 mm; Wall distance: 10 mm; Base: YES; Barrier material: Acrylic glass; Application environment: Indoor; Authentication mode: Card;Face;QR code; Card type: M1;Desfire; Recommended width: 650 mm; Base model: DS-B631-BASE; Product type: Swing barrier; Remote controller type: 433Mhz;868Mhz; Movement Protrusion Width: 77 mm; Built-in face recognition: YES; Built-in display: YES; Convert Face: YES; Door wing gap: Default:50mm; Integrated Auth: Card;Face;QR code;Screen
