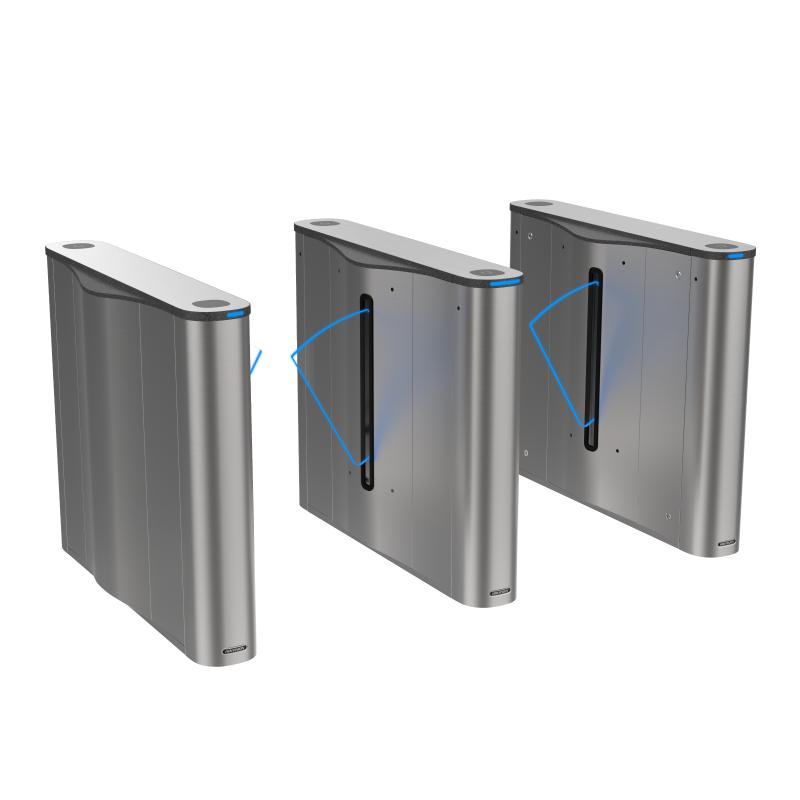

Hikvision Value Flap Barriers DS-K3Y411BX-M/MPg-Dp55

Specifications

Motor: BLDC motor; MCBF: ≥ 3 million times; IR light detectors: 6 pairs; Network interface: 1; Lock control: 2; Exit button: Main: 1
Sub: 1; Alarm output: 2; RS-485: Main: 2
Sub: 2; RS-232: Main: 1
Sub: 1; Fire alarm input: 1; Card capacity: 500,000; Event capacity: 500,000; Throughput: 20 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.; Lane width: 550MM; Barrier material: PMMA; Pedestal material: SUS304 stainless steel 1.2 mm; Power consumption: Standby: 40 W
Working: 80 W
Peak: 130 W; Working temperature: -20 °C to 70 °C (-4 °F to 158 °F); Working humidity: 10% to 95% (No condensing); Dimensions: Without package: 1206 mm × 315.2 mm × 990 mm (47.48″ × 12.41″ × 38.98″) With package: 1340 mm × 415 mm × 1090 mm (52.76″ × 16.34″ × 161.02″); Installation: Use four M12 expansion screws; : Net: Left: 45.59 kg (99.21 lb) Middle: 55.79 kg (123.00 lb) Right: 48.33 kg(106.55 lb) Gross: Left: 82.72 kg (182.37 lb) Middle: 93.10 kg (205.25 lb) Right: 85.64 kg (188.80 lb); Power supply method: 100 to 240 VAC, 50 to 60 Hz
