The Hikvision DS-K3G200LX is a flap barrier turnstile gate designed for controlled pedestrian access. It features a single lane and an integrated Mifare card reader. The turnstile is made of durable stainless steel and has a sleek, modern design that is suitable for a variety of indoor environments. This model is a reliable solution for access control in offices and commercial buildings.

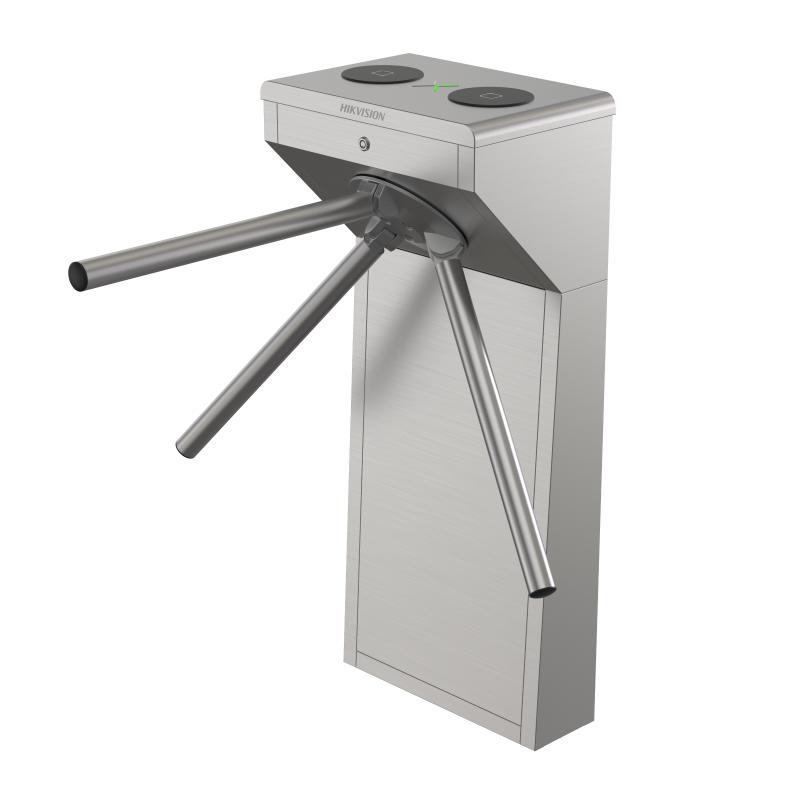

Hikvision Value Tripod Turnstile DS-K3G200LX
Hikvision DS-K3G200LX flap barrier turnstile. Single lane with a Mifare card reader for controlled pedestrian access in indoor spaces.
Specifications
MCBF: 2 Million; Exit button: x 2; TAMPER: NA; Fire alarm input: x 1; Access controller: Not included; Network switch: Not included; Power supply for face recognition module: Not included; Keyfob: Not supported; Throughput: More than 25 persons per minute
The actual throughput is affected by the person passing rate and passing method.; Lane width: 550mm; Barrier material: SUS304 stainless steel pipe; Pedestal material: SUS304 stainless steel 1.0mm(0.03”); Indicator: Yes, except for “Pg” type; Power consumption: 25W (stand by); Working temperature: -20 °C to 65 °C (-4 °F to 149 °F); Working humidity: 0% to 95% (No condensing); Dimensions: Without package: 426 mm ×268 mm × 982.5 mm (16.77″ × 10.55″ × 38.68″)
With package: 700 mm × 430 × 1120 mm (27.56″ × 16.93″ × 44.09″); : Without package:21 kg (46.3 lb)
With package: 29.5 kg (64.9 lb); Approval: CE, CB, RoHS, REACH, WEEE; Lane width: 550mm; Pedestal length: 426mm; Module selection: NO; Pedestal width: 286mm; Wall distance: 60mm; Base: YES; Barrier material: Stainless steel pipe; Base model: DS-K3G200X-BASE; Product type: Tripod Turnstile; Remote controller type: NA
