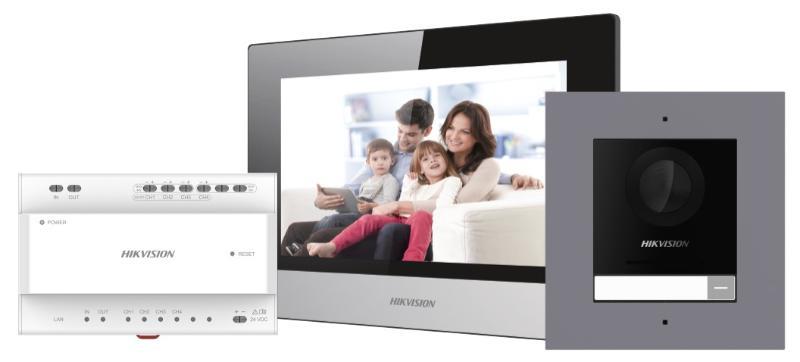

Hikvision Villa Two Wire Kit DS-KIS702(B)

Specifications

Processor: Embedded microcontroller; Operation system: Embedded Linux operation system; Operation mode: One touch key; Camera: 2MP super definition camera; Resolution: Main stream: 1920 × 1080, (720p
configurable); sub stream: 720 × 480; Night vision: Support low light and IR light supplement
mode; Backlight compensation: Support; Digital noise reduction: Support; WDR: True WDR; Field of view: Horizontal 146°, vertical 82°; Video Compression Standard: H.264; Stream: Main stream: 1080p@30fps, 720p@30fps
(configurable); sub stream: D1; Motion detection: Support; Flash-avoid frequency: 50 Hz, 60 Hz; Audio input: Built-in omnidirectional microphone; Audio output: Loudspeaker, 20 cm sound effect > 80 db; Audio quality: Noise suppression and echo cancellation; Audio compression standard: G.711 U; Audio compression Rate: 64 Kbps; Audio intercom: Full-duplex two-way audio intercom; Sub door station capacity: 16; Debugging port: 1; RS-485: 1 (1 for Hikvision’s sub module communication); Alarm input: 4 (2 exit butttons and 2 door contacts by default); Lock control: 2 (2 relay, max to 30 VDC, 2 A); TAMPER switch: 1; Power interface: 12 VDC power output (12 V, 500 mA Max.); Working temperature: -40 °C to 60 °C (-40 °F to 140 °F); Working humidity: 10% to 90%; Installation: Surface mounting; Protection level: IP 65; Button: 1; Power input: Powered by KAD704Y or KAD706Y series distribution; Operation system: Embedded Linux operation system; Memory: 128 MB; Flash: 32 MB; Display screen: 7-inch TFT LCD; Display resolution: 1024 × 600; Operation method: Capacitive touch; Audio input: Built-in omnidirectional microphone; Audio output: Built-in loudspeaker; Audio quality: Noise suppression and echo cancellation; Volume: Local or software control; Audio compression standard: G.711 U, G.711 A; Audio compression Rate: 64 Kbps; Wired network: Two-wire network; Wireless network: Wi-Fi 802.11b/g/n; Protocol: TCP/IP, SIP, RTSP; Network interface: Two-wire interface; RS-485: 1; Alarm input: 8 zones alarm input; Relay output: 2; TF card: Support, Max. 128 GB; Power supply: Powered by KAD704Y or KAD706Y series distributor; Power consumption: ≤ 4 W; Working temperature: -10 °C to 50 °C (14 °F to 122 °F); Working humidity: 10% to 90%; Dimensions (W × H × D): 200 mm × 140 mm × 23.6 mm (7.87″ ×
5.51″ × 0.93″); Network interface: 1 RJ45; Two-wire interface: 6 (2 for cascading and 4 for devices); Signal indicator: 6; Power indicator: 1; Reset: 1; Power supply: 24 VDC; Power consumption: CH1 to CH3＜4 W, CH4＜8 W; Working temperature: -10 °C to 55 °C (14 °F to 131 °F); Working humidity: 10% to 90%
