The Hikvision DS-PDTT15AM-LM is a wireless triple-tech detector for alarm systems. It is designed to detect motion using PIR, microwave, and anti-masking technology, reducing false alarms. The detector is pet-friendly, making it an ideal solution for homes with pets. It is easy to install and is a reliable solution for securing residential and commercial properties.
Wired Alarms

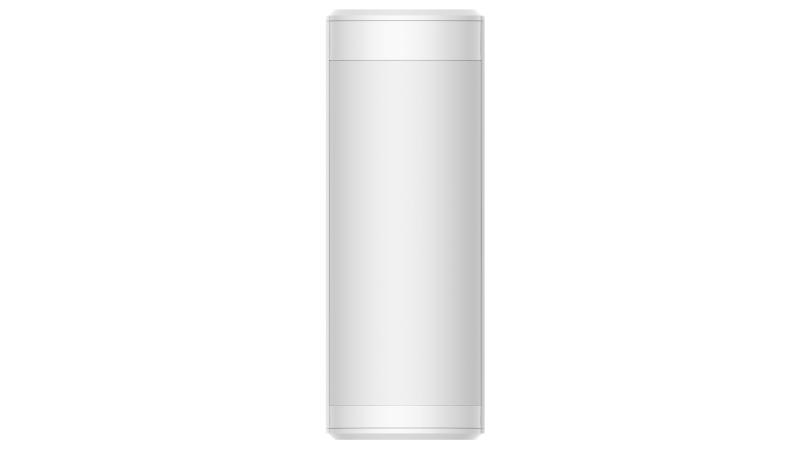

Hikvision Wired Triple Signal Detector DS-PDTT15AM-LM
Hikvision DS-PDTT15AM-LM wireless triple-tech detector. PIR, microwave, and anti-masking for reliable motion detection.
Specifications
Detection Method: Passive Infrared;Microwave; Detection Range: 15m; Detection Angle: 90° @ 180° adjustable; Detection Zones: 92; Detectable Speed: 0.3～2m/s; Sensitivity: Auto;Low; White Light Filter: 10000lux; Microwave Frequency: 24GHz(24.15～24.25GHz); Pet Immunity: 40Kg; Digital Temperature Compensation: Support; Anti-masking: Support; Adaptable Coverage: Support
Pattern mask included; Digital Processing: Tri-Signal Logic; Sealed Optics: Support; Tamper Protection: Front;Rear; Anti-Sway Analytics: Support; Alarm Output: Normally Closed; LED Indicator: Green(Top PIR), Red(Microwave), Orange(Bottom PIR)Green+Orange(Mask), Blue(Alarm); Transmission Method: Wired; Power Consumption: 30mA （Standard）
220mA Max （With lighting on）; Power Supply: 9 to 16 VDC; Typical Voltage: 12 VDC; Operation Temperature: -25 °C to 60 °C (-13 °F to 140 °F); Storage Temperature: -25 °C to 60 °C (-13 °F to 140 °F); Operation Humidity: 10% to 90%; IP Rate: IP65; Dimension(WxHxD): 75mm × 202mm × 73mm; : 350g; Mounting Height: 0.8 to 1.2m; Mounting Method: Wall; Application Scenario: Outdoor
DataSheet
Related products
-
Wired AlarmsBuy via WhatsApp

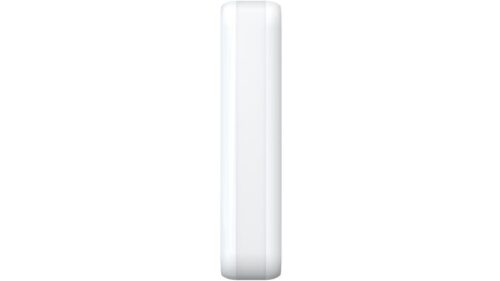

Hikvision Wired Dual-Tech AM Curtain Detector DS-PDC10DM-VG3
Add to cartHikvision DS-PDC10DM-VG3 wireless curtain detector. Detects motion in a curtain-shaped area for narrow passages, doors, and windows.
-
Wired AlarmsBuy via WhatsApp

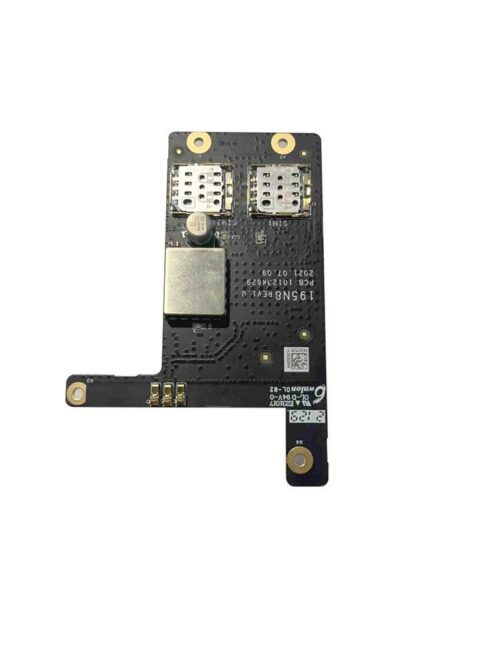

Hikvision GPRS Communication Module DS-PM2-G
Add to cartHikvision DS-PM2-G wireless repeater. Extends the wireless range of alarm systems, ideal for larger properties.
-
Wired AlarmsBuy via WhatsApp

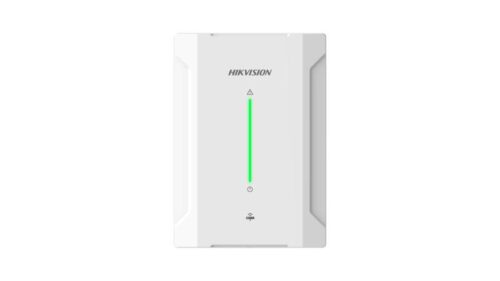

Hikvision Tri-X Wireless Receiver DS-PM1-RT-HWE
Add to cartHikvision DS-PM1-RT-HWE wired relay module. Controls lights and garage doors, enhancing the functionality of an alarm system.
-
Wired AlarmsBuy via WhatsApp

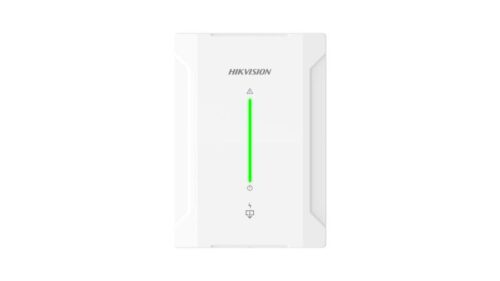

Hikvision Wired 4-way power relay DS-PM1-O4H-H
