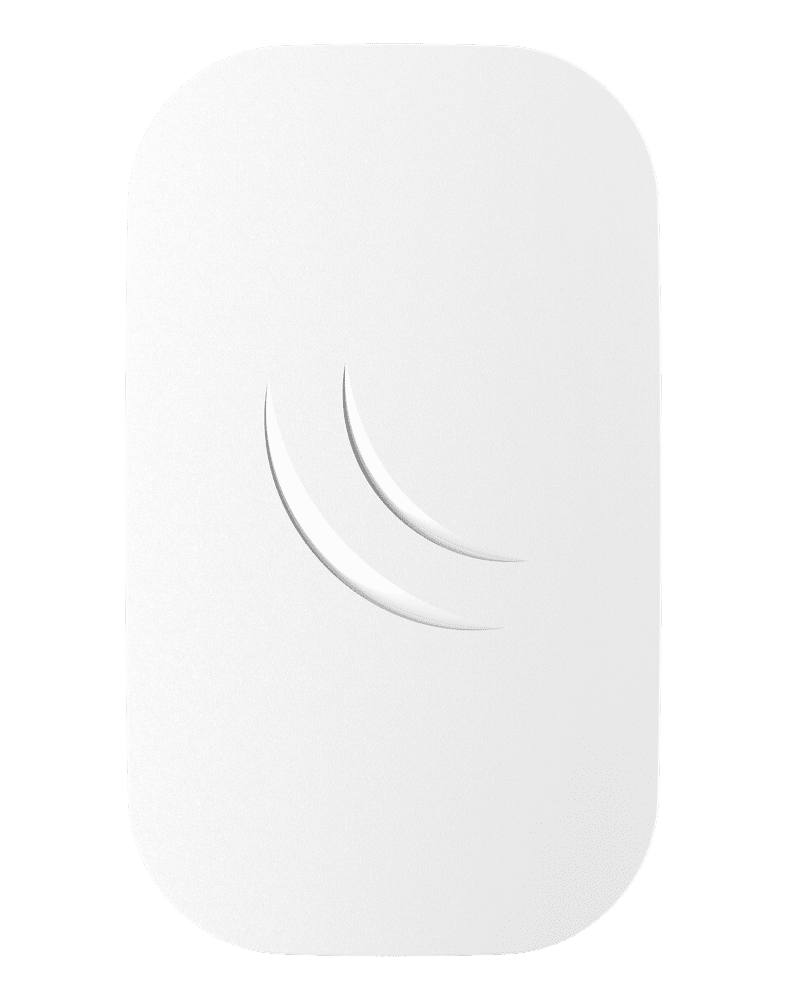

Introducing the MikroTik cAP lite (RBcAPL-2nD), a remarkably tiny and cost-effective access point. Bridge Technologies offers this device, perfect for public locations and hospitality businesses. Think hotels, airports, and shopping malls. Its clean, simple design blends seamlessly into any environment.
The cAP lite features dual-chain 2.4 GHz 802.11b/g/n wireless. It delivers a maximum data rate of 300 Mbit/s. Its 1.5 dBi integrated antennas provide reliable Wi-Fi coverage. The device includes two different casings for easy swapping. You can even customize its looks with provided 3D printer-friendly design files.
A 650 MHz CPU and 64 MB of RAM power the cAP lite. This hardware efficiently handles networking tasks. It boasts a single 10/100 Ethernet port for wired connectivity. Furthermore, it supports Power over Ethernet (PoE) input (802.3af/at or passive PoE). This simplifies installation and reduces cable clutter.
Running MikroTik’s powerful RouterOS (License Level 4), the cAP lite offers extensive network management features. You can configure bandwidth shaping, implement robust firewall rules, and manage user access. Additionally, it functions as a perfect companion for MikroTik’s CAPsMAN. This allows centralized management of multiple access points from one location.
Choose the MikroTik cAP lite for a discreet, reliable, and highly customizable Wi-Fi solution. It delivers essential performance and versatile deployment options for various indoor settings.
Specifications
{
“Specifications – Product code”: “RBcAPL-2nD”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9533”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “650 MHz”,
“Specifications – Dimensions”: “Wall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS”,
“Specifications – Size of RAM”: “64 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 100’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$29.00”,
“Wireless capabilities – Wireless 2.4 GHz Max data rate”: “300 Mbit/s”,
“Wireless capabilities – Wireless 2.4 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless capabilities – Antenna gain dBi for 2.4 GHz”: “1.5”,
“Wireless capabilities – Wireless 2.4 GHz chip model”: “QCA9533”,
“Wireless capabilities – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Ethernet – 10/100 Ethernet ports”: “1”,
“Powering – MicroUSB input Voltage”: “5 V”,
“Powering – Number of DC inputs”: “2 (MicroUSB, PoE-IN)”,
“Powering – Max power consumption”: “4 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “10-60 V”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “IP20”,
“Wireless specifications – 1MBit/s”: “22”,
“Wireless specifications – 11MBit/s”: “22”,
“Wireless specifications – 6MBit/s”: “20”,
“Wireless specifications – 54MBit/s”: “18”,
“Wireless specifications – MCS0”: “20”,
“Wireless specifications – MCS7”: “16”
}
