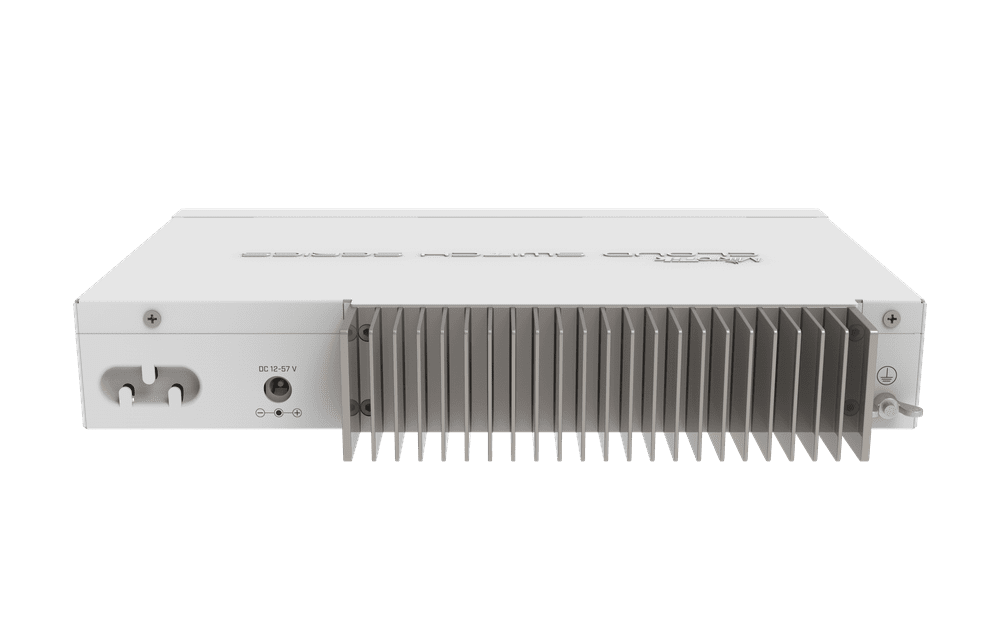

The MikroTik CRS309-1G-8S+IN is a very compact yet powerful switch. It is perfectly designed for high-speed fiber networking. This robust device features eight 10 Gigabit SFP+ ports. These provide lightning-fast fiber connections. It also includes one Gigabit Ethernet port. This port can be used for management or connectivity.
This reaches 81 Gigabits per second. Its total switching capacity is 162 Gigabits per second. This ensures very efficient data handling. It is an ideal upgrade for various network setups.
Managing the MikroTik CRS309-1G-8S+IN is straightforward. It supports dual-boot capability. Users can choose between RouterOS and SwOS. RouterOS offers comprehensive Layer 3 routing features. SwOS provides simpler Layer 2 switching capabilities. This flexibility allows customization. The switch boasts a dual-core 800 MHz CPU. It has 512 MB of RAM. Its passive cooling design ensures silent operation. This makes it suitable for noise-sensitive environments.
This MikroTik switch excels in diverse applications. It is perfect for aggregating high-speed fiber feeds. It efficiently manages vast amounts of data. Its compact size allows flexible placement. This ensures seamless communication and data flow. It also serves as a strong foundation for new, rapidly expanding networks. This professional-grade switch offers superior performance.
Specifications
{
“Specifications – Product code”: “CRS309-1G-8S+IN”,
“Specifications – Architecture”: “ARM 32bit”,
“Specifications – CPU”: “98DX8208”,
“Specifications – CPU core count”: “2”,
“Specifications – CPU nominal frequency”: “800 MHz”,
“Specifications – Switch chip model”: “98DX8208”,
“Specifications – Dimensions”: “272 x 191 x 44 mm”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS / SwitchOS”,
“Specifications – Size of RAM”: “512 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$269.00”,
“Powering – Number of DC inputs”: “2 (DC jack, PoE-IN)”,
“Powering – DC jack input Voltage”: “12-57 V”,
“Powering – Max power consumption”: “23 W”,
“Powering – Max power consumption without attachments”: “17 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “18-57 V”,
“Ethernet – 10/100/1000 Ethernet ports”: “1”,
“Fiber – SFP+ ports”: “8”,
“Peripherals – Serial console port”: “RS232”,
“Other – CPU temperature monitor”: “Yes”,
“Other – Beeper”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “IP20”
}
