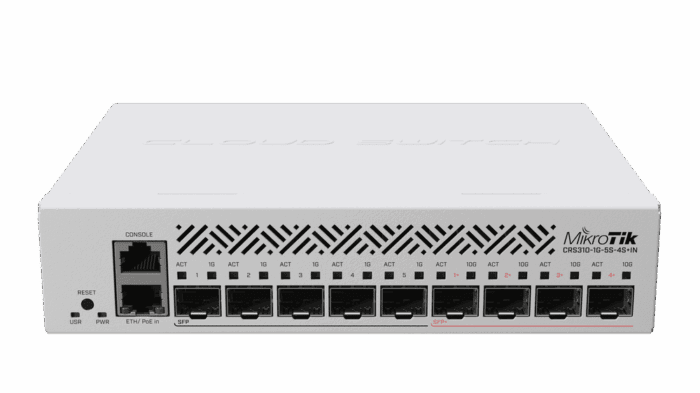

The MikroTik CRS310-1G-5S-4S+IN is a versatile cloud router switch. It is engineered for diverse network requirements. This compact device includes one Gigabit Ethernet port. It features five 1 Gigabit SFP ports. Additionally, it has four 10 Gigabit SFP+ ports. These ports provide excellent fiber and copper connectivity. The switch delivers impressive non-blocking throughput.
Managing the MikroTik CRS310-1G-5S-4S+IN is user-friendly. It features a full-size USB port for quick configuration. This simplifies initial setup and troubleshooting tasks. The device offers dual-boot capability. It supports both RouterOS and SwOS. RouterOS provides comprehensive Layer 3 routing functions. SwOS delivers simpler Layer 2 switching capabilities. This flexibility allows users to choose their preferred system.
This MikroTik switch excels in diverse applications. It is perfect for extending fiber connections over long distances. It manages high-bandwidth data efficiently. Its mixed port types support various devices. This ensures seamless communication and data flow. The CRS310-1G-5S-4S+IN integrates easily into existing infrastructures. It also serves as a strong foundation for new, evolving networks. This professional-grade switch offers superior performance. It is engineered to meet everyday networking challenges. Reliability and high efficiency are its core strengths. It is a strategic choice for expanding network infrastructure.
Specifications
{
“Specifications – Product code”: “CRS310-1G-5S-4S+IN”,
“Specifications – Architecture”: “ARM 32bit”,
“Specifications – CPU”: “98DX226S”,
“Specifications – CPU core count”: “2”,
“Specifications – CPU nominal frequency”: “800 MHz”,
“Specifications – Switch chip model”: “98DX226S”,
“Specifications – Dimensions”: “200 x 166 x 44 mm”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS v7 / SwitchOS”,
“Specifications – Size of RAM”: “256 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – Suggested price”: “$199.00”,

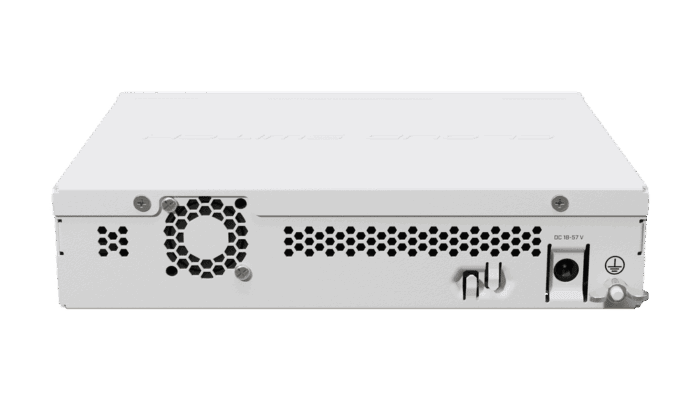

“Powering – Number of DC inputs”: “2 (DC jack, PoE-IN)”,
“Powering – DC jack input Voltage”: “18-57 V”,
“Powering – Max power consumption”: “20 W”,
“Powering – Max power consumption without attachments”: “8 W”,
“Powering – Cooling type”: “1 fan”,
“Powering – PoE in”: “802.3af/at”,
“Powering – PoE in input Voltage”: “18-57 V”,
“Ethernet – 10/100/1000 Ethernet ports”: “1”,
“Fiber – SFP ports”: “5”,
“Fiber – SFP+ ports”: “4”,
“Peripherals – Serial console port”: “RJ45”,
“Other – CPU temperature monitor”: “Yes”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “20”
}
