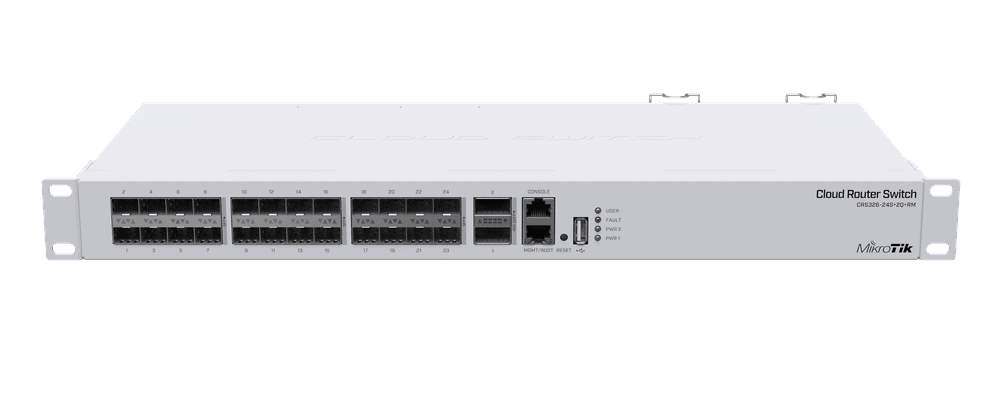

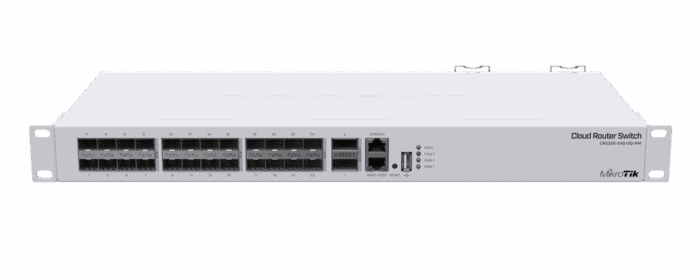

The MikroTik CRS326-24S+2Q+RM Switch is an exceptional cloud router switch. It is designed for demanding network environments. This device features twenty-four 10 Gigabit SFP+ ports. It also includes two 40 Gigabit QSFP+ ports. These provide remarkably fast fiber connections.
The switch offers a total non-blocking throughput. This reaches an impressive 320 Gigabits per second. Its switching capacity is 640 Gigabits per second. The forwarding rate is 252 million packets per second. This ensures smooth data handling.
MikroTik CRS326-24S+2Q+RM Switch is an ideal upgrade for high-data scenarios. This includes large data centers and Internet service providers. The CRS326-24S+2Q+RM elevates network performance significantly. It meets the rigorous demands of modern digital infrastructures. This switch is a powerful networking solution.
Managing the CRS326-24S+2Q+RM is remarkably easy. It features a full-size USB port for quick configuration. This streamlines the initial setup process. The device also boasts a dual power supply setup. This provides crucial redundancy. It eliminates unexpected downtime, ensuring continuous operation. You can choose your preferred operating system.
This switch supports both RouterOS and SwOS. RouterOS offers comprehensive routing capabilities. It provides advanced Layer 3 features. SwOS delivers a simpler, yet powerful, switch-specific interface. This dual-boot option provides great flexibility.
Specifications
{
“Specifications – Product code”: “CRS326-24S+2Q+RM”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9531”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “650 MHz”,
“Specifications – Switch chip model”: “98DX8332”,
“Specifications – Dimensions”: “443 x 200 x 44 mm”,
“Specifications – RouterOS license”: “5”,
“Specifications – Operating System”: “RouterOS v7 / SwitchOS”,
“Specifications – Size of RAM”: “64 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-20°C to 60°C”,
“Specifications – Suggested price”: “$599.00”,

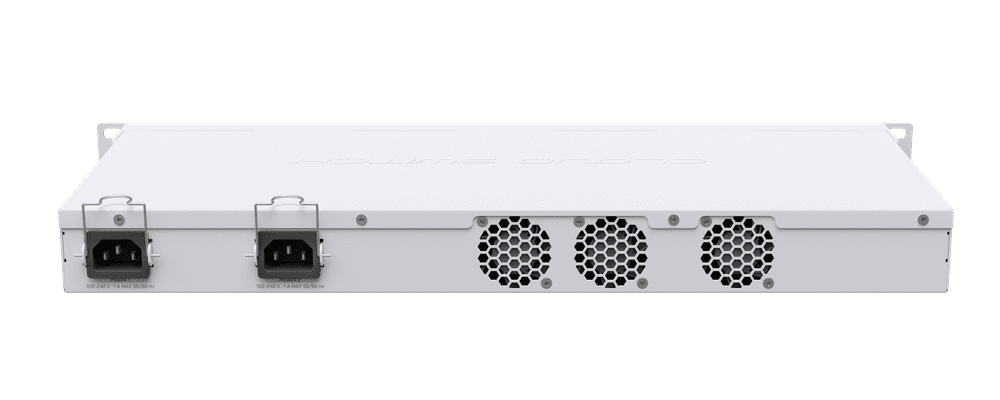

“Powering – Number of AC inputs”: “2”,
“Powering – AC input range”: “100-240”,
“Powering – Number of PSU slots”: “2”,
“Powering – Frequency (Hz)”: “50-60”,
“Powering – Max power consumption”: “69 W”,
“Powering – Max power consumption without attachments”: “42 W”,
“Powering – Cooling type”: “3 fans”,
“Ethernet – 10/100 Ethernet ports”: “1”,
“Fiber – SFP+ ports”: “24”,
“Fiber – Number of 40G QSFP+ ports”: “2”,
“Peripherals – Serial console port”: “RJ45”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB type A”,
“Peripherals – Max USB current (A)”: “1”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “IP20”
}
