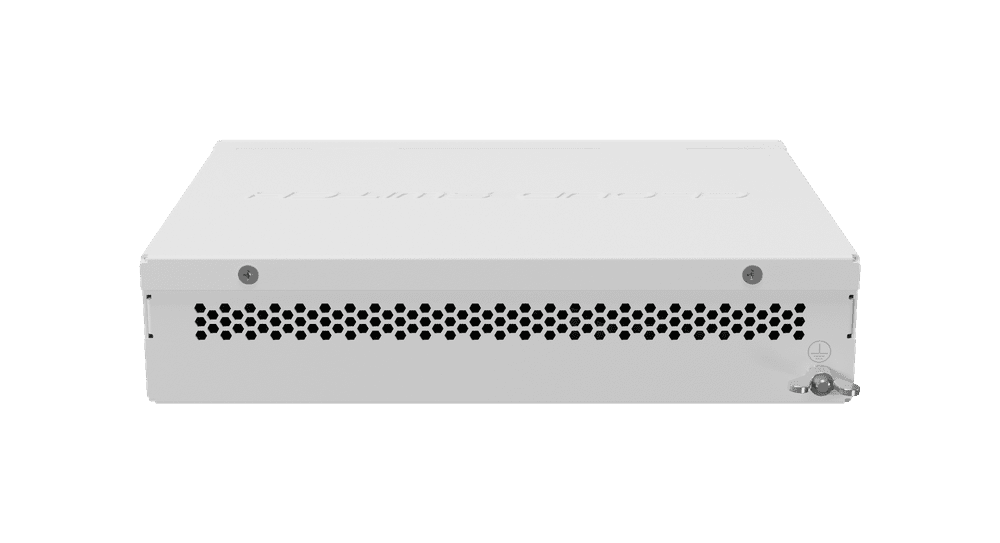

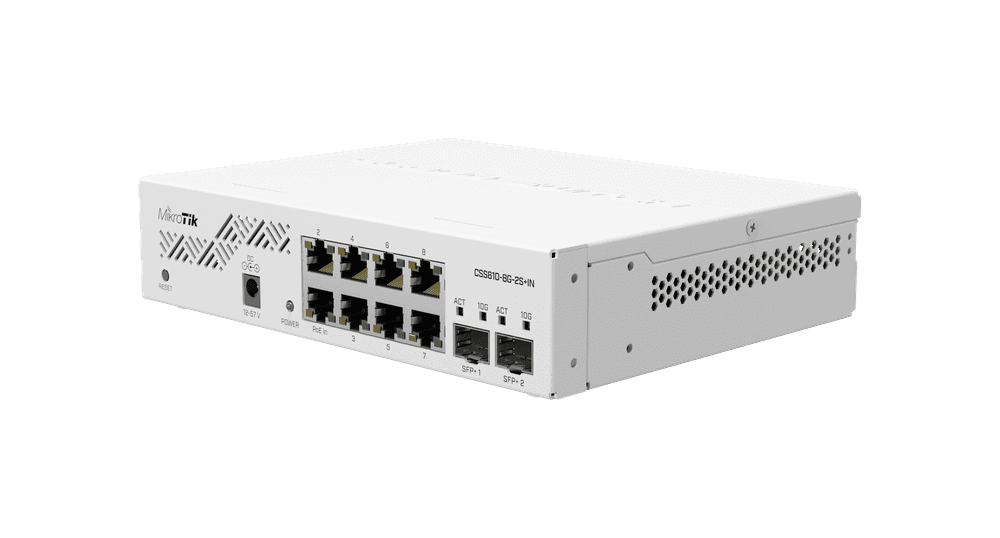

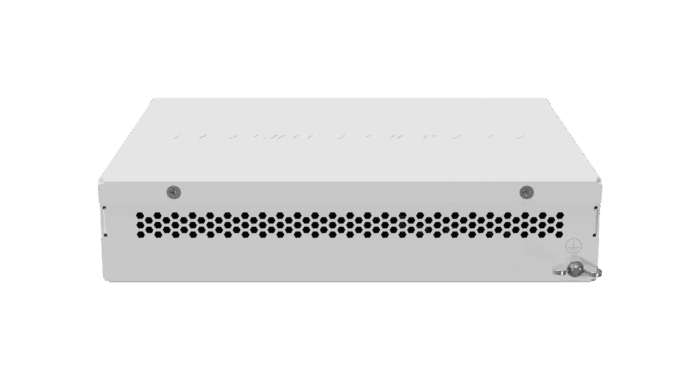

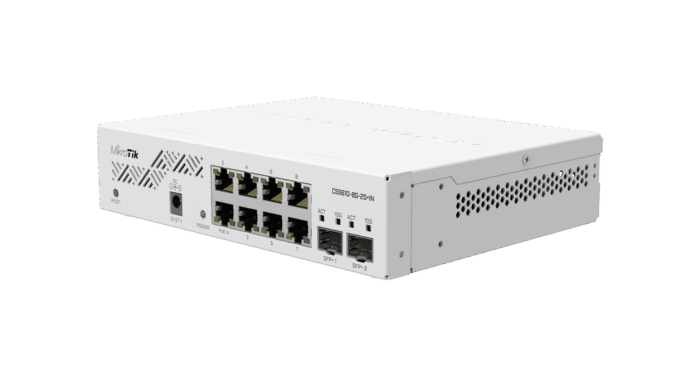

MikroTik CSS610-8G-2S+IN Switch

MikroTik CSS610-8G-2S+IN Cloud Smart Switch. 8x Gigabit and 2x 10G SFP+ ports. Affordable, high-speed switching for demanding networks.

SKU: CSS610-8G-2S+IN Category: Brand:
Guaranteed Safe Checkout

The MikroTik CSS610-8G-2S+IN is a very compact and powerful switch. It is perfectly designed for small to medium-sized networks. This versatile device features eight Gigabit Ethernet ports. It also includes two 10 Gigabit SFP+ ports. These provide high-speed uplinks for demanding connections. The SFP+ ports support both 1.25 Gb SFP and 10 Gb SFP+ modules. This ensures flexible fiber connectivity options.

Managing the MikroTik CSS610-8G-2S+IN is remarkably simple. It runs MikroTik’s dedicated SwOS Lite operating system. This system is optimized for core switch functions. SwOS is easily configurable through a user-friendly web-based GUI. This provides intuitive control over network settings. You can manage port-to-port forwarding. It allows for MAC filtering and VLAN configuration. Broadcast storm control is also available. The switch supports traffic mirroring. It includes bandwidth limitation features. A passive cooling design ensures silent operation.

This MikroTik switch excels in diverse applications. It is perfect for extending network capacity efficiently. It manages data flow across many connected devices with ease. Its compact size and included rack ears allow flexible placement. This ensures seamless communication and data flow. The CSS610-8G-2S+IN integrates easily into existing infrastructures.

Specifications

{
“Specifications – Product code”: “CSS610-8G-2S+IN”,
“Specifications – Switch chip model”: “88E6193X”,
“Specifications – Dimensions”: “200 x 164 x 44 mm”,
“Specifications – Operating System”: “SwitchOS Lite”,
“Specifications – Storage size”: “64 KB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-20°C to 60°C”,
“Specifications – Suggested price”: “$119.00”,
“Powering – Number of DC inputs”: “2 (DC jack, PoE-IN)”,
“Powering – DC jack input Voltage”: “12-57 V”,
“Powering – Max power consumption”: “11 W”,
“Powering – Max power consumption without attachments”: “5 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “12-57 V”,
“Ethernet – 10/100/1000 Ethernet ports”: “8”,
“Fiber – SFP+ ports”: “2”,
“Certification & Approvals – Certification”: “CE, EAC, ROHS”,
“Certification & Approvals – IP”: “IP20”
}

DataSheet

Click Here for the DataSheet
