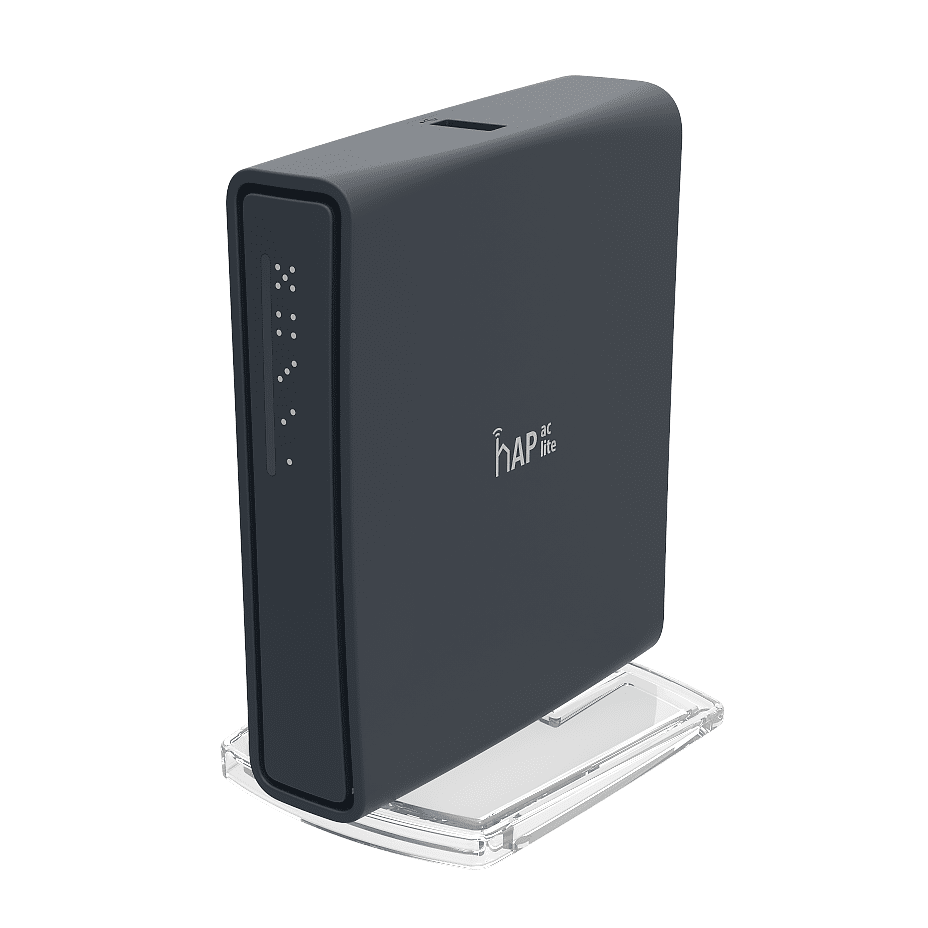

Elevate your home or small office network with the MikroTik hAP ac lite TC (RB952Ui-5ac2nD-TC), a versatile and cost-effective dual-concurrent access point available at Bridge Technologies. This compact router delivers reliable Wi-Fi coverage across both 2.4 GHz and 5 GHz frequencies simultaneously, ensuring seamless connectivity for all your devices.
The hAP ac lite TC provides AC750 Wi-Fi speeds, with up to 300 Mbps on the 2.4 GHz band (802.11b/g/n, dual-chain) and 433 Mbps on the 5 GHz band (802.11a/n/ac, single-chain). This dual-band capability optimizes performance by allowing devices to connect to the most suitable frequency, reducing interference and improving overall network efficiency for activities like streaming and general browsing.
Equipped with a 650 MHz CPU and 64 MB of RAM, the hAP ac lite TC efficiently handles various networking tasks. It features five 10/100 Mbps Ethernet ports, providing ample wired connections for computers, smart TVs, gaming consoles, and other network devices. A standout feature is the passive PoE-out on port #5, which allows you to power another PoE-compatible device, such as an IP camera or another MikroTik access point, directly from the router, simplifying your cabling.
The “TC” in its name refers to its universal tower case design, enabling flexible placement either horizontally on a desktop or vertically as a tower, with an included wall-anchored mounting kit for secure installation. Running MikroTik’s powerful RouterOS (License Level 4), this device offers advanced network management features, including bandwidth shaping, firewall rules, user access control, and support for 3G/4G modems via its USB port, providing a reliable mobile internet backup.
Choose the MikroTik hAP ac lite TC for an affordable, feature-rich, and highly adaptable wireless router that brings robust performance and comprehensive control to your home or small office network.
Specifications
{
“Specifications – Product code”: “RB952Ui-5ac2nD-TC”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9531”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “650 MHz”,
“Specifications – Switch chip model”: “QCA9531”,
“Specifications – Dimensions”: “34 x 119 x 98mm”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS”,
“Specifications – Size of RAM”: “64 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 100’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-30°C to 70°C”,
“Specifications – Suggested price”: “$59.00”,
“Wireless capabilities – Wireless 2.4 GHz Max data rate”: “300 Mbit/s”,
“Wireless capabilities – Wireless 2.4 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless capabilities – Antenna gain dBi for 2.4 GHz”: “1.5”,
“Wireless capabilities – Wireless 2.4 GHz chip model”: “QCA9531”,
“Wireless capabilities – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Wireless capabilities – Wireless 5 GHz Max data rate”: “433 Mbit/s”,
“Wireless capabilities – Wireless 5 GHz number of chains”: “1”,
“Wireless capabilities – Wireless 5 GHz standards”: “802.11a/n/ac”,
“Wireless capabilities – Antenna gain dBi for 5 GHz”: “2”,
“Wireless capabilities – Wireless 5 GHz chip model”: “QCA9887”,
“Wireless capabilities – Wireless 5 GHz generation”: “Wi-Fi 5”,
“Wireless capabilities – WiFi speed”: “AC750”,
“Ethernet – 10/100 Ethernet ports”: “5”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB type A”,
“Peripherals – Max USB current (A)”: “1”,
“Powering – Number of DC inputs”: “2 (DC jack, PoE-IN)”,
“Powering – DC jack input Voltage”: “10-28 V”,
“Powering – Max power consumption”: “20 W”,
“Powering – Max power consumption without attachments”: “8 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “10-28 V”,
“PoE-out – PoE-out ports”: “Ether5”,
“PoE-out – PoE out”: “Passive PoE”,
“PoE-out – Max out per port output (input 18-30 V)”: “500 mA”,
“PoE-out – Max total out (A)”: “500 mA”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “IP20”,
“Wireless specifications – 1MBit/s”: “22”,
“Wireless specifications – 11MBit/s”: “22”,
“Wireless specifications – 6MBit/s”: “23”,
“Wireless specifications – 54MBit/s”: “20”,
“Wireless specifications – MCS0”: “23”,
“Wireless specifications – MCS7”: “19”,
“Wireless specifications – MCS9”: “16”
}
