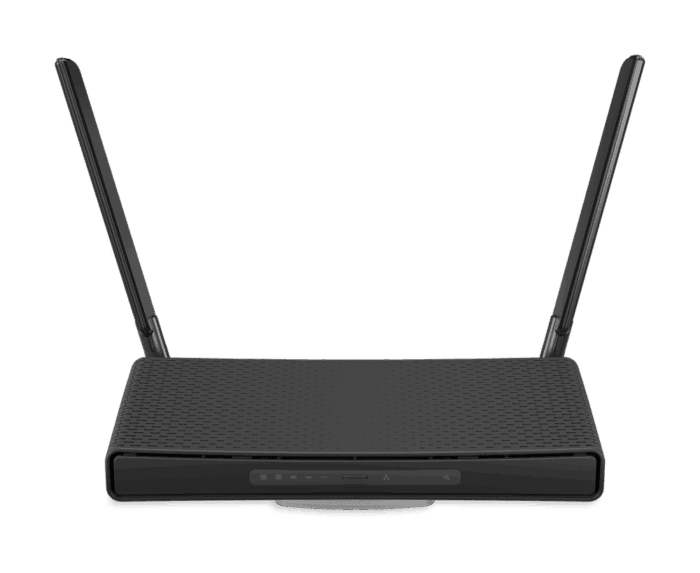

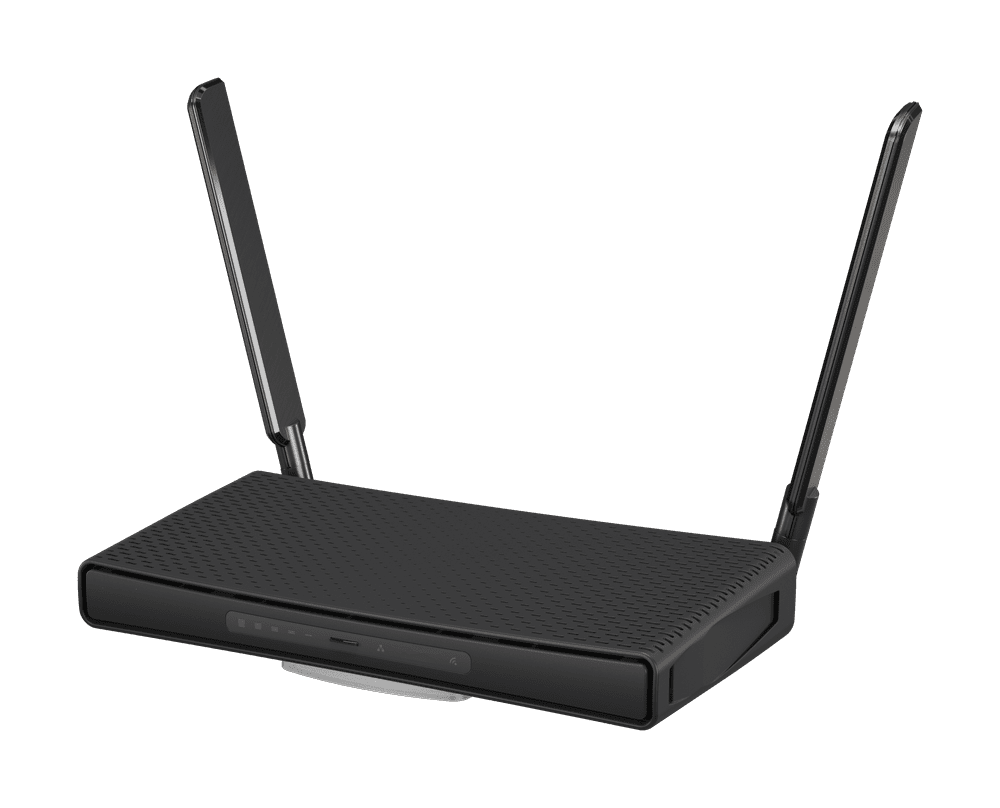

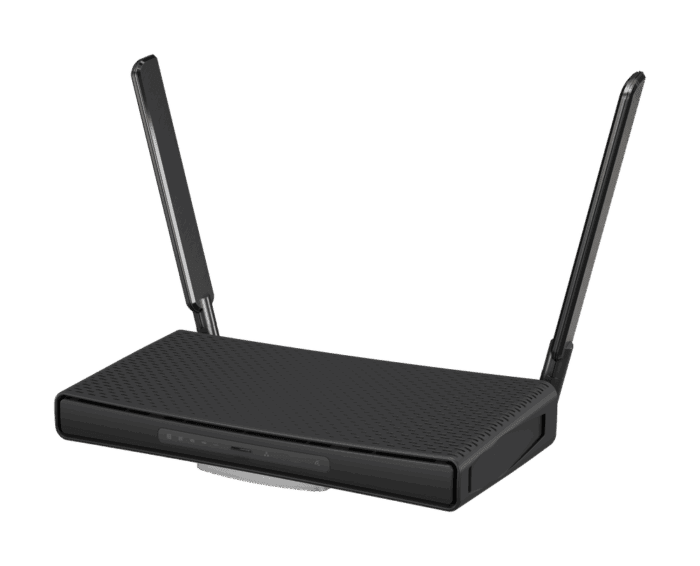

Unleash the full potential of your home network with the MikroTik hAP ax³, MikroTik’s top-of-the-line Wi-Fi 6 access point, available at Bridge Technologies. This device offers unparalleled processing power and wireless coverage for every corner of your home.
The hAP ax³ is equipped with a modern quad-core ARM CPU running at 1.8 GHz. This ensures seamless performance for demanding tasks. These include complex firewall rules, IPsec hardware encryption, Wireguard, and advanced routing. With 1GB of RAM and 128MB NAND storage, it handles multiple concurrent activities effortlessly.
Experience next-generation wireless speeds. The hAP ax³ delivers up to 90% higher speed in the 2.4 GHz spectrum (574 Mbps) and up to 40% higher speed in the 5 GHz spectrum (1200 Mbps). Potent external antennas provide up to 5.5 dBi gain. This eliminates the need for Wi-Fi boosters.
Connectivity is robust with four Gigabit Ethernet ports and an ultra-fast 2.5 Gigabit Ethernet port. PoE-in and PoE-out capabilities offer flexible power options. The device also includes a speedy USB 3 port for external storage or an LTE modem. Running RouterOS v7 with WPA3 encryption, the hAP ax³ ensures advanced security and limitless configuration possibilities.
Specifications
{
“Specifications – Product code”: “C53UiG+5HPaxD2HPaxD”,
“Specifications – Architecture”: “ARM 64bit”,
“Specifications – CPU”: “IPQ-6010”,
“Specifications – CPU core count”: “4”,
“Specifications – CPU nominal frequency”: “auto (864 – 1800) MHz”,
“Specifications – Switch chip model”: “IPQ-6010”,
“Specifications – RouterOS license”: “6”,
“Specifications – Operating System”: “RouterOS v7”,
“Specifications – Size of RAM”: “1 GB”,
“Specifications – Storage size”: “128 MB”,
“Specifications – Storage type”: “NAND”,
“Specifications – MTBF”: “Approximately 200’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 70°C”,
“Specifications – IPsec hardware acceleration”: “Yes”,
“Specifications – Suggested price”: “$139.00”,
“Wireless capabilities – Wireless 2.4 GHz Max data rate”: “574 Mbit/s”,
“Wireless capabilities – Wireless 2.4 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 2.4 GHz standards”: “802.11b/g/n/ax”,
“Wireless capabilities – Antenna gain dBi for 2.4 GHz”: “3.3”,
“Wireless capabilities – Wireless 2.4 GHz chip model”: “QCN-5022”,
“Wireless capabilities – Wireless 2.4 GHz generation”: “Wi-Fi 6”,
“Wireless capabilities – Wireless 5 GHz Max data rate”: “1200 Mbit/s”,
“Wireless capabilities – Wireless 5 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 5 GHz standards”: “802.11a/n/ac/ax”,
“Wireless capabilities – Antenna gain dBi for 5 GHz”: “5.5”,
“Wireless capabilities – Wireless 5 GHz chip model”: “QCN-5052”,
“Wireless capabilities – Wireless 5 GHz generation”: “Wi-Fi 6”,
“Wireless capabilities – WiFi speed”: “AX1800”,
“Ethernet – 10/100/1000 Ethernet ports”: “4”,
“Ethernet – Number of 1G Ethernet ports with PoE-out”: “1”,
“Ethernet – Number of 2.5G Ethernet ports”: “1”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB 3.0 type A”,
“Peripherals – Max USB current (A)”: “1.5”,
“Powering – Number of DC inputs”: “2 (PoE-IN, DC jack)”,
“Powering – DC jack input Voltage”: “12-28 V”,
“Powering – Max power consumption”: “38 W”,
“Powering – Max power consumption without attachments”: “15 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “18-28 V”,
“PoE-out – PoE-out ports”: “Ether 1”,
“PoE-out – PoE out”: “Passive PoE”,
“PoE-out – Total output power”: “15”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “20”,
“Other – CPU temperature monitor”: “Yes”,
“Other – Mode button”: “Yes”,
“Wireless specifications – 1MBit/s”: “27”,
“Wireless specifications – 11MBit/s”: “27”,
“Wireless specifications – 6MBit/s”: “28”,
“Wireless specifications – 54MBit/s”: “26”,
“Wireless specifications – MCS0”: “28”,
“Wireless specifications – MCS7”: “25”,
“Wireless specifications – MCS9”: “23”,
“Wireless specifications – MCS11”: “20”
}
