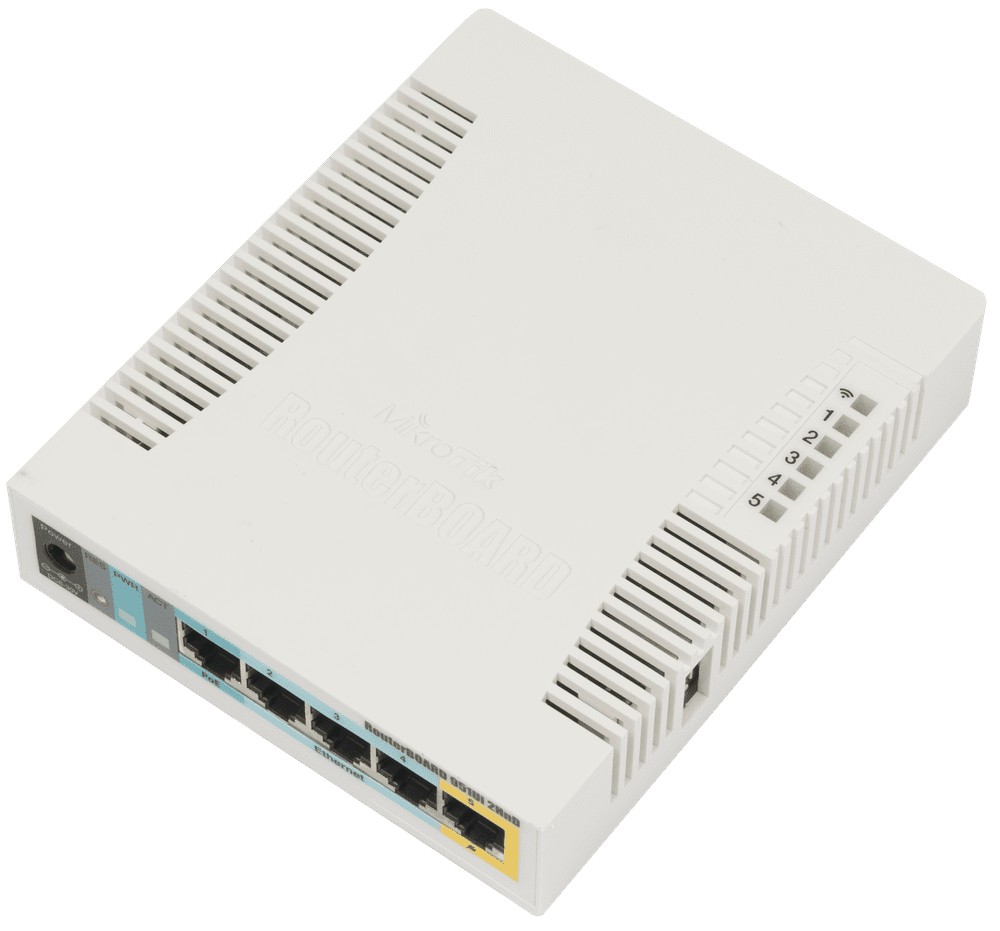

Elevate your small office or home network with the MikroTik RB951Ui-2HnD, a versatile wireless SOHO access point available at Bridge Technologies. This compact device combines robust routing capabilities with a high-power 2.4 GHz wireless access point, all within a durable plastic case.
The RB951Ui-2HnD features a 600MHz Atheros AR9344 CPU and 128MB of RAM, providing ample processing power for stable and efficient network operations. It comes equipped with five 10/100 Ethernet ports, allowing for reliable wired connections to multiple devices.
For wireless connectivity, it offers a high-power 2.4GHz 802.11b/g/n dual-chain wireless AP with integrated 2.5dBi antennas, delivering up to 300 Mbps data rates. This ensures strong Wi-Fi coverage for your wireless clients.
A key feature is the PoE output function on Ethernet port 5, which can power other PoE-capable devices (up to 500mA) with the same voltage supplied to the unit. This simplifies deployments by reducing the need for additional power adapters. The device also includes a USB 2.0 port for connecting external storage or 3G/4G modems, enhancing its versatility.
Specifications
{
“Specifications – Product code”: “RB951Ui-2HnD”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “AR9344”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “600 MHz”,
“Specifications – Dimensions”: “113x138x29mm”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS”,
“Specifications – Size of RAM”: “128 MB”,
“Specifications – Storage size”: “128 MB”,
“Specifications – Storage type”: “NAND”,
“Specifications – MTBF”: “Approximately 100’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-20C +60C”,
“Specifications – Suggested price”: “$59.95”,
“Wireless capabilities – Wireless 2.4 GHz Max data rate”: “300 Mbit/s”,
“Wireless capabilities – Wireless 2.4 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless capabilities – Antenna gain dBi for 2.4 GHz”: “2.5”,
“Wireless capabilities – Wireless 2.4 GHz chip model”: “AR9344”,
“Wireless capabilities – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Ethernet – 10/100 Ethernet ports”: “5”,
“Peripherals – Number of USB ports”: “1”,
“Peripherals – USB Power Reset”: “Yes”,
“Peripherals – USB slot type”: “USB type A”,
“Peripherals – Max USB current (A)”: “1”,
“Powering – Number of DC inputs”: “2 (DC jack, PoE-IN)”,
“Powering – DC jack input Voltage”: “8-30 V”,
“Powering – Max power consumption”: “24 W”,
“Powering – Max power consumption without attachments”: “7 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “8-30 V”,
“PoE-out – PoE-out ports”: “Ether5”,
“PoE-out – PoE out”: “Passive PoE”,
“PoE-out – Max out per port output (input 18-30 V)”: “500 mA”,
“PoE-out – Max total out (A)”: “500 mA”,
“Certification & Approvals – Certification”: “CE, FCC, IC, EAC, ROHS”,
“Certification & Approvals – IP”: “IP20”,
“Other – Beeper”: “Yes”,
“Wireless specifications – 6MBit/s”: “30”,
“Wireless specifications – 54MBit/s”: “25”,
“Wireless specifications – MCS0”: “30”,
“Wireless specifications – MCS7”: “23”
}
