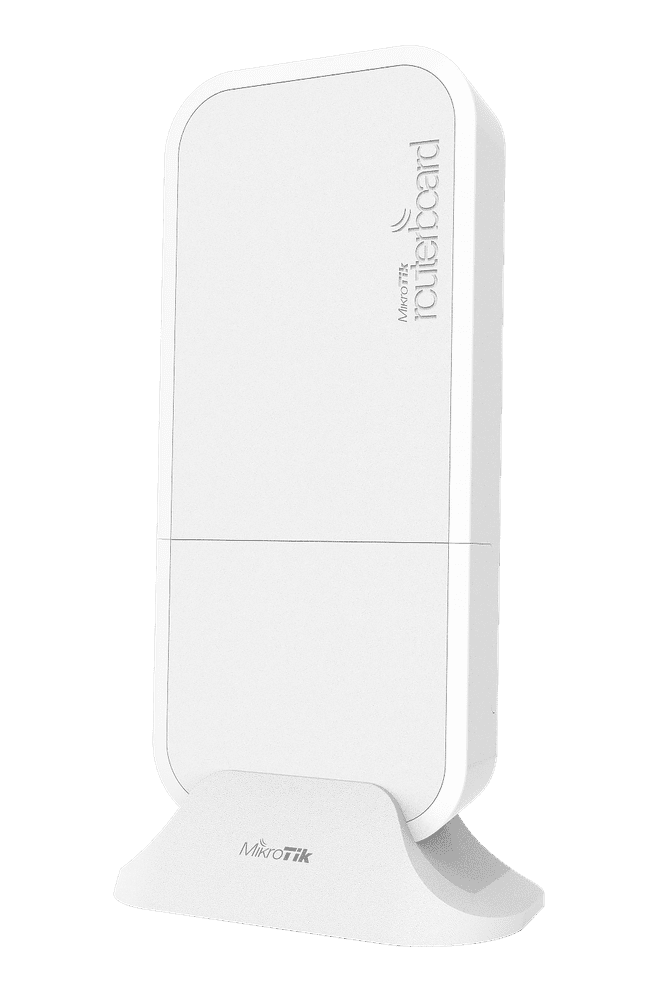

Expand your wireless network to challenging environments with the MikroTik wAP R, a compact and weatherproof access point available at Bridge Technologies. This versatile device is designed for reliable connectivity both indoors and outdoors.
The wAP R operates on the 2.4 GHz frequency, providing Wi-Fi 4 (802.11b/g/n) wireless connectivity with speeds up to 300 Mbps. It features a miniPCI-e slot and integrated LTE antennas, allowing you to install your own LTE modem (not included) for mobile broadband access. This makes it ideal for locations where traditional wired internet is unavailable.

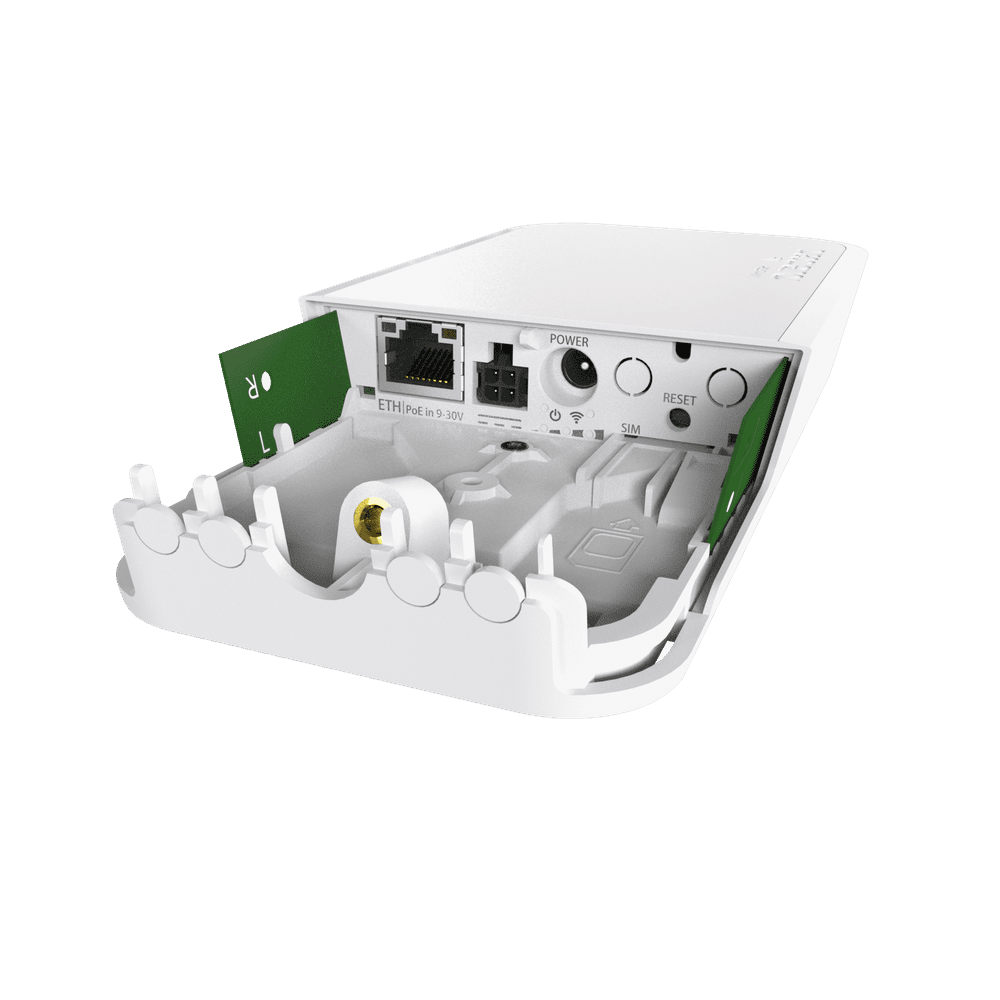

Equipped with a 650MHz CPU and 64MB RAM, the wAP R handles essential networking tasks efficiently. It includes one 10/100 Ethernet LAN port for wired devices. The device offers multiple powering options, including 9-30V PoE-in via the Ethernet port, a DC jack, and an automotive connector, making it highly adaptable for use in cars, buses, or trains.
Specifications
{
“Specifications – Product code”: “RBwAPR-2nD”,
“Specifications – Architecture”: “MIPSBE”,
“Specifications – CPU”: “QCA9531”,
“Specifications – CPU core count”: “1”,
“Specifications – CPU nominal frequency”: “650 MHz”,
“Specifications – Dimensions”: “185x85x30 mm”,
“Specifications – RouterOS license”: “4”,
“Specifications – Operating System”: “RouterOS”,
“Specifications – Size of RAM”: “64 MB”,
“Specifications – Storage size”: “16 MB”,
“Specifications – Storage type”: “FLASH”,
“Specifications – MTBF”: “Approximately 100’000 hours at 25C”,
“Specifications – Tested ambient temperature”: “-40°C to 60°C”,
“Specifications – Suggested price”: “$89.00”,
“Wireless capabilities – Wireless 2.4 GHz Max data rate”: “300 Mbit/s”,
“Wireless capabilities – Wireless 2.4 GHz number of chains”: “2”,
“Wireless capabilities – Wireless 2.4 GHz standards”: “802.11b/g/n”,
“Wireless capabilities – Antenna gain dBi for 2.4 GHz”: “2”,
“Wireless capabilities – Wireless 2.4 GHz chip model”: “QCA9531”,
“Wireless capabilities – Wireless 2.4 GHz generation”: “Wi-Fi 4”,
“Ethernet – 10/100 Ethernet ports”: “1”,
“Peripherals – Number of SIM slots”: “1 Modem (Mini SIM)”,
“Peripherals – MiniPCI-e slots”: “1”,
“Powering – Number of DC inputs”: “3 (PoE-IN, DC jack, Automotive)”,
“Powering – DC jack input Voltage”: “9-30 V”,
“Powering – Automotive input Voltage”: “9-30 V”,
“Powering – Max power consumption”: “6 W”,
“Powering – Cooling type”: “Passive”,
“Powering – PoE in”: “Passive PoE”,
“Powering – PoE in input Voltage”: “9-30 V”,
“Certification & Approvals – Certification”: “CE, FCC, IC, E-MARK, EAC, ROHS”,
“Certification & Approvals – IP”: “IP54”,
“Other – PCB temperature monitor”: “Yes”,
“Other – Voltage Monitor”: “Yes”,
“Wireless specifications – 1MBit/s”: “22”,
“Wireless specifications – 11MBit/s”: “22”,
“Wireless specifications – 6MBit/s”: “20”,
“Wireless specifications – 54MBit/s”: “18”,
“Wireless specifications – MCS0”: “20”,
“Wireless specifications – MCS7”: “16”
}
